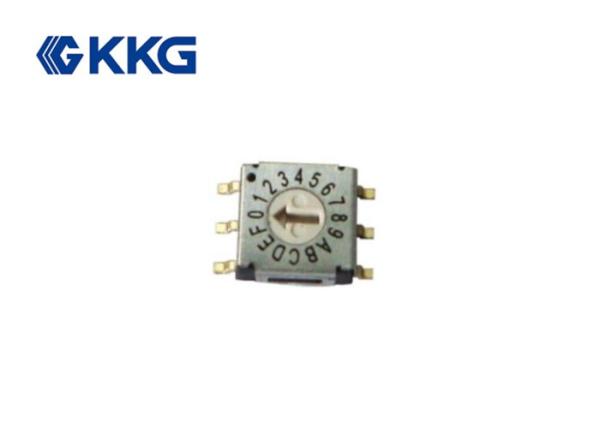

    SMD Vertical Coded Rotary Switch , 20 Amp Rotary Switch 10 Gears

    Ask Lasest Price
    Brand Name : KKG
    Model Number : R7A
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    SMD Vertical Coded Rotary Switch , 20 Amp Rotary Switch 10 Gears

    IP67 10 Gears SMD Vertical Rotary Code Switch for Switching: 5VDC 20mA (Min. AC/DC 20mA)
    Specifications

    • Contact Rating

    Switching: 5VDC 100mA (Min. AC/DC 20mV 1 卩A)

    Non Switching: Max. 50VDC 100mA

    • Contact Resistance: 100mΩMax

    • Insulation Resistance: 1,000MΩMin. at 100VDC

    • Dielectric Strength: 250VAC for 1 minute

    • Operating Force: 2N Max.

    • Life: 10,000 Steps

    • Operating Temperature:

    -40'O~+85<C

    :-40~+125(Reflow Soldering)

    • Storage Temperature: -40'O~+85<C

    • Wave Soldering: 270X3 5 Sec. Max.

    • Reflow Soldering: 260°C 10-30 Sec. Max.

    • Hand Soldering: 350Q 3 Sec. Max


    10 positions


    ItemsStandard
    Operating temperature range-40'O~+85<C
    Electrical performanceSwitch Rating5VDC 100mA
    Non-Switch Rating50VDC 100mA
    DurabilityLifetime10,000 Steps
    Mechanical performanceOperating force2N Max.

    Code Format


    No.of positions(16 positions)
    (10 positions)
    (08 positions
    Position0123456789ABcDEF
    CodeReal code8
    4
    2
    1
    Complem- entary code8
    4
    2
    1

    Package


    P/NNo. Of PoleQuantity per Tube
    R7_H08/10/1670
    R7_V/Y08/10/1670
    R7_S/J08/10/1670
    P/NNo. Of PoleQuantity per Tube
    R7_0S/J-R08/10/161,500

    Features


    • Miniature Size, with Stainless Steel cover.

    • Sealed Construction; No Tape Seal Required.

    • Center Common terminal pins location.

    • Surface Mount or Thru-Hole Style.

    • Tube or Tape and Reel Packaging.

    • Octal, BCD, and Hexadecimal Code.

    • In Real or Complement.

    • Standard and Right Angle Mount

    • Flush or Extended Actuators.

    • Standard: Gold-Plated type

    • Waterproof meet IP67.
