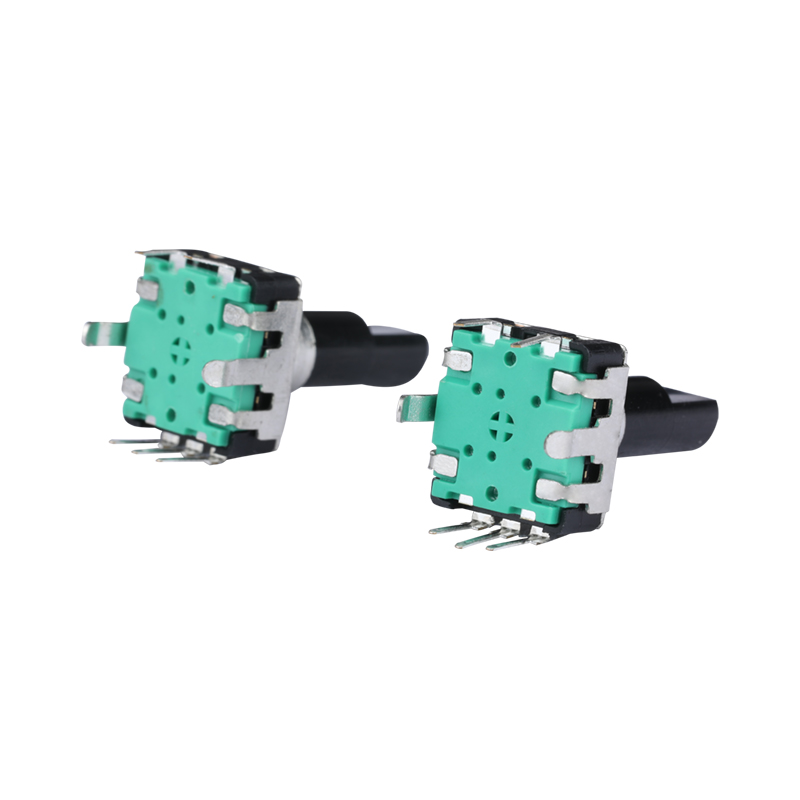

    Encoder Switch,Rotary Shaft Encoder Switch , 360° 24 Pulse Encoder ,Incremental Encoder Switch,Coded Rotary Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : EC1224S-4
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    Encoder Switch,Rotary Shaft Encoder Switch , 360° 24 Pulse Encoder ,Incremental Encoder Switch,Coded Rotary Switch

    Hollow Shaft Rotary Encoder With Switch , 15.5mm Encoder Switch ,Coded Rotary Switch , Incremental Encoder


    Company Information

    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components r & D and manufacturing company, its products are mainly used in consumer electronics, home entertainment products, mobile communications products, automotive electronics, medical equipment products. By the customer's affirmation. Since the establishment of the company in 1998, the company has been with the development of electronic components. During this period, the company has won many awards such as ISO9001 and quality management industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment of fierce domestic competition, we protect our leadership position and reputation in order to meet new challenges.



    Provide solutions for electronic switch components in the automotive industry. The products have been approved by the International Automotive Working Group and have been assessed by the world's leading certification body to obtain IATF16949 management certification.


    Product Description


    Mechanical characteristics
    Total rotational angle360°
    Click torque20-100gf.cm
    No. Of click

    20 click step angle:18±2°

    30 click step angle:12±2°

    Bushing-nut tightening torque7.0kgf.cm Min
    Shaft play in rotational wobble5°Max
    Electrical characteristics
    ratingDC 5V,A,B lead 5mA Max, C lead 10mA Max
    resolution20 pules/360° 15pules/360°
    Insulation resistance100MΩMin at DC50V
    Dielectric1 minute at AC 300V
    Endurance characteristics
    Rotational life30000±200 cycles≤100gf.cm
    Storage temperature range-40℃~+85℃
    Operating temperature range-30℃~+80℃
    Soldering characteristic

    Dipping in soldering≤206℃±5°,within 3S

    Solder by hand≤300℃±5°, within 3S


    Product Display



    Packaging & Delivery


    Lead Time:


    Quantity(Pieces)1 - 10001001 - 10000>10000
    Est. Time(days)1015To be negotiated

    FAQ


    Q: Can I get free sample for test before place an order?

    A: Yes, we offer FREE SAMPLE for you test.


    Q: Does your company accept small order?

    A: Yes, we accept small trial order.


    Q: Does your company accept online order?

    A: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
