    Encoder Switch ,10000 Cycles B100k For Potentiometer Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder

    Ask Lasest Price
    Brand Name : KKG
    Model Number : WH111G-2D
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    Encoder Switch ,10000 Cycles B100k For Potentiometer Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder

    Encoder Switch ,10000 Cycles B100k For Potentiometer Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder


    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components r & D and manufacturing company, its products are mainly used in consumer electronics, home entertainment products, mobile communications products, automotive electronics, medical equipment products. By the customer's affirmation. Since the establishment of the company in 1998, the company has been with the development of electronic components. During this period, the company has won many awards such as ISO9001 and quality management industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment of fierce domestic competition, we protect our leadership position and reputation in order to meet new challenges.



    Our Advantages


    1.KKG factory with high standard in product quality control;

    2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.

    3.Our customers from all over the world, like US, UK,Japan, Germany, Argentina, Mexico, Singapore

    4.One-stop Service for Customers


    Product Description


    Encoder is one of our main products, there are many series: metal shaft encoder, insulated shaft encoder, hollow shaft encoder, air shaft encoder, dial encoder, coding switch


    Advantages of rotary coding switch: Rotary encoder has rotate 360 degrees, the adjusting range is extensive, adjust the speed variable, controlled, lower noise, long life advantages, rotary encoder function similar to the potentiometer to some extent, but its structure, working principle and use method is totally different from ordinary potentiometer, in the application of digital circuit has a lot of, such as the size of the volume changes, motor speed, etc.


    Main functions of encoder: adjust temperature, adjust time, adjust volume, function selection


    Product Specification


    Electrical characteristics:
    Full resistance range:500Ω--1MΩ
    Allowable deviation of resistance value:±20%
    Law of resistance value:A,B,C,
    Rated power:0.025W(70℃) 0.05W(50℃)
    Maximum service voltage:50V AC 20V DC
    Insulation resistance:≥100MΩ (250V DC)
    Withstand voltage:AC 250V (1min)
    Rotational noise:≤47mv
    Terminal resistance:R.≤50Ω
    Mechanical properties:
    Full turning Angle:300º±10º
    Turning moment:20---100gf·cm
    Stop moment:3kgf·cm Max
    Tensile strength of shaft:4kgf·cm Max
    Angle of shaft:Less than 0.35 mm
    Service life:10000 cycles
    Solderability:260 C±5 C, duration 2S± 0.5s, solder coverage greater than 95%
    Resistance value marking method:Nominal value: 50 k Ω, marking way: 503, or 54
    Working temperature:-10ºC~+70ºC

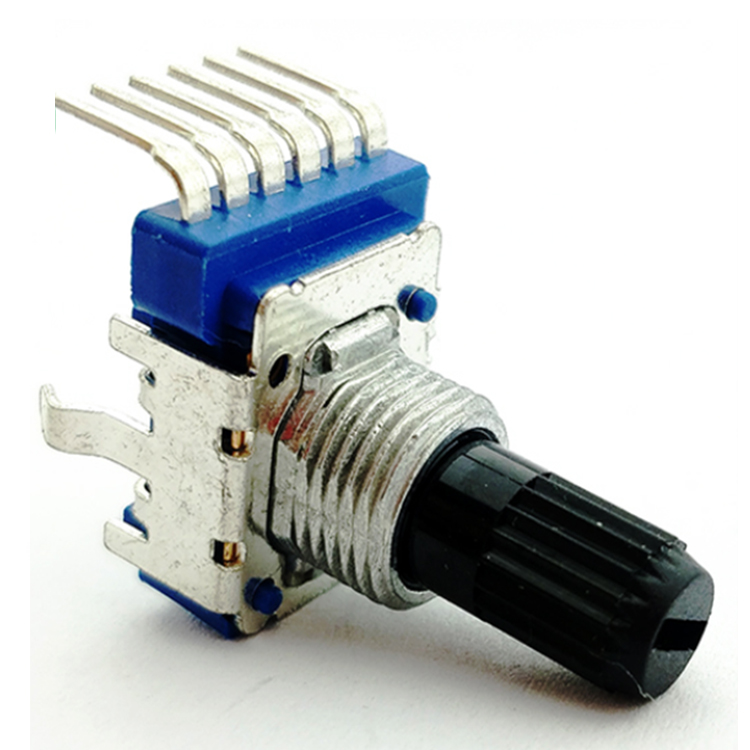

    Product Display

    Product Drawing


    FAQ


    Q: what is your MOQ for this item?

    A: MOQ is 100, but always flexible.


    Q: Can I get some samples?

    A: Sure, Sample order is available.


    Q: what about lead time?

    A: 7-10 days after deposit received.


    Q: terms of payment?

    A: Trade Assurance, T/T, credit card, western union, cash, Money Gram


    Q: My item was damaged in shipping?

    A: Our parts are carefully packaged to prevent damage in shipping.
