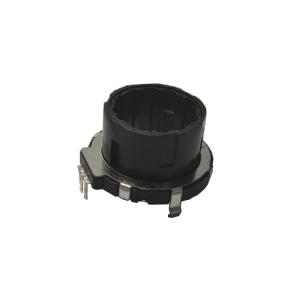

    Hollow Shaft 15 Pulse Waterproof Coded Rotary Switch

    Ask Lasest Price
    Brand Name : KKG
    Model Number : EC2815
    Certification : Rosh/CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    Hollow Shaft 15 Pulse Waterproof Coded Rotary Switch

    Hollow Shaft Encoder Rotary 15 Pulse , Encoder Switch , Waterproof Coded Rotary Switch ,Rotary Encoder Series


    Encoder is a sensor that outputs physical quantity information such as Angle, length and speed by digital quantity 0 and 1 encoding. Because of its high precision, large range measurement, fast response and digital output characteristics; Small size, light weight, compact structure, easy installation, simple maintenance, reliable work and other excellent characteristics, so become today's industrial control system is favored and an indispensable part.


    1) According to its measurement method, there are linear encoder and rotary encoder.

    2) According to its output signal, there are incremental encoder and absolute encoder.

    3) According to its internal reaction elements, there are photoelectric encoder, magnetic grid encoder.

    4) It is divided into mechanical mechanism form, bearing encoder and bearing less encoder.

    Encoders can be roughly divided into commercial grade, chip grade, economic grade, standard industrial grade and all kinds of extra industrial application grade according to the application environment. Commercial grade and chip grade: The encoder is used in printers and magnetic card machines. Chip level: the price is very low, but no shell or simple shell, power supply and signal only simple disposal, suitable for manufacturers of secondary circuit development.

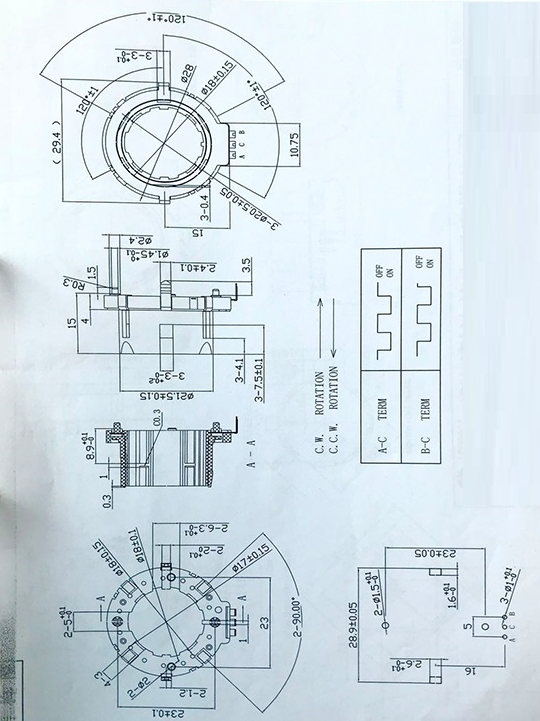

    Product Description


    Mechanical characteristics
    Total rotational angle360°(endless)
    Click torque20-150gf.cm
    No. Of click30 click step angle:12±2°
    Bushing-nut tightening torque8.0kgf.cm Min
    Shaft play in rotational wobble5°Max
    Shaft play in axial direction0.4mm Max
    Shaft wobble0.6mm Max
    ratingDC 5V,A,B lead 5mA Max, C lead 10mA Max
    resolution15 pules/360°
    Insulation resistance100MΩMin at DC250V
    Dielectric1 minute at AC 300V
    Phase differenceT1.T2. T3.T4≥0.08T
    Sliding noiseT1,t3≤3mS t2≤2mS
    Endurance characteristics
    Rotational life30000±200 cycles≤100gf.cm
    Storage temperature range-40℃≈+85℃
    Operating temperature range-30℃≈+80℃
    Soldering characteristic

    Dipping in soldering≤206℃±5°,within 3S

    Solder by hand≤300℃±5°, within 3S


    Appliance

    Main functions of encoder: adjust temperature, adjust time, adjust volume, function selection


    Encoders are mainly used in microwave ovens, washing machines and other household appliances and multimedia power amplifiers



    FAQ


    Q: Can I get free sample for test before place an order?

    A: Yes, we offer FREE SAMPLE for you test.


    Q: Does your company accept small order?

    A: Yes, we accept small trial order.


    Q: Does your company accept online order?

    A: Yes, we accept Trade Assurance Online Order and Secure Payment Online Order, they will keep you money in safe.
