The LCA341A series is a low-cost tilt switch developed by RION for applications such as level safety alarming and platform level
monitoring. It features an internal relay output circuit, with a
pre-set alarm threshold value. When the platform's inclination
exceeds the set value, the relay outputs a signal (1A drive
current) to activate a solenoid valve hydraulic system, or drive a
buzzer or warning light to ensure platform safety.
The primary function of the LCA341A is to automatically monitor and
alert for changes in the platform's inclination (dual-axis or
single-axis). It is designed with temperature and linearity
compensation, and includes protection against short circuits, high
voltage, and surges. All components meet industrial application
standards.

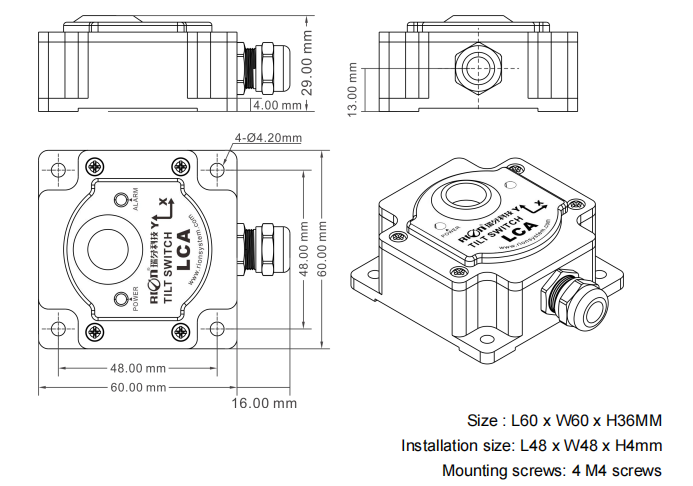

The installation must guarantee the product bottom is parallel to
measured face,and reduce the influence of dynamic and acceleration
to the sensor. This product can be installed horizontally or
mounted vertically (mounted vertically selection is only applicable
to the single axis, and only can do relative measurement , if
absolute measurement the level reference will occur error ), for
installation please refer to the following scheme.
