    HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception

    Ask Lasest Price
    Model Number : HCA526T-WL
    Brand Name : RION
    Supply Ability : 30000 Piece/Pieces per Month
    Price : $450.00/Pieces
    Certification : CE
    • Product Details
    • Company Profile

    HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception

    HCA526T-WL wireless transmission dual-axis tilt sensor wireless data reception​


    PRODUCT INTRODUCTION:

    HCA526T-WL is a wireless transmission dual-axis tilt sensor launched by RION for the industrial field control field. The product is divided into two parts: wireless induction probe and wireless data reception. Both parts have independent receiving antennas. The wireless ISM full-band working frequency is adopted, which conforms to the ISM band communication standard and does not need to apply for frequency points. Carrier frequency is within 400-480MHZ. The communication distance can reach 200 meters in the visible open area. The GFSK modulation mode adopts a high-efficiency forward error correction channel coding technology, and improves the capability of data for resisting burst interference and random interference.

    Features

    • Wide temperature working: -40~+85℃
    • Resolution: 0.001°
    • Water-proof air-plug connector
    • IP67 protection class
    • Highly anti-vibration performance >2000g

    Application:

    • Railway gauge and gauge leveling
    • Precision machine tool level control
    • Geological equipment tilt monitoring
    • Bridge and large monitoring
    • Directional satellite communication antenna elevation measurement

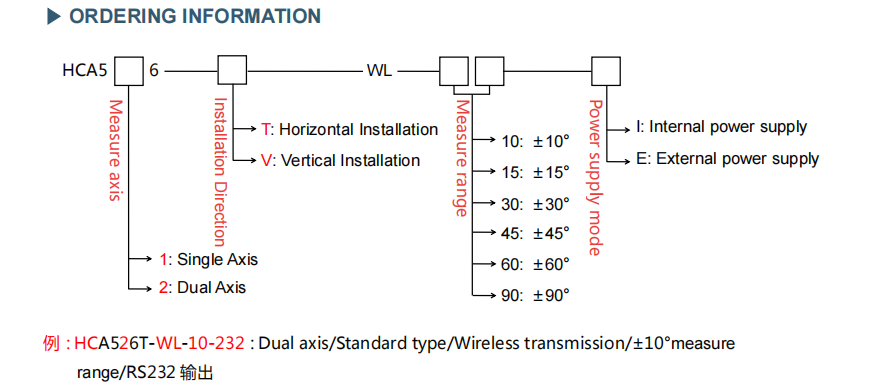

    Ordering information:


    HCA516&526T-WLCONDITIONPARAMETERSUNIT
    Measure range±10±30±60±90°
    Measure axisXYXYXYXY
    Resolution0.0010.0010.0010.001°
    Measure accuracy0.0050.010.020.05°
    Long term stability0.010.020.050.08
    Zero Temp.coefficient-40~85°±0.002±0.002±0.002±0.002°/℃
    Sensitivity temp.coefficient-40~85°≤50≤50≤50≤100ppm/℃
    Power on time0.50.50.50.5S
    Response frequency0.020.020.020.02s
    Output rate5Hz,15Hz,35Hz,50Hz可设置
    output signalRS232/RS485/RS422/TTL/CAN/MODBUS
    EMCAccording to EN61000 and GBT17626
    MTBF≥50000hours/times
    Insulation Resistance≥100MΩ
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection gradeIP67
    CablesStandard 1 meter length, wear-resistant, wide temperature, shielded cable 4 * 0.4mm2 aviation connector
    Weight150g(without cable)



    Wireless receiver size diagram
