1600a 3 Phase Automatic Changeover Switch 1000V Dual Power 100 Amp 2P

Name: 1600a 3 Phase Automatic Changeover Switch 1000V Dual Power 100 Amp 2P
Brand: Ai Power
Price: 1 USD

Ask Lasest Price
Brand Name :	Ai Power
Model Number :	YAT1600
Certification :	CE, ISO
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200 units per month
Delivery Time :	7 to 10 days

Add to Cart

Product Details
Company Profile

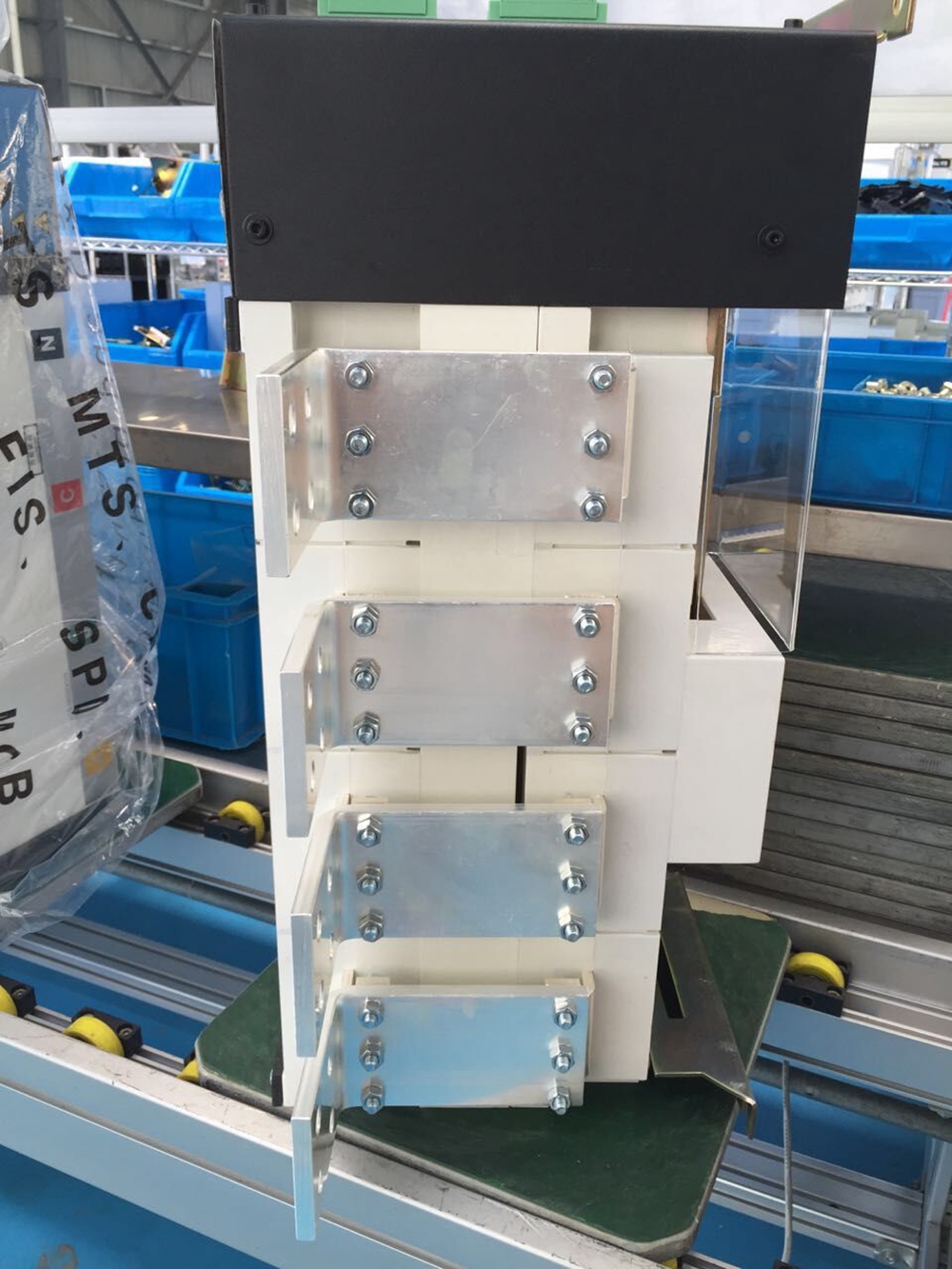

1600a 3 Phase Automatic Changeover Switch 1000V Dual Power 100 Amp 2P

1600a Dual Power Automatic Transfer Changeover Switch 3 Phase CE For Generator

As a critical component of any standby or emergency power system, you’ll want to be sure that you’re using the absolute best transfer switches available in your generator. Whether your power needs are residential, commercial, or industrial, the 2/ 3/ 4 Poles 40AMP to 3200AMP automatic transfer switches from Ai Power are engineered for maximum performance and durability. Call for questions or pricing today!

Performance:

1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute);

2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety.

3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage.

4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop

5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying.

6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference.

7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload

8, High security, high automatization, high retiablility, use life more than 8000times

ATS Specifications:

Manufacturer	XIAMEN AI POWER TECHNOLOGY CO., LTD.
ATS module Brand	Aisikai
ATS model	YAT1600
Capacity(A)	1600
Voltage(V)	400V, 380V, 220V, 480V
Poles	4 poles
Type	Double Power
Type	PC

Agreed thermal current Ith	1600A
Rated insulation voltage Ui	1000V
Rated impulse withstand voltage Uimp	12kV
Rated voltage of the switch copper	AC 440V
Rated work current Ie	1600A
Rated connection capability	10 Ie
Rated breaking capability	10 Ie
Rated conditional short-circuit current	120 kA
Rated short-time withstand current Is	55 kA
Trasfer time 1 - 2 or 2 - 1	1.2 s
Control voltage of the switch motor	DC24V AC220V AC280V

STANDARDS

IEC60947-6-1

GB/T14048.11

ATS Function

The switch is an operation device that various logic order is sent by control circuit board to managing electrical engine, then through gear box, arouses spring store energy, release instantaneously after deceleration. So that can make and break circuit quickly or make circuit transfer. By obvious state can achieve safety insulation.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation; While have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function.
The switch is the best choice of the same kind product with beautiful appearance, novel, simple and direct design, small volume, complete function.

FAQ

1.Are you a factory or trading company?

A: We are a factory.

2.What is the material of your products?

A: Iron, Steel, plastic, etc.

3.How about quality control in your factory?

A: AI people are always paying great attentions to quality controlling from the beginning to the end.

4.How about your guarantee?

A: Our warranty period is 1 year or 1000 running hours, whichever comes first.
