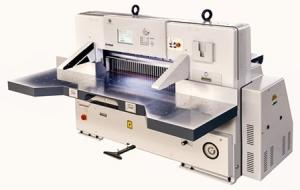

ECOO-1150DH Paper Cutting Machine is used to cut the printing paper of various
kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal,etc.
it adopts 10 inch touch screen, color liquid crystal touch screen. It is equipped with imported
whole set computer controlling system. The computer can do
self-diagnose while malfunction and do self-protection while wrong
operation.ECOO
1.Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology.
Equipped with combined hydraulic valve, double hydraulic
controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
2.Double Guide Device: the paper pusher adopts double imported linear guide and roller
ball screw., which can prolong the machine use life, and can bear the high speed
paper delivering.
3. Photo cell: it is equipped with a photo cell safety protection device.
4.Over load protection device; convenient knife changing device.
5.Worktable chrome treatment: the worktable and side board surface are all adopted chrome
treatment to improve the precision and quality of the machine.
6.Air ball: air balls are installed in the worktable. The paper sending work
will be easy and accurate.
7.Cutting controller:both of the user's hands operate the machine. It can cut paper in
one time.
8. Electronic knife lock:when the machine is malfunction, the electronic knife lock will
lock the knife, and the machine will stop cutting to protect
safety.
Main Technical Parameters
| Specification | Units | ECOO1150DH-10 |
| Max cutting width | cm/inch | 115/45.3 |
| Max cutting length | cm/inch | 116/45.7 |
| Max cutting height | cm/inch | 16.5/6.5 |
| Width of machine | With sidetable | cm | 267 |
| Without sidetable | cm | 237 |
| Main motor | kw | 4 |
| Weight | kg | 3300 |
| Voltage | V | 365-395 |
| Cutting speed | Cycles/min | 45 |
| Packing size | L×W×H (cm) | 260×154×203 |
| Total width of machine | cm | 267 |
| Total length of machine | cm | 261 |
| Total height of machine | cm | 163 |
| The length of side table | cm | 70 |
| The width of groundsill of machine foot | cm | 60 |
| Clamp pressure | Min | N | 200 |
| Max | N | 40000 |
| Knife thickness | cm | 139x16x1.37 |
| Grinding reserve | cm | 6 |
| Min cut | without false clamp | cm/inch | 3/1.2 |
| with false clamp | cm/inch | 10/3.9 |
| Cutting speed | Cycles/min | 45 |
Computer function:
1 Touch screen input.
2 Automatic operation
3 Semi-automatic operation
4 Manual operation
5 Demonstration
6 Automatic precise position
7 Manual position
8 Paper sender moves forwards and back wards.
9 Paper sender automatically accelerant or decelerate
10 Compulsory new direction
11 Mandatory stop sending paper
12 Mandatory stop cutting
13 Air pump works
14 Manual air blow control
15 Automatic seek origin
16 Automatically clear the origin error
17 Personalized programming mode
18 Division
19 Isometry
20 Insert cutting manual
21 Program browse
22 Chinese and English
23 Units change
24 Time
25 Skip cutting
26 Micro adjustment
27 Self-diagnose malfunction
28 Animate machine working process
29 Operator can set password for starting the machine
30 Count cutting datum
31 Amend paper shift
32 Sequence label
33 It can save 5000 program files
34 The storage time can reach 300,000 hours
35 Adjust the paper-sending speed
36 Safety warning
