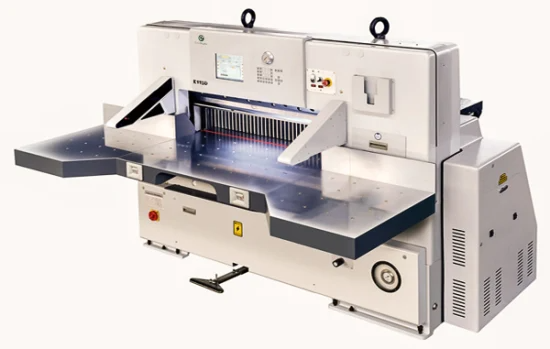

Automatic Program Control 1150mm Width Paper Cutting Machine
Product Description
Usage:
Touch screen Paper Cutting Machine is used to cut the printing
paper of various kinds, paper products, plastic, thin film,
leather, slice of non-ferrous metal, etc.
Touch Screen:
it adopts 10 inch touch screen color liquid crystal touch screen.
It is equipped with imported whole set computer controlling system.
The computer can do self-diagnose while malfunction, and do
self-protection while wrong operation.
Double Hydraulic Device:
the hydraulic system adopts the Germany advanced technology.
Equipped with combined hydraulic valve, double hydraulic
controlling structure, it approves hydraulic device greatly. The
hydraulic device pass CE certificate.
Double Guide Device:
the paper pusher adopts double linear guide and roller ball
screw.,which can prolong the machine use life, and can bear the
high speed paper delivering.
Photo cell:
it is equipped with a photo cell safety protection device.
Over load protection device; convenient knife changing device.
Worktable chrome treatment:
the worktable and side board surface are all adopted chrome
treatment to improve the precision and quality of the machine.
Air ball:
air balls are installed in the worktable. The paper sending work
will be easy and accurate.
Cutting controller:
both of the user's hands operate the machine. It can cut paper in
one time.
Electronic knife lock:
when the machine is malfunction, the electronic knife lock will
lock the knife, and the machine will stop cutting to protect
safety.
Main electric device:
are imported from Germany, French, Switzerland etc.
Specification
Model: ECOO780DH-10
Max cutting width: 78/30.7 cm/inch
Max cutting length: 78/30.7 cm/inch
Max cutting height: 12/4.7 cm/inch
Width of machine with sidetable: 195cm
Width of machine without sidetable: 190cm
Main motor: 3kw
Weight: 1800kg
Voltage: 365-395v
| Main Technical Parameters | Ecoo-780DH-10 |
| Max cutting width | cm/inch | 78/30.7 |
| Max cutting length | cm/inch | 78/30.7 |
| Max cutting height | cm/inch | 12/4.7 |
| Width of machine | With sidetable | cm | 195 |
| Without sidetable | cm | 190 |
| Main motor | kw | 3 |
| Weight | kg | 1800 |
| Voltage | V | 365-395 |
| Cutting speed | Cycles/min | 45 |
| Packing size | L×W×H (cm) | 215×137×185 |
| Total width of machine | cm | 195 |
| Total length of machine | cm | 183 |
| Total height of machine | cm | 151 |
| The length of side table | cm | 50 |
| The width of groundsill of machine foot | cm | 60 |
Configuration
1. Touch screen input
2. Automatic operation
3. Semi-automatic operation
4. Manual operation
5. Demonstration
6. Automatic precise position
7. Manual position
8. Paper sender moves forwards and back wards
9. Paper sender automatically accelerant or decelerate
10. Compulsory new direction
11. Mandatory stop sending paper
12.Mandatory stop cutting
13. air pump works
14 .Manual air blow control
15. Automatic seek origin
16. Automatically clear the origin erro
17. Personalized programming mode
18. Division
19. Isometry
20. insert cutting manual
21. Program browse
22.Chinese and English,other language
23.Units change
24. Time
25. Skip cutting
26. Micro adjustment
27. Self-diagnose malfunction
28. Animate machine working process
29. Operator can set password for starting the machine.
30.. Count cutting datum
31. Amend paper shift
32. Sequence label
33. It can save 200 program files
34. each of them can save 200cuttings' datum.
35. The storage time can reach 300,000 hours
36. Adjust the paper-sending speed
37. Safety warning
