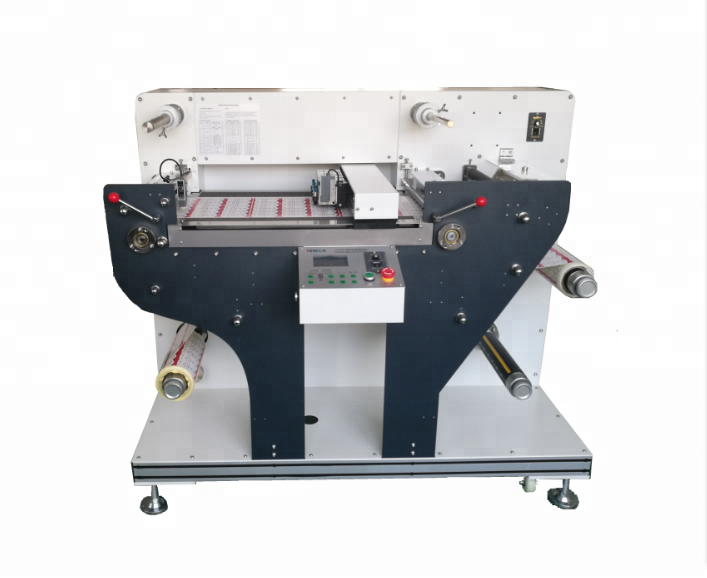

320MM Width Digital Roll to Roll Label Die-Cutter Machine
Model: VD-320
Production Description:
VD-320 Roll To Roll Rotary Label Die Cutter For Sale is developed
for work for all kinds of applications. It can use for short work
or big work, can die-cut all of shapes which you design, delivery
time is very fast, it is your best partner for label printer.
This machine collect to laminate, die-cut, waste-remove, slit and
rewind together, it is not only for die-cutting, but also work for
one slitting machine. The operation is very easy, it apply into
label, hang tag and package widely. We believe that this machine
will be apply more and more lines, only expect you find the
advantage.
Suitable media: adhesive label, PP, plastic film, PET, PVC, white
card paper, art paper and other soft media.
Example of application: adhesive label, hang tag, paper box making.
Features:
1. High Speed, Economical Digital Label Finisher!
2. The traditional label finisher not only designs are complex and
price is very expensive, but also functions are lack. Now, we
research and develop high-speed, easy to operate and
multifunctional VD320 digital label die-cutter system.
3. The high reliable and professional new model digital label
die-cutter are designe for professional label printing company.
4. VD320 digital label die-cutter system is collected laminating,
die-cutting, slitting and rewinding on one, it is the best solution
for label finishing system.
Specification:
| Model | Ecoo-VD320 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-340mm |
| Max.label width | 310mm |
| Min.label length | 10mm |
| Max.label length | 400mm (segmentation get to 1200mm) |
| Cutting speed | max.6m per minute (depend on label shape and size) |
| Cutting blades | (Standard) max.4 pcs |
| Slitting blades | (standard)max.15pcs |
| Cutting tracking | with tungsten steel rotary blades |
| Die-cutting technology | 0.1mm (duplicate) |
| Cutting precision | singe mark or double mark |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-310mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 160*100*136CM |
| Machine weight | 520kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper
cutter |
More Detail:
1.Time Saving, compared with traditional die cutter:
2. No need mould typesetting:
3. Suit for small and medium batch cut:
a, width: 10-310 mm
b, speed: max 6 m/min
c, strength: high precision, time saving.
