Sysolution GPS modem G10

Product Introduction:

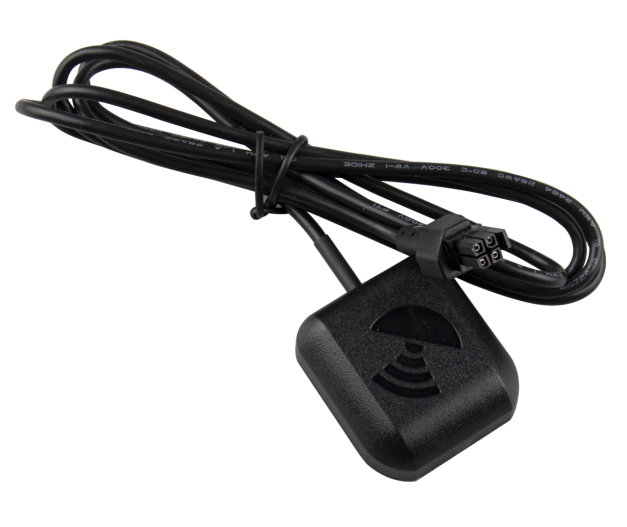

Product Image:

Applications

• UVA (unmanned aerial vehicle)
• DVR ( Digital Video Recording)
• Rear view mirror DVR

Car Tracker

Specifications :​

Power Supply

Regulated power for the G10 is required. The VCC Pin Need a stable DC voltage supply. Power supply ripple must be less than 30mV. The input voltage Vcc should be 3.0V~5.0V, Recommended power supply voltage is 3.3V . maximum current is 45mA. Suitable decoupling must be provided by external decoupling circuitry.

UART Ports

The module supports two full duplex serial channels UART. All serial connections are at 3V CMOS logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 9600bps, however, the user can change the default baud rate to any value from 4800 bps to 115kbps. UART port can be used for firmware upgrade, NMEA output and PMTK proprietary commands input.

Application

The module is equipped with a Molex 2*2Pin connects to your application platform. The G10 module It consists of a MediaTek MT3333 single chip GNSS IC which includes the RF part and Baseband part, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, Also comes with a 0.22F crystal capacitor ,can backup satellite ephemeris about 2 hour.

PIN Definition:

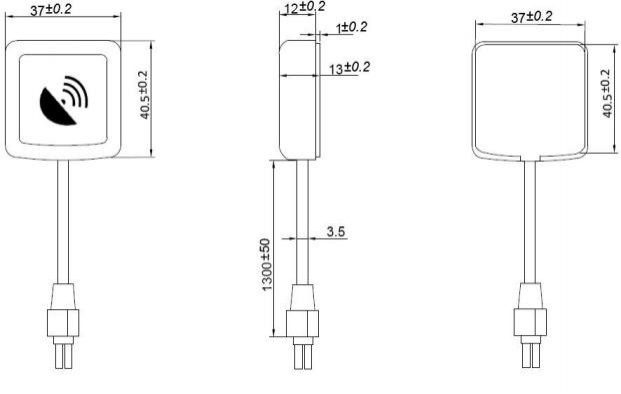

Dimension:

NMEA 0183 Protocol

The NMEA protocol is an ASCII-based protocol, Records start with a $ and with carriage return/line feed. GPS&GLONASS specific messages all start with $GPxxx/$GLxxx where $GNxxx is a three-letter identifier of the message data that follows. NMEA messages have a check sum, which allows detection of corrupted data transfers.

1. Location mode configuration instruction

Single system or dual system positioning mode can be selected through the configuration instructions, configuration instructions such as Table 1.

Table 1: Instruction configuration instructions

The ASIR AGM-41G-33MX130initialization location mode for GPS&GLONASS dual mode.

Output data :$GNRMC. $GNGGA. $GPGSV. $GLGSV. $GPGSA. $GLGSA.$GNGLL. $GNVTG

2. NMEA-0183 data Detailed field

2.1. GGA-Global Positioning System Fixed Data

$xxGGA, 161229.487,3723.2475,N, 12158.3416,W, 1,07, 1.0,9.0,M.0000*18

Table 2: GGA Data Format

Table 2-1: Position Fix Indicators

• GLL-Geographic Position – Latitude/Longitude

$xxGLL , 3723.2475, N, 12158.3416, W, 161229.487, A*2C.

Table 3: GLL Data Format

• GSA-GNSS DOP and Active Satellites

$xxGSA , A, 3, 07, 02, 26,27, 09, 04, 15, , , , , , 1.8, 1.0, 1.5*33.

Table 4: GSA Data Format

Table 4-1: Mode 1

Table 4-2: Mode 2

• GSV-GNSS Satellites in View

$xxGSV , 2, 1, 07, 07, 79,048, 42, 02, 51,062, 43, 26, 36,256, 42, 27, 27, 138,42*71

$xxGSV, 2, 2, 07, 09, 23,313, 42, 04, 19, 159, 41, 15, 12,041, 42*41.

Table 5: GSV Data Format

Name	Example	Units	Description
Message ID	$xxGSV		GSV protocol header
Number of Message	2		Range 1 to 3
Message Number	1		Range 1 to 3
Satellites in View	07
Satellite ID	07		Channel 1(Range 1 to 66)
Elevation	79	egrees	Channel 1(Maximum 90)
Azinmuth	048	egrees	Channel 1(True, Range 0 to 359)
SNR(C/NO)	42	BHz	Range 0 to 99,null when not tracking
…			…
Satellite ID	27		Channel 4(Range 1 to 66)
Elevation	27	egrees	Channel 4(Maximum 90)
Azimuth	138	egrees	Channel 4(True, Range 0 to 359)
SNR(C/NO)	42	BHz	Range 0 to 99, null when not tracking
Check sum	*71
<CR> <LF>			End of message termination

Depending on the number of satellites tracked multiple messages of GSV data may be required.

• RMC-Recommended Minimum Specific GNSS Data

$xxRMC, 161229.487, A, 3723.2475, N, 12158.3416, W, 0. 13,309.62, 120598,, *10

Table 6: RMC Data Format

• VTG-Course Over Ground and Ground Speed

$xxVTG, 309.62, T, M, 0. 13, N, 0.2, K*6E

Table 17: VTG Data Format
