Sysolution IP Broadcasting Extend Function Board R56S

Product Images:

Specifications :​

1. Run indicator: checking the sensor working normal or not;
2. Work together with Sysolution Y50 controller
3. Standard 2 ways of remote power relay switch to control opening and closing of AC connectors to achieve remote hard power outage;
4. Maximum support 4 ways of power voltage measurements.
5. Standard smoke, door open/close sensors interfaces

Description
No.	Type
①	10PIN interface: Microphone

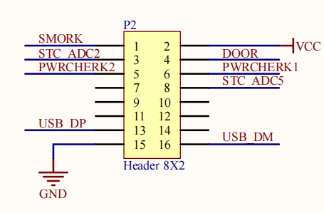

②	16PIN interface: connecting smoke, ADC measure, door open/close, USB
③	Power interface: 12V power supply
④	4 ways of power voltage measurement
⑤	3.5mm audio input
⑥	Amplifier audio output port
⑦	Door open / close sensor interface
⑧	smoke modem
⑨	microphone

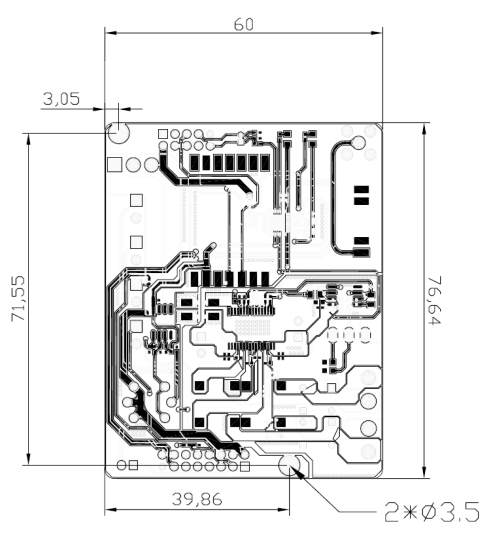

Dimension:

Cautions:

1. Pay attention to waterproof ;
2. Try not to contact the chip and pin to prevent electrostatic damage.
