Sysolution Electric Energy Statistics Senor RM1275

Product Introduction:

Functions & Features:

1. Single module can achieve the collection of single-phase AC parameters, including voltage, current, power, power factor, frequency, electrical energy, temperature multiple electrical parameters, which provide overall information.
2. Adopt industrial-grade special power metering SOC chip, with high measurement accuracy.
3. Standard 485 communication, communication port with ESD protection, communication protocol supports DL/T 645-2007 and MODBUS-RTU dual statute.
4. Flip over and restart the measurement after the electricity is fully stored, and the electricity data is protected by power down.
5. Adopt current transformer with aperture Φ12.8mm, user can use Cable lug, which is convenient for user.
6. When the load uses electricity, the PF pin will output the corresponding pulse. This pin can also be used for the calibration bench to check the power measurement accuracy of the metering module through pulse acquisition.
7. the product has obtained the test report of the meteorology institute.

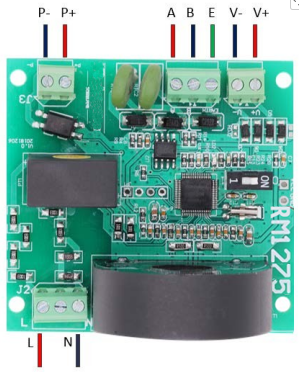

Product Image:​

Specifications:

Working Parameters:

Module Pin Definitions:

Cautions:

1. This product contains quartz crystals. It is strictly prohibited to use ultrasonic cleaning on this product.
2. The surface of this product is sprayed with three proof paint for protection, and it is strictly prohibited to clean the product surface.

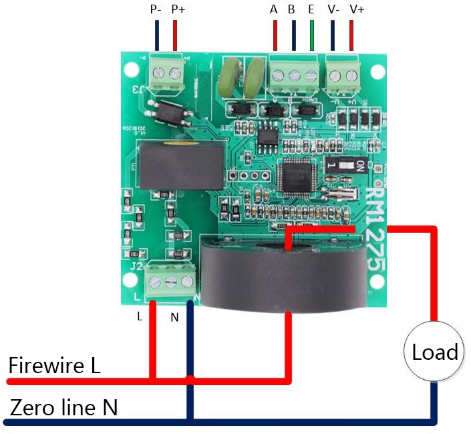

3. Please wire correctly according to the product specifications and model, as shown in the diagram. Before wiring, ensure that all signal sources and power supplies are disconnected to avoid danger and damage to the equipment. After checking and confirming that the wiring is correct, connect the power supply for testing.
4. The voltage circuit or the secondary circuit of PT cannot be short circuited.
5. When there is current on the primary side of the CT, it is strictly prohibited to open the secondary circuit of the CT; It is strictly prohibited to wire or unplug terminals with electricity.
6. When using the product in environments with strong electromagnetic interference, please pay attention to the shielding of the input and output signal lines.
7. During centralized installation, the minimum installation interval should not be less than 10mm.
8. This series of products is not equipped with lightning protection circuits internally. When the input and output feeders of the module are exposed to harsh outdoor weather conditions, lightning protection measures should be taken.
9. Do not damage or modify the labels or logos of the product, do not disassemble or modify the product, otherwise our company will no longer provide "three guarantees" (replacement, return, repair) services for the product.
