Customized Advantage Diamond Segment Welding for Quarring Longer Service Life

Ask Lasest Price
Brand Name :	LINSING
Model Number :	Diamond Segment For Quarrying&Mining
Certification :	TUV
Supply Ability :	10000 Piece/Pieces per Day
Price :	$1.07/pieces 1000-9999 pieces

Add to Cart

Product Details
Company Profile

Customized Advantage Diamond Segment Welding for Quarring Longer Service Life

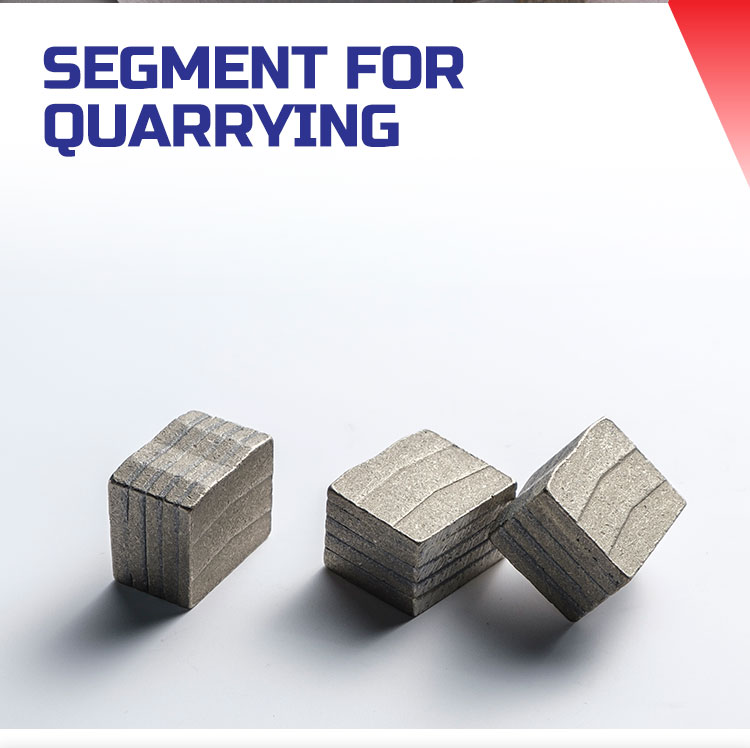

Diamond Segment For Quarrying&Mining

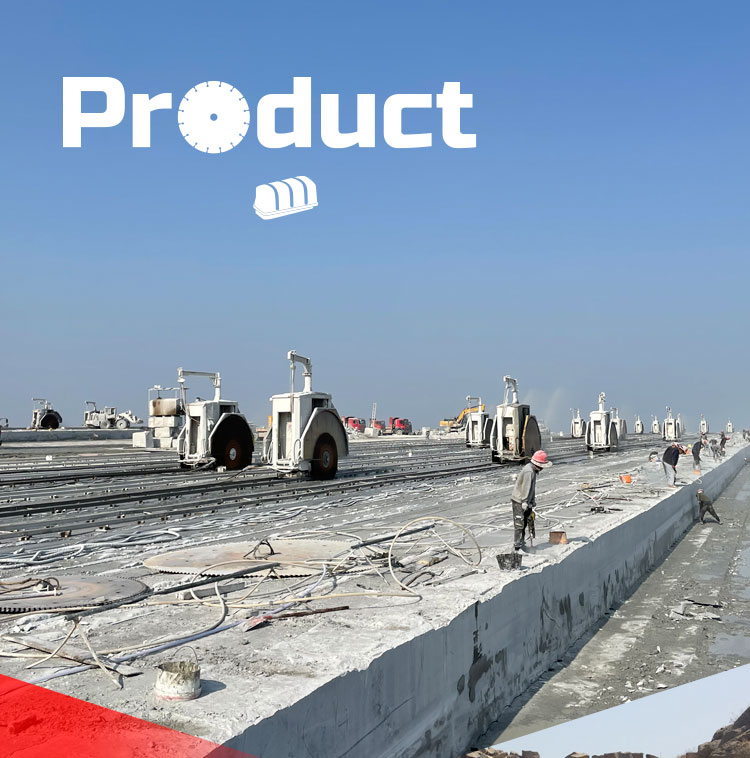

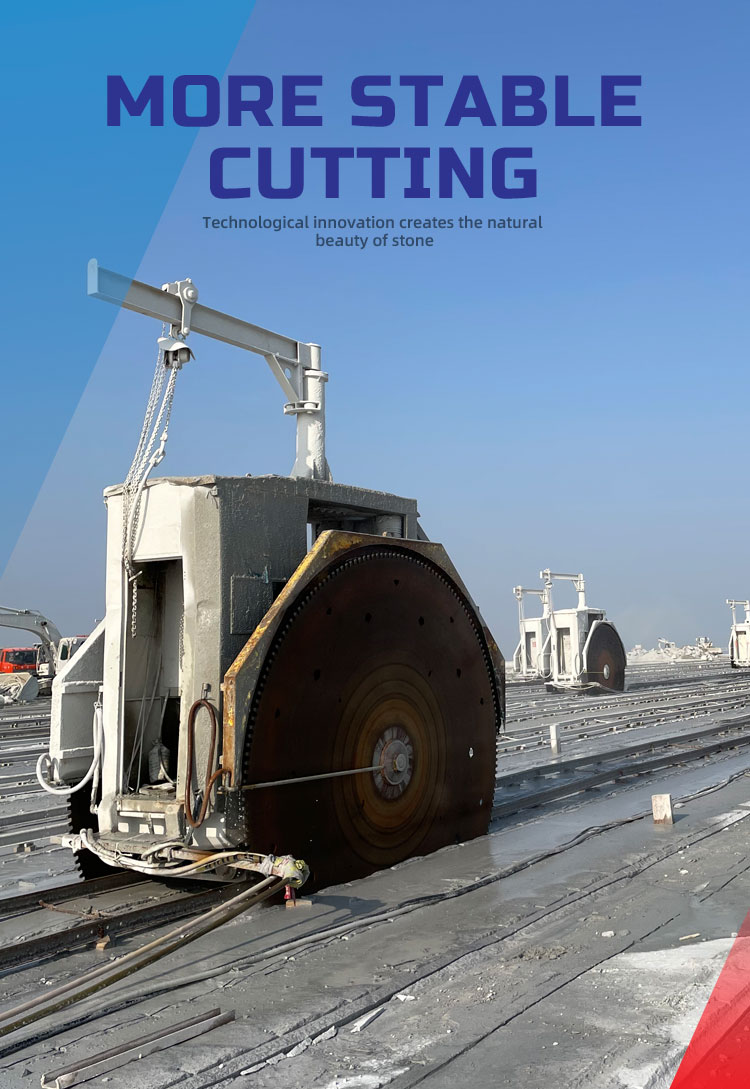

Diamond quarrying segment is a kind of diamond tool product commonly used in granite mining. The product is mainly used for the mining of granite stone blocks, it is used on the mine circular saw. By laying the track, the circular saw can mine the stone blocks in the round-trip process.

Product Features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface;
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters;
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:
Double-blades Combinations:
D2200/D3300; D2200/D3600; D2400/D3300; D2400/D3600

Blade Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No.(pcs)
Φ2200/2400	9.5/10	22x13.1/13.9x15	132/140
Φ3300/3600	9.5/10	22x12.4/11.6x15	160/180

Triple-blades Combinations:
D2400/D3600/D4200; D2600/D3800/D4600; D2600/D3800/D4800

Blade Diameter(mm)	Steel Core Thickness(mm)	Segment Specification(mm)	Segment No(pcs)
Φ2400/2600	12	22x15.6/16.4x15	142
Φ2400/2600	12	24x15.6/16.4x20	142
Φ3600/3800	12	22x14.6/15.4x15	180
Φ3600/3800	12	24x14.6/15.4x20	180
Φ4200/4600/4800	12	22x13.6/14.4x15	210
Φ4200/4600/4800	12	24x13.6/14.4x20	210

Other specifications are available upon request.

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Jiangxi Linxing Diamond Tools Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Customized Advantage Diamond Segment Welding for Quarring Longer Service Life

Customized Advantage Diamond Segment Welding for Quarring Longer Service Life

Customized Advantage Diamond Segment Welding for Quarring Longer Service Life

Diamond Segment For Quarrying&Mining

segmented laser welded diamond blade

diamond core bits laser weld

high frequency welded diamond blade

Customized Advantage Diamond Segment Welding for Quarring Longer Service Life

You May Like

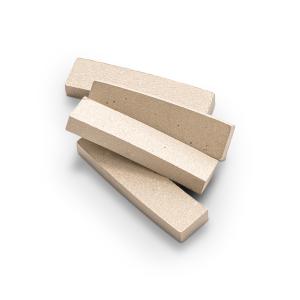

Diamond Segments for India Granite Marble Stone Cutting Tip Tools 40510mm Customized

1400mm Single Disc Sandstone Cutter Tips with Flat Shape 24915mm Layer Segment

Customized Support ODM Diamond Segments for Cutting Marble Granite Sandstone and Limestone

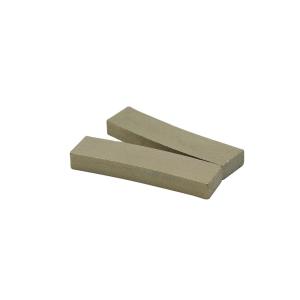

Hot Pressed Technology Long-Life Marble Segment for Cutting Stone
