CK5120 Single Column CNC Metal Turning CNC Vertical Lathe Machine
Product application and features:
The CNC vertical lathe is a top-performing machine with a wide
range of capabilities and high productivity. Our company has
developed a cutting-edge machine tool that seamlessly integrates
animatronics and hydraulics, drawing inspiration from advanced
design and manufacturing techniques, and incorporating our rich
corporate culture. This allows us to deliver world-class products
to both domestic and international customers.
To ensure high precision and durability, we have employed integral
casting and a thermally balanced structure for the table. The main
shaft bearing utilizes a high-precision double row cylindrical
roller bearing, and the table guideway is optimized for smooth
operation.
Please note that we are constantly striving to enhance our
products, and therefore, the information provided may be subject to
change without prior notice.
1. It is mostly used to process middle-diameter tire mould and
flanges, various valves and pipelines, pressure vessels, screw
propeller, steamer machine accessories , plastic mould, shafts and
other work-piece .
2. It is suitable for processing the internal/external cylindrical
surface, conical surface, end face etc
3. Spindle bearings use domestic famous-brand company products.
4. Headstock takes symmetrical structure to make thermal
deformation be even, avoiding the spindle center generates offsets.
5. Gears in headstock and guide way are processed by quenching to
ensure accurate transmission and high rigidity.
6. Vertical lathe table inlaids with zinc alloy wear-resistant
guide guard and can access pressure oil (0.2-0.4MPA) between the
rails for improving load-carrying ability of workbench.
7. Vertical lathe casting has passed through strict artificially
aged and vibration aging in order to make sure the rigidity and
stability of lathe.
Main technical data (2 Meter Vertical Lathe Machine):
| Model | CK518 | CK5112Q | CK5112A | CK5116Q | CK5116A | CK5120A | CK5126A |
| Max. turning diameter of vertical tool rest (mm) | 800 | 1200 | 1200 | 1600 | 1600 | 2000 | 2600 |
| Working table diameter (mm) | 700 | 1000 | 1000 | 1400 | 1400 | 1800 | 2200 |
| Max. height of work-piece (mm) | 800 | 1000 | 1000 | 1200 | 1200 | 1250 | 1400 |
| Max. weight of work-piece (kg) | 1500 | 1500 | 3200 | 3200 | 5000 | 8000 | 8000 |
| Range of worktable rotation speed (rpm) | 30-260 | 20-180 | 6.3-200 | 15-160 | 5-160 | 3.2-100 | 2.2-70 |
| Feeding series | Stepless | Stepless | Stepless | Stepless | Stepless | Stepless | Stepless |
| Range of tool rest feed (mm/min) | 0.25-90 | 0.25-90 | 0.8-86 | 0.25-90 | 0.8-86 | 0.8-86 | 0.8-86 |
| Cross beam travel (mm) | 500 | 1000 | 650 | 1200 | 650 | 890 | 1090 |
| Horizontal travel of tool rest (mm) | 500 | 700 | 700 | 900 | 916 | 1115 | 1400 |
| Vertical travel of tool rest (mm) | 450 | 500 | 650 | 750 | 800 | 800 | 800 |
| Size of section of cutter bar (mm) | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 |
| Main motor power (kw) | 11 | 15 | 22 | 15 | 30 | 30 | 30 |

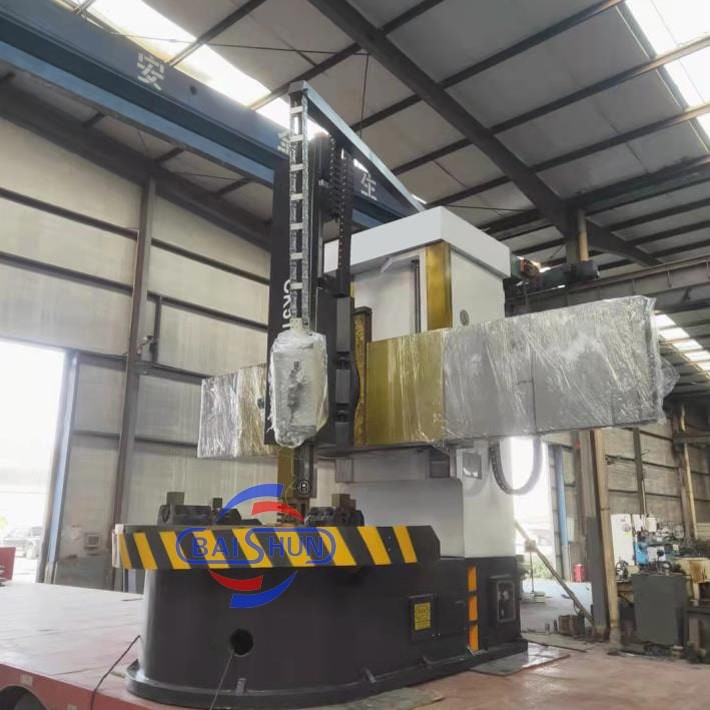

Machine pictures for your reference:
