Description of Oxygen Gas Flow Meter 0-10,0-25L/Min, 0-200L/Min LCD Display
R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling
The nitrogen mass flow meter feature cost effective ultra low power
operating on 4 AA batteries. The portable design has excellent
exchangeable mechanical adaptors, easy data accessible and user
programmable capabilities. The internal data storage can also help
for purpose flow application.
Features of Oxygen Gas Flow Meter 0-10,0-25L/Min, 0-200L/Min LCD Display
R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling
·Ultra low power by batteries or optional external AC adaptor
·Portable design with rotatable meter head and easy exchangeable
mechanical adaptors
·Customizable flow range with over 30:1 turn-down
·Rs485 Modbus protocol ready for networking
·User programmable range alarm for safety and other
monitoring/control functionality
·Internal data storage for additional data safety
·Hygienic and oxygen safe copper body for various fluids
Specification of Oxygen Gas Flow Meter 0-10,0-25L/Min, 0-200L/Min LCD Display
R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling
| Specification |
| Model | MF5706 | MF5712 |
| Display Resilution | 0.01L/min | 0.01L/min |
| Function keyboard | Password set, back-to-zero,alert set | Password set, back-to-zero,alert set |
| Display | LCD | LCD |
| Display unit | L/min M3 | L/min M3 |
| Output | RS485 Optional | RS485 Optional |
| Power supply | Battery or 5-12VDC adapter | Battery or 5-12VDC adapter |
| Measuring range | 0-10,0-25L/Min, 0-200L/min | 0-10,0-25L/Min, 0-200L/min |
| Accuracy | 2% | 2% |
| Pressure working | 0.8Mpa | 0.8Mpa |
| Connection | 1/4"NPT | 1/2"NPT |
| Working temperature | -10℃ to 55℃ | -10℃ to 55℃ |
| Protection grade | IP40 | IP40 |
| Net weight | 350g Copper | 350g AL |

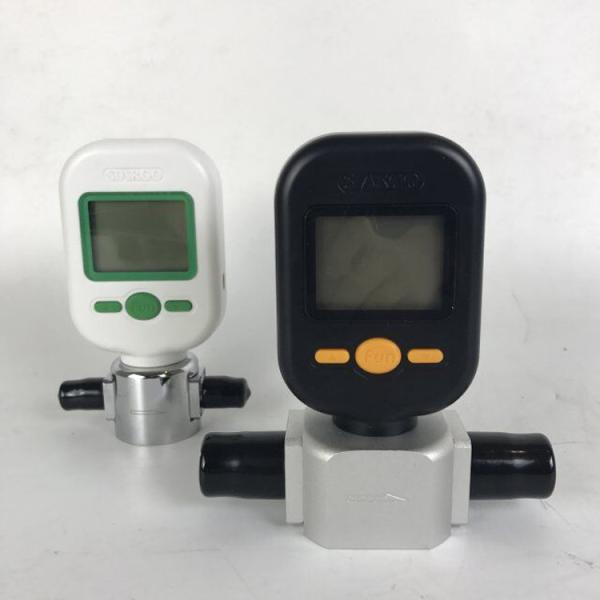

Detailed Images of Oxygen Gas Flow Meter 0-10,0-25L/Min, 0-200L/Min LCD Display
R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling
Dimensions of Oxygen Gas Flow Meter 0-10,0-25L/Min, 0-200L/Min LCD Display
R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling
Selection Guide
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
