Prototyping PCB Prototype Shield UNO R3 ProtoShield With Mini
Breadboard
Product Specifiction:
| Mini breadboard size | 4.4cm x 3.4cm x 1cm |
| Breadboard type | 170 tie points |
| Prototype Size | 7cm x 5.5cm x 2cm |
| Function | the circuit prototype |
| Detail | 1 reset button, 1 general use button, and 2 LED circuits |
| Weight(including the mini breadboard) | 33g |
| Pack Size | 10cm*10cm*5cm |
Product Feature:
power busses for +5V and GND in middle of board
central bus can be configured to carry +5V, GND, neither, both
(jumpers)
Special horizontal 5-pin bus to install pin headers for external
connections.
2x5 IDC connector area for external connections.
holes connected in groups of five, breadboard-style
all regular pins accessible on top
bottom of board cannot short to USB connector as in other
protoshield designs
power LED and reset button on top
USB/External power jumper accessible with protoshield installed
low parts count: only one capacitor, a resistor, and LED and a
switch, in addition to header pins.
two ways to use it: add header pins and a breadboard on top, or
just use through holes to wire point to point.
Package Included:
1 PC UNO R3 ProtoShield

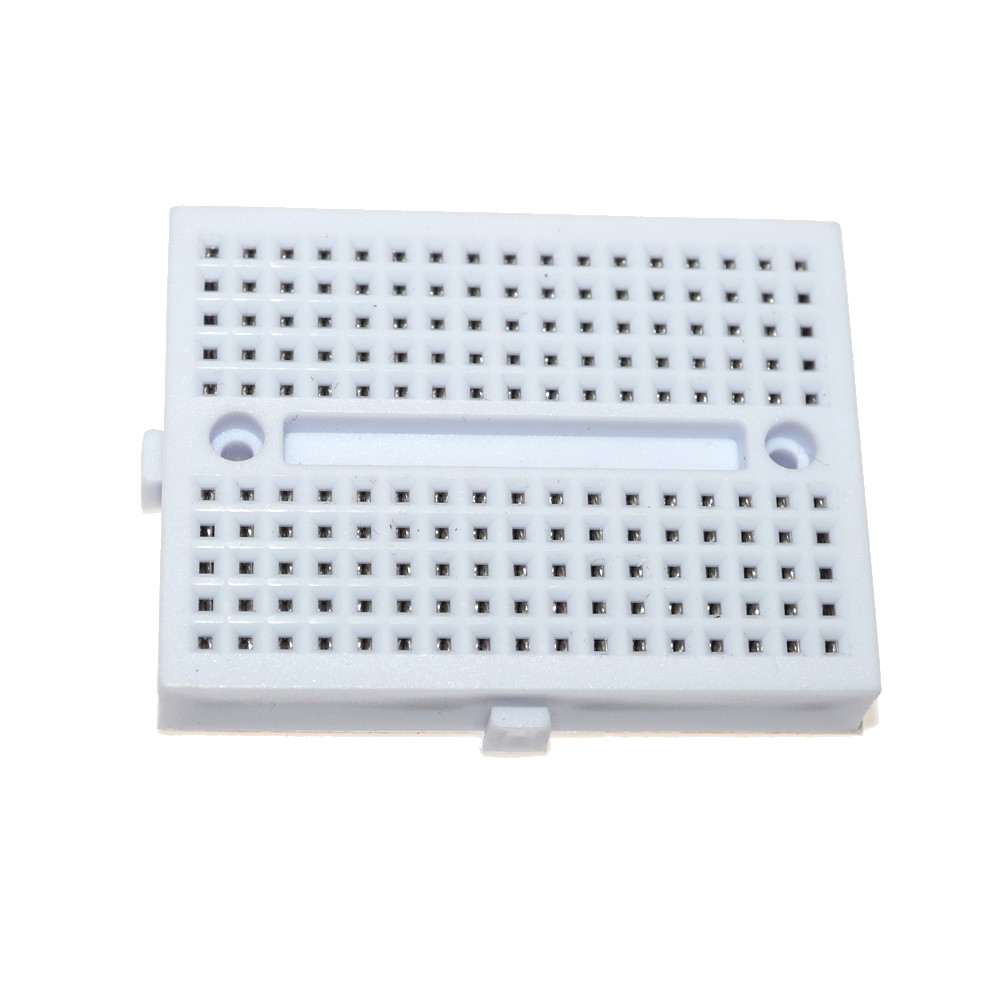

1 PC Mini Breadboard
Photos:
Product Packing:
Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package
Product Delivery:
1. The items normally will be shipped out within1-3 working days
after the payment arrives.
2. The items can be shipped by DHL/FedEx /TNT/ UPS /EMS or other
special method. Please inform us directly which method is your
preferred way.
