Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M

    Buy cheap Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M from wholesalers

    Buy cheap Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M from wholesalers
    • Buy cheap Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M from wholesalers
    • Buy cheap Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M from wholesalers
    • Buy cheap Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M from wholesalers
    • Buy cheap Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M from wholesalers

    Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M

    Ask Lasest Price
    Brand Name : Okynewstar
    Model Number : pro mini ATMEGA328P
    Delivery Time : 3~5 days after payment
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 1000pcs
    • Product Details
    • Company Profile

    Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M

    Microcontroller Board For Arduino Funduino Pro Mini ATMEGA328P 5V / 16M


    Quick Detail:

    • 100% New, Board for Arduino.
    • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
    • USB connection off board
    • Supports auto-reset
    • Max 150mA output
    • Over current protected
    • Reverse polarity protected
    • DC input 5V up to 12V
    • On board Power and Status LEDs
    • Size: 33mm L * 18 mmW * 6mmH

    Description:


    Mini Pro is a microcontroller board. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), Eight analog inputs, a 16MHz resonator, a reset button, mounting hole pin head.


    Specifications:


    1.14 Digital input / output ports RX, TX D13, D2 ~~ of,
    2 or 8 analog input port A0 to A7
    3. The TTL level serial transceiver port RX / TX
    4.6 PWM ports, D3,, D5 , D6, D9, D10, D11 . Using Atmel Atmega328P-AU microcontroller
    supports serial download
    7. Support for external 3.3V ~ 12V DC power supply
    8. Support 9V battery-powered the
    9 clock frequency 16MHz
    10. Dimensions: 33.3 * 18.0 (mm)

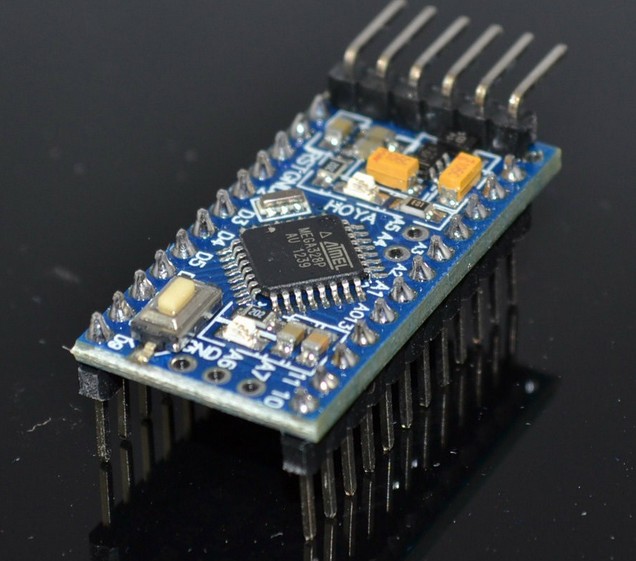

    The Product Image



    Factory Image



    Competitive Advantage:


    1.Convenient & Friendly Customer Service

    2. Low Prices Direct From Factory Suppliers
    3. Fast Delivery Around The Globe.
    4. High Quality With Global Standards.
    5. 3 year factory warranty
    6. Safe shipping way and payment
