3D Printer Rambo Control Board for Arduino 1.2A RepRap Mother Board
Specification :
Description: RAMBo (RepRap Arduino-compatible Mother Board) is an
all in one RAMPS class motherboard targeting convenience,
reliability, and performance.
1. Logic Arduino MEGA compatible Atmega2560 and Atmega32u2
processors are compatible with all RAMPS class firmware Crystals
for both USB and mcu (timing accurate to 10ppm)
2. 4 Thermistor jacks
3. All extra pins broken out on both processors (allows using the
32u2 for LUFA AVR programmer, etc.)
4. 2 channel SDRAMPS compatible SPI breakout
5. 5-Channel 16 subdivision A4982, XY axes support all the way,
Z-axis support parallel two-way, extruders E-axis support
independent two-way
6. Motor drive control signals have test points
7. Motor drive control by firmware subdivision
8. Leave the LCD interface, can support 2004LCD control module and
the control module 12864LCD
9. 5-channel PWM output can be controlled extruders, fans, etc.
10. There are three inputs have the power fuse: hot-bed, extruder
motor are all 12V 15A
11. 4-layer 35um copper PCB (four panels)
Competitive Advantages:
1.Convenient & Friendly Customer Service.
2.Low Prices Direct From Factory Suppliers.
3.Fast Delivery Around the World.
4.High Quality With Global Standards.
5.One Year Factory Warranty.
6.Safe Shipping Way and Payment.

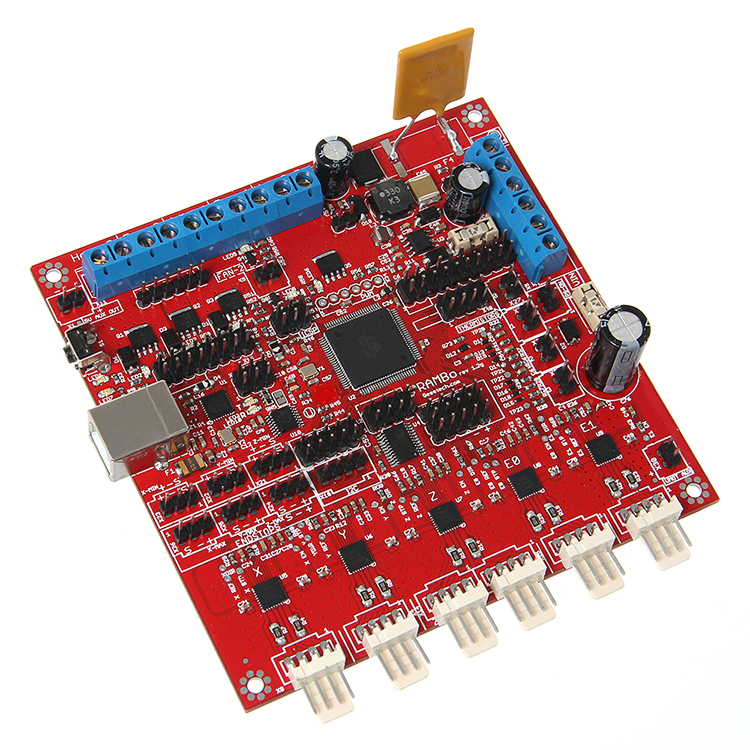

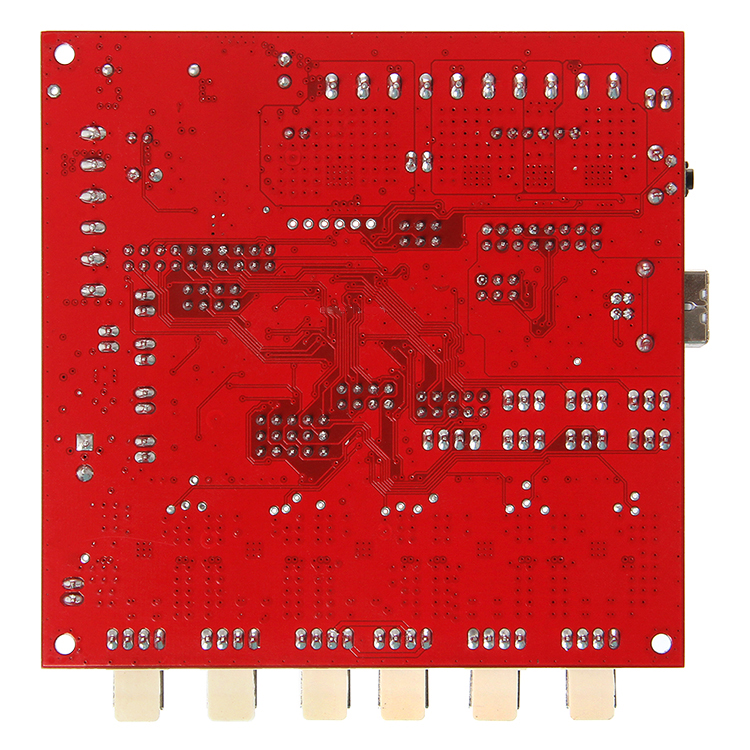

Photos:
Packing&Shipping:
Shipping Ways and Time Needed:
Our Team:
Factory Pictures:
Certificates:
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final
decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I
return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
