    DC Converter Linear Regulator Replacement Non Isolated Switching Regulator

    Ask Lasest Price
    Brand Name : CUI
    Model Number : V7805-2000
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 2-4 working days after receiving the payment
    • Product Details
    • Company Profile

    DC Converter Linear Regulator Replacement Non Isolated Switching Regulator

    Linear Regulator Replacement DC DC Converter V7805-2000 and V7805-2000R NON-ISOLATED SWITCHING REGULATOR


    TYPE:

    V7805-2000

    V7805-2000R


    FEATURES

    • 2 A current output

    • extremely high efficiency up to 92%

    • no heat sink required

    • pin compatible to LM78XX linear regulators

    • available in straight and right angle SIP packages

    • low ripple and noise

    • short circuit protection, thermal shutdown

    • wide temperature (-40~85°C)


    V7802-2000* 12 4.75~18 2.5 2,000 5 45 85 83

    V7803-2000 12 4.75~18 3.3 2,000 6.6 45 87 86

    V7805-2000 12 6.5~18 5 2,000 10 45 91 88

    V7806-2000 12 8~18 6.5 2,000 13 45 92 91


    Notes: 1. ripple and noise are measured at 20 MHz BW

    *. Discontinued


    INPUT

    Parameter conditions/description min typ max units

    2.5 and 3.3 V outputs 4.75 12 18 Vdc

    operating input 5 V output 7 12 18 Vdc

    voltage 6.5 V output 8.5 12 18 Vdc


    OUTPUT

    parameter conditions/description min typ max units

    line regulation Vin = min ~ max, at full load ±0.5 ±0.75 %

    load regulation measured from 10% load to full load ±0.5 ±1.0 %

    voltage accuracy 100% load ±2 ±3 %

    switching frequency 100% load, input 300 340 380 kHz

    voltage range

    temperature coeffi cient ±0.03 %/°C


    PROTECTIONS

    parameter conditions/description min typ max units

    short circuit protection continuous, automatic recovery

    thermal shutdown internal IC junction 150 °C


    SAFETY AND COMPLIANCE

    parameter conditions/description min typ max units

    EMI/EMC EN 55022 class B, EN 61000-4-2 level

    3 6kV / 8kV perf. criteria B

    MTBF 2,000,000 hours

    RoHS 2011/65/EU


    ENVIRONMENTAL

    parameter conditions/description min typ max units

    operating temperature -40 85 °C

    storage temperature -55 125 °C

    case temperature 100 °C

    storage humidity non-condensing 95 %

    temperature rise at full load 25 °C

    lead temperature 1.5 mm from case for 10 seconds 300 °C


    Specification :

    ManufacturerCUI Inc.
    SeriesV78-2000
    PackagingTube
    Part StatusActive
    TypeLinear Regulator Replacement
    Number of Outputs1
    Voltage - Input (Min)7V
    Voltage - Input (Max)18V
    Voltage - Output 15V
    Voltage - Output 2-
    Voltage - Output 3-
    Current - Output (Max)2A
    Power (Watts) - Manufacture Series10W
    Voltage - Isolation-
    ApplicationsITE (Commercial)
    FeaturesOTP, SCP
    Operating Temperature-40°C ~ 85°C
    Efficiency91%
    Mounting TypeThrough Hole
    Package / Case3-SIP Module
    Size / Dimension0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)

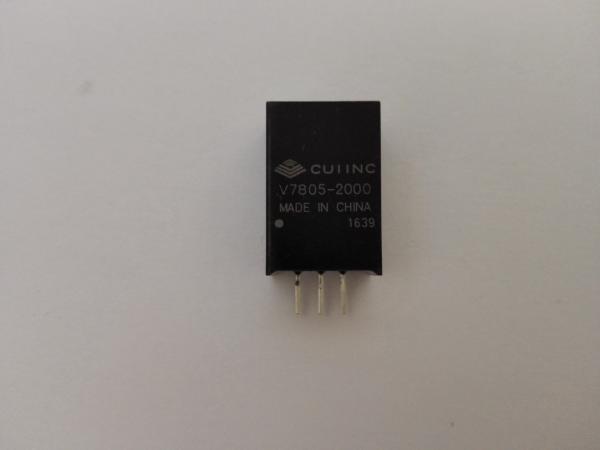

    Product show:



    Product packing:












    Our advantage :

    • High quality products --- our offers are 100% new and original, ROHS
    • Competitive price --- good Purchase channels with good price.
    • Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
    • Adequate inventory --- With the support of our strong Purchasing team,
    • Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

    be sure to meet your need for all kinds of components. ^_^
