NXP MCU ARM Flash 32KB Integrated Circuit Parts for Industrial
Description:
• System:
– ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
– ARM Cortex-M0 built-in Nested Vectored Interrupt Controller
(NVIC).
– Serial Wire Debug.
– System tick timer.
• Memory:
– On-chip flash programming memory for LPC1100, LPC1100L, and
LPC1100C
series: 32 kB (LPC1114/LPC11C14), 24 kB (LPC1113), 16 kB
(LPC1112/LPC11C12), or 8 kB (LPC1111), 4kB (LPC1110).
– On-chip flash programming memory for LPC1100XL series: 8 kB
(LPC1111), 16 kB
(LPC1112), 24 kB (LPC1113), 32 kB (LPC1114/203/303), 48 kB
(LPC1114/323),
56 kB (LPC1114/333), 64 kB (LPC1115).
– 8 kB, 4 kB, 2 kB, or 1 kB SRAM.
– In-System Programming (ISP) and In-Application Programming (IAP)
via on-chip
bootloader software.
– LPC1100XL series only: page erase IAP command.
• Digital peripherals:
– Up to 42 General Purpose I/O (GPIO) pins with configurable
pull-up/pull-down
resistors. Number of GPIO pins is reduced for smaller packages and
LPC11C22/C24.
– GPIO pins can be used as edge and level sensitive interrupt
sources.
– High-current output driver (20 mA) on one pin.
– High-current sink drivers (20 mA) on two I2C-bus pins in
Fast-mode Plus.
– Four general purpose timers/counters with a total of four capture
inputs and up to
13 match outputs.
– Programmable WatchDog Timer (WDT).
• Analog peripherals:
– 10-bit ADC with input multiplexing among up to 8 pins.
• Serial interfaces:
– UART with fractional baud rate generation, internal FIFO, and
RS-485 support.
– Two SPI controllers with SSP features and with FIFO and
multi-protocol
capabilities (second SPI on LQFP48 packages only).
– I
2C-bus interface supporting full I2C-bus specification and
Fast-mode Plus with a
data rate of 1 Mbit/s with multiple address recognition and monitor
mode.
– C_CAN controller (LPC11Cxx only). On-chip CAN and CANopen drivers
included.
– On-chip, high-speed CAN transceiver (parts LPC11C22/C24 only).
• Clock generation:
– 12 MHz internal RC oscillator trimmed to 1% accuracy that can
optionally be used
as a system clock.
– Crystal oscillator with an operating range of 1 MHz to 25
MHz.UM10398 All information provided in this document is subject to
legal disclaimers. © NXP B.V. 2014. All rights reserved.
User manual Rev. 12.3 — 10 June 2014 7 of 547
NXP Semiconductors UM10398
Chapter 1: LPC111x/LPC11Cxx Introductory information
– Programmable watchdog oscillator with a frequency range of 7.8
kHz to 1.8 MHz.
– PLL allows CPU operation up to the maximum CPU rate without the
need for a
high-frequency crystal. May be run from the system oscillator or
the internal RC
oscillator.
– Clock output function with divider that can reflect the system
oscillator clock, IRC
clock, CPU clock, and the Watchdog clock.
• Power control:
– Integrated PMU (Power Management Unit) to minimize power
consumption during
Sleep, Deep-sleep, and Deep power-down modes.
– Power profiles residing in boot ROM allowing to optimize
performance and
minimize power consumption for any given application through one
simple function
call. (On LPC1100L and LPC1100XL parts only).
– Three reduced power modes: Sleep, Deep-sleep, and Deep
power-down.
– Processor wake-up from Deep-sleep mode via a dedicated start
logic using up to
13 of the functional pins.
– Power-On Reset (POR).
– Brownout detect with up to four separate thresholds for interrupt
and forced reset.
• Unique device serial number for identification.
• Single 3.3 V power supply (1.8 V to 3.6 V).
• Available as LQFP48 package, HVQFN33 package.
• LPC1100L series also available as HVQFN24, TSSOP28 package, DIP28
package,
TSSOP20 package, and SO20 package.
• Available as dual-chip module consisting of the LPC1114
single-chip microcontroller
combined with a PCF8576D Universal LCD driver in a 100-pin LQFP
package (part
LPC11D14FBD100/302).1
Specification:

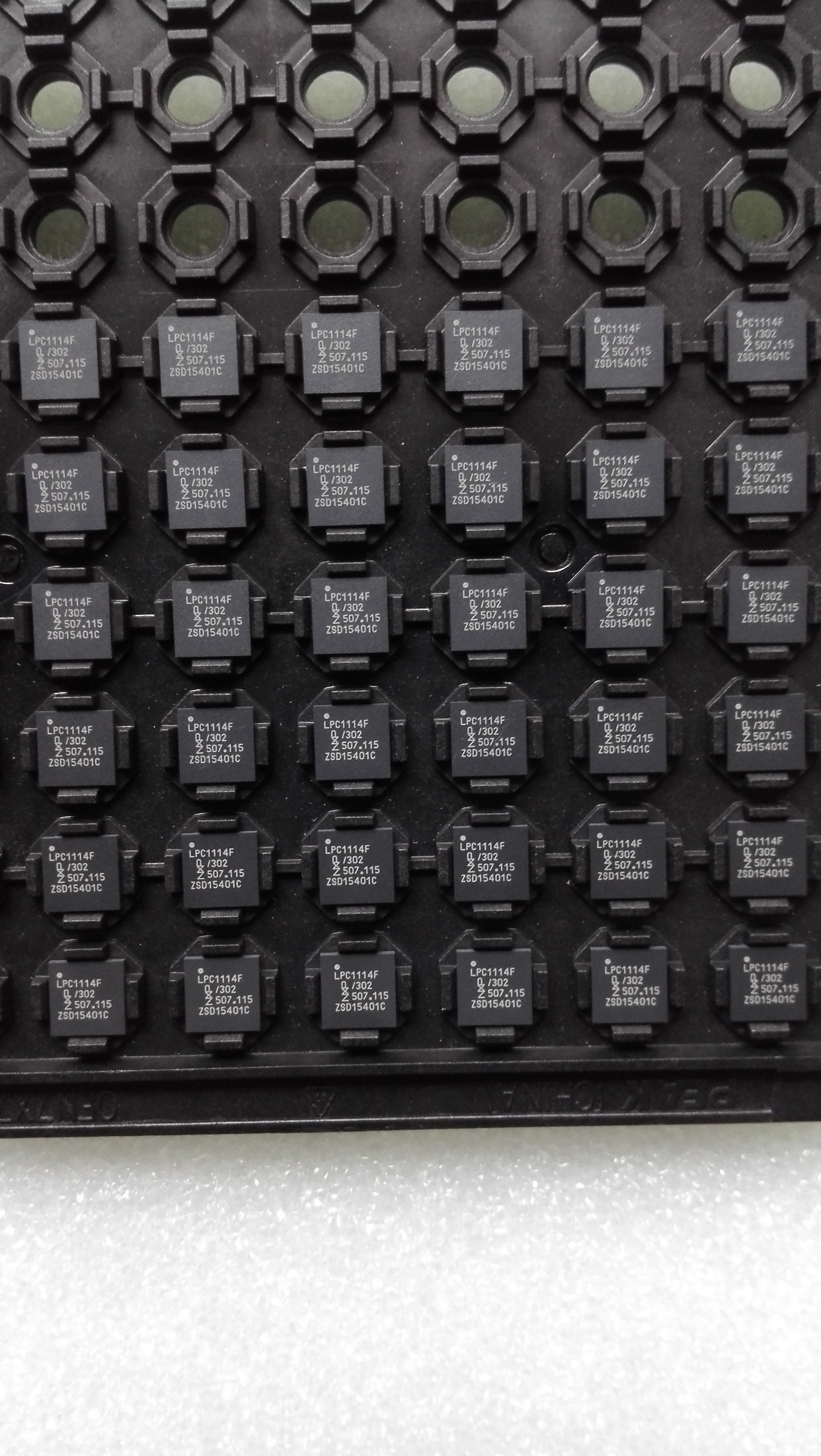

Standard package | 260pcs/tray |
Category | Integrated Circuits (ICs) |
Family | Embedded - Microcontrollers |
Series | LPC1100L |
Packaging | Tray |
Core Processor | ARM® Cortex®-M0 |
Core Size | 32-Bit |
Speed | 50MHz |
Connectivity | I²C, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, WDT |
Number of I/O | 28 |
Program Memory Size | 32KB (32K x 8) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 8K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
Data Converters | A/D 8x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C |
Package / Case | 32-VQFN Exposed Pad |
Supplier Device Package | 32-HVQFN (7x7) |
Ordering Information:
Type number | Package | Description | Version |
SO20, TSSOP20, TSSOP28, and DIP28 packages | |
LPC1110FD20 | SO20 | SO20: plastic small outline package; 20 leads; body width 7.5 mm | SOT163-1 |
LPC1111FDH20/002 | TSSOP20 | TSSOP20: plastic thin shrink small outline package; 20 leads; body
width 4.4 mm | SOT360-1 |
LPC1112FD20/102 | SO20 | SO20: plastic small outline package; 20 leads; body width 7.5 mm
width 4.4 mm | SOT163-1 |
LPC1112FDH20/102 | TSSOP20 | TSSOP20: plastic thin shrink small outline package; 20 leads; body
width 4.4 mm | SOT360-1 |
LPC1112FDH28/102 | TSSOP28 | TSSOP28: plastic thin shrink small outline package; 28 leads; body
width 4.4 mm | SOT361-1 |
LPC1114FDH28/102 | TSSOP28 | TSSOP28: plastic thin shrink small outline package; 28 leads; body
width 4.4 mm | SOT361-1 |
LPC1114FN28/102 | DIP28 | DIP28: plastic dual in-line package; 28 leads (600 mil) | SOT117-1 |
HVQFN24/33, LQFP48, and TFBGA48 packages | |
LPC1111FHN33/101 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111FHN33/102 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111FHN33/201 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111FHN33/202 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111FHN33/103 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111JHN33/103 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111FHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1111JHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112FHN33/101 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112FHN33/102 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112FHN33/201 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112FHN33/202 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112FHN24/202 | HVQFN24 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 24 terminals; body 4 x 4 x 0.85 mm | SOT616-3 |
LPC1112FHI33/102 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 5x5x0.85 mm | n/a |
LPC1112FHI33/202 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 5x5x0.85 mm | n/a |
LPC1112FHI33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 5x5x0.85 mm | n/a |
LPC1112JHI33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 5x5x0.85 mm | n/a |
LPC1112FHN33/103 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112JHN33/103 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112JHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1112FHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FHN33/201 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FHN33/202 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113JHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FHN33/301 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FHN33/302 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FHN33/303 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113JHN33/303 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHN33/201 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHN33/202 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHN33/301 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHN33/302 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHI33/302 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHI33/303 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 5x5x0.85 mm | n/a |
LPC1114JHI33/303 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 5x5x0.85 mm | n/a |
LPC1114FHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114JHN33/203 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHN33/303 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114JHN33/303 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114FHN33/333 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1114JHN33/333 | HVQFN33 | HVQFN: plastic thermal enhanced very thin quad flat package; no
leads; 33 terminals; body 7x7x0.85 mm | n/a |
LPC1113FBD48/301 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1113FBD48/302 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1113FBD48/303 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1113JBD48/303 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114FBD48/301 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114FBD48/302 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114FBD48/303 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114JBD48/303 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114FBD48/323 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114JBD48/323 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114FBD48/333 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1114JBD48/333 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1115FBD48/303 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1115JBD48/303 | LQFP48 | LQFP48: plastic low profile quad flat package; 48 leads; body
7x7x1.4mm ´ | SOT313-2 |
LPC1115FET48/303 | TFBGA48 | plastic thin fine-pitch ball grid array package; 48 balls; body
4.5x4.5x0.7mm | SOT1155-2 |
LPC1115JET48/303 | TFBGA48 | plastic thin fine-pitch ball grid array package; 48 balls; body
4.5x4.5x0.7mm | SOT1155-2 |
Application:
it is used for a Wide range of fields :
Industrial products, communication etc
Product show:
Our advantage :
- High quality products --- our offers are 100% new and original,
ROHS
- Competitive price --- good Purchase channels with good price.
- Professional service --- strict quality testing before the
shipment, and perfect after-sales service after the purchase.
- Adequate inventory --- With the support of our strong Purchasing
team,
- Fast delivery --- we will ship the goods within 1-3 working days
after the payment confirmed.
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of
semiconductors, active & passive Components.We can help you to get
all for bom of the PCB,IN a word, you can get one-stop solution
here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor,
Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer,
Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal &
Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD,
Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, NXP, ATMEL, ST, ON, NS, Intersil, Winbond,
Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
