CNC Knife Cutting Machine for Upholstery Furniture Garment Fabric
Sofa Leather Curtain Mat Rug Blanket Carpet

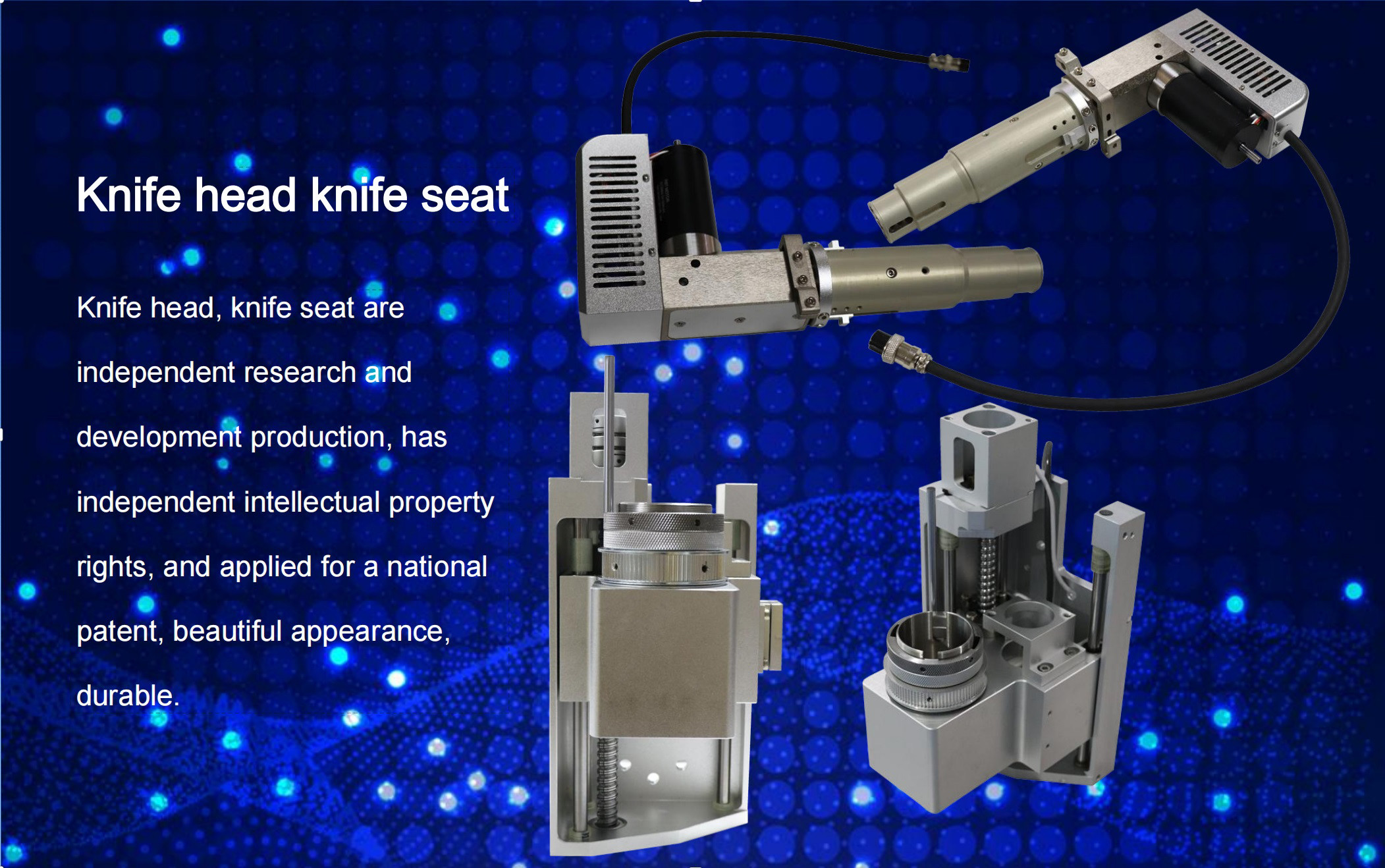

IBON digital cutter is equipped with high-speed wheel cutting tool
or pneumatic cutting tool, it can do both fast cutting for single
layer fabric cutting, and also for multi-layer fabrics cutting. It
has automatic nesting software, automatic feeding system and vacuum
adsorption system. The vacuum adsorption system draws and fixes the
roll-shaped fabrics, and then imports the designed image, such as
AI, CorelDraw, CAD, etc. into the machine cutting operating system.
The digital cutter automatically cuts on the fabrics based on the
designed graphic.Various cutting tools to meet different material cutting needs.
IBON CNC digital cutters are mainly for fabric, leather, and
composites or other flexible materials cutting. For example, Oxford
cloth, Nonwoven Fabric, Chiffon, Prepreg, Neoprene, Synthetic
Leather, cowhide, fur, PVC, Foam,Acoustic panel, KT board, car
stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon
fiber, and other materials. With a variety of tools and pens to
meet the cutting needs of different materials, and provide a
variety of personalized cutting services.
Problems of artificially cutting fabrics:
1. Some industries have high requirements for cutting precision,
manual cutting cannot meet the cutting requirements;
2. The efficiency of manual cutting complex patterns is low, which
cannot meet the needs of mass production;
3. The cost of manual cutting is high. If efficiency and precision
are required, the number of workers can only be increased, and the
cost of workers will be greatly increased.
Specifications:
| Parameters/Model | IB1613 IB1625 IB1650 IB1509 IB1606 |
| Working Size | 1600*1300mm 1600*2500mm 1600*5000mm 1500*900mm 1600*600mm (can be
customized) |
| Cutting thickness | ≤45mm (Other thickness can be customized according to the material) |
| Cutting speed | ≤1700mm/s(The actual speed depends on the material and cutting
graphics) |
| Applicable materials | Oxford cloth, Nonwoven Fabric, Prepreg, Neoprene, Synthetic
Leather, cowhide, fur, PVC, Foam,Acoustic panel, KT board, car
stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon
fiber, and other materials |
| Cutting precision | ± 0.1mm |
| Repeat accuracy | ≤0.05mm |
| Min cutting circular diameter | ≤1mm Diameter |
| Positioning way | Knife positioning also optional CCD camera positioning |
| Safety device | Physical anti-collision mechanism + infrared induction
anti-collision to ensure production safety |
| Material fixed way | Vacuum adsorption |
| Transport interface | Ethernet front-end ports/usb |
| Compatible software | AI software, AutoCAD, CorelDRAW, and all of the box type design
software can output directly, without conversion, and with
automatic optimization |
| Support File Format | AI, PLT, DXF |
| Operation Panel | Multilingual languages LCD touch panel |
| Transmission system | High precision linear guide, meshing transmission gear and rack
structure, high performance servo drive motors + precision reducer |
| Power supply voltage | AC 220 v to 380 v ± 10%, 50 - 60hz |
| Pump power | 7.5kw/9kw/11kw |
| Work environment | Temperature: - 10 ºC to 40 ºC, humidity: 20% ~ 80% RH |
IBONCUTTING automatic feeding cutting machine completes the
continuous cutting of rolled fabrics, using a small space to meet
the cutting of extra-long materials.
Efficiency and Speed:
These cutting machines significantly reduce the time it takes to
cut fabrics when compared to manual cutting methods. IBONCUTTING
machines are designed to handle large volumes of fabric quickly,
increasing overall production throughput and enabling manufacturers
to meet tight deadlines.
Customization:
IBON cutting machines are equipped with software that allows for
easy adjustments and customization of designs. This is a key
advantage for sofa manufacturers who need to adapt quickly to new
designs and customer specifications.
Reduced Waste:
With precise cutting and advanced nesting software, iboncutting
machines minimize fabric waste by optimizing the layout of
patterns. This is particularly important in the sofa industry where
reducing material costs can significantly impact profitability.
IBON advanced cutting technologies and systems designed to handle a
variety of flexible or soft materials, such as fabrics, rubber,
films, and more. These solutions are tailored to meet the needs of
industries like textiles, automotive, packaging, and footwear,
offering precision, efficiency, and adaptability. Whether for
intricate designs or large-scale production, flexible material
cutting solutions ensure high-quality results while optimizing
productivity.
