    Programmable Logic Compressor 4 Axis 8 Axis Stepper Servo Driver Brushless Pwm Dual Motor Speed Controller Unit Module

    Programmable Logic Compressor 4 Axis 8 Axis Stepper Servo Driver Brushless Pwm Dual Motor Speed Controller Unit Module


    Ports short circuit:

    The COM (S/S) of the PLC input terminal is connected to
    24V, and the X terminal is connected to the power supply 0V, that is, the input
    has a signal
    Two-wire system (magnetic control switch): The positive pole of the magnetic switch is
    connected to PLC X terminal, and the negative pole is connected to 0V.
    Three-wire system (photoelectric sensor or encoder):The PLC switch is
    connected to a three-wire photoelectric sensor or encoder, the power supply
    of the sensor or encoder is connected to the positive electrode of the power
    supply, and the signal line is connected to the X terminal. The encoder and
    photoelectric sensor are required to be NPN type (PNP needs special customization).


    PLC digital outputs wiring:
    Transistor: Output is NPN, COM is connected to the negative pole, and Y is connected to
    the positive pole of the power supply w ith a load .
    Relay: D ry contact output, COM can be connected to the positive or negative.

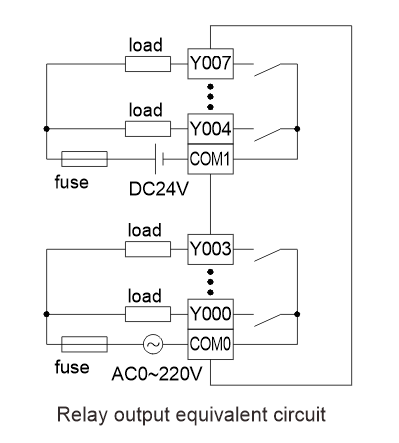

    Diagram shows the equivalent circuit diagram of the relay output module. The output terminals are several
    groups. Each group is electrically isolated. Different groups of output contacts are connected to different powercircuits.


    Parameter


    Display

    Dimension

    200*146*36mm


    Cutout size

    192*138mm


    Type

    7"TFT


    Feature

    60K-color resistive touch screen, supports portrait display

    Memory

    RAM

    128MB


    ROM

    NOR Flash 128MB


    CPU

    Dual-core 1GHz

    I/O

    DI/DO

    Max 24DI/20DO

    (max 16MR)


    DI/DO level

    Input: Passive NPN, public terminal isolated

    Relay output: Normally open dry contact


    DO type and load

    MR: 2A/point, 5A/12 point COM.


    Analog I/O

    (optional)

    Max 12AI/8AO


    AI type (optional)

    Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

    0~10V/ 0~5V/ 0~20mA/ 4~20mA/ -5V~5V/ -10V~10V / mixed


    AO type (optional)

    0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

    -5~5V/ -10~10V (2AO for 1 minus voltage)

    High-speed function

    High-speed counting

    Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

    or 2 ABZ 60KHz + 1 AB phase 10 KHz


    High-speed pulse

    8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz

    Connection

    HMI

    Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port



    1 RS485 (changed from default RS232)


    PLC

    1 TYPE-C, 1 RS232 (program port)



    1 RS485 or 2 RS485 COM ports (RS485 port on HMI and RS232 on PLC will be unavailable)



    CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232 port)

    Software

    HMI

    Coolmay Vcool


    PLC

    Compatible with Mitsubishi GX Developer 8.86 and WORKS 2

    Naming rules

    1. Series EX3G-80: EX3G-80 series
    2. HMI 43FH: 4.3inch 50FH: 5inch 70FH/70HD/70KFH: 7inch 100FH: 10inch

    3. Digital input and output (DI/DO) 16: 8DI 8DO 24: 12DI 12DO 38: 20DI 18DO 44: 24DI 20 DO 60: 30DI 30DO

    4. Module type M: Main module of universal controller
    5. Digital output (DO) type R: relay; T: trnasistor(MOS tube); RT: both relay and transistor
    6. Analog input (AD) 4 channels for 43FH/50FH,12 for 70FH/HD ,16 for 70KFH/100FH
    7. Analog output (DA) 2 channels for 43FH/50FH,8 for 70FH/70HD/70KFH/100FH
    8. AI type E: Thermocouple E(can be customized as type K T, S or J supports negative temperature)
    PT:PT100 PT1000:PT1000 NTC thermistor 10K, 50K, 100K A0: 0-20mA A4: 4-20mA V5: 0-5V
    V: 0-10V V5_:-5V~5V V_:-10~10V (only 7 and 10 inch support V5_ and V_)
    9. AO type A0: 0-20mA A4: 4-20mA V5: 0-5V V: 0-10V V5_:-5V~5V
    V_:-10~10V(only 7 inch and 10 inch support negative voltage covers 2 channels)
    10. C1 singe phase high-speed counting,C2 AB phase counting,C3 ABZ phase counting;
    Normally support 6 single phase 60KHz , or 2 AB ( Z ) 60KHz + 1 AB 10KHz
    11. P0:10KHz high speed pulse;P:100KHz high speed pulse;Normally 8 channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz;That high speed counting plus high speed pulse must be withi 480KHz
    12. com port optional refers to Chart 1'basic parameter
