    Type C HMI PLC All In One Support PWM Analog Output 64MB RAM For Egg Incubator

    Ask Lasest Price
    Brand Name : COOLMAY
    Model Number : QM3G-50FH-24MR-4AD2DA-485P/232H
    Certification : CE
    Price : USD 150-198 per set
    Payment Terms : L/C, , Western Union, T/T
    Supply Ability : 100,000 Sets per month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Type C HMI PLC All In One Support PWM Analog Output 64MB RAM For Egg Incubator

    Type-C HMI Download Port HMI PLC All In One Support PWM Analog Output ODM/OEM PLC For Egg Incubator


    Coolmay HMI/PLC all-in-one machine has innovatively realized the high integration of HMI and PLC switch, analog and temperature in hardware. It can be used in various occasions requiring PLC control without external PLC and other expansion modules. The highly integrated industrial automation control solution uses pluggable terminals, which greatly facilitates the disassembly, installation and maintenance of terminal customers. It can be replaced directly when it fails, achieving "zero travel expenses" and free on-site maintenance.


    Parameter:

    Dimension151*96*36mm
    Cutout size143*86mm
    Type5"TFT
    Feature60K-color resistive touch screen, supports portrait display
    RAM64MB
    ROMNOR Flash 8MB
    CPU32bit CPU 408MHz
    DI/DO12DI/12DO
    DI/DO levelInput: Passive NPN, public terminal isolated
    DO type and loadRelay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point COM; MR: 2A/point, 5A/12 point COM.

    Analog I/O

    (optional)

    4AI 2AO
    AI type (optional)

    Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

    0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed

    AO type (optional)0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed
    High-speed counting

    Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,

    or 2 ABZ 60KHz + 1 AB phase 10 KHz

    High-speed pulse

    8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

    High-speed counting + high-speed pulse < 480KHz

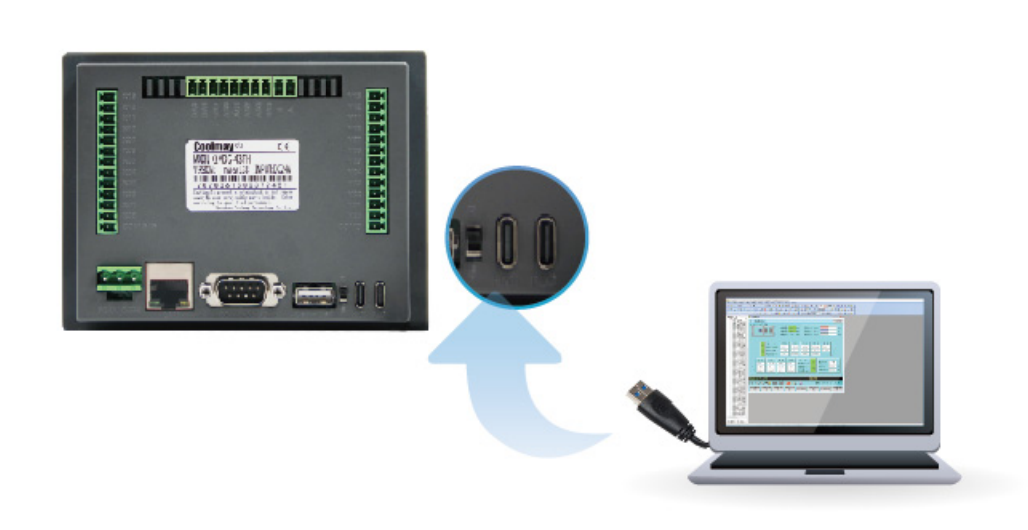

    HMIType-C HMI download port
    PLC1 TYPE-C, 1 RS232 (program port)

    1 RS485 or 2 RS485 COM ports (one of which is changed from the default RS232 port);

    1 WIFI (occupy default RS232 port)

    HMICoolmay mView HMI Programming Software
    PLCCompatible with Mitsubishi GX Developer 8.86 and WORKS 2

    Advantage:

    1. Post-retail costs

    • Based on an integrated design, all control components are integrated into a unit, and the product uses pluggable terminals
    • Users only need to replace the all-in-one machine by themselves to solve the problem, simple and convenient
    • All maintenance can be carried out remotely, and no professional and technical personnel can come to service, thereby saving travel expenses

    2. Post-retail labor costs

    • All maintenance problems of the equipment can be completed by the user, and Wuyong always has professional after-sales personnel

    3. Zero development costs

    • Coolmay R&D does not require software development, only hardware design, no manpower and material costs
