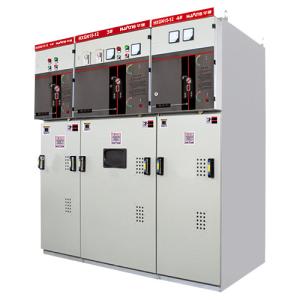

KYN61-40.5(Z) type armored movable AC metal closed switchgear
(hereinafter referred to as "switchgear") lt is suitable for
three-phase AC 50Hz power system, for power plants, substations and
industrial and mining enterprises of the distribution room to
accept and distribute electrical energy, and the circuit control,
protection and monitoring.
Reference standard
The switchgear is designed and manufactured according to the
following standards:
GB11022 high voltage switchgear and control equipment standard
common technical requirements;
GB3906 3-40.5kV AC metal enclosed switchgear and control equipment;
GB1984 AC high voltage circuit breaker;
DL/T404 indoor AC high voltage switchgear ordering technical
conditions;
IEC60694 2002 High voltage switchgear and control equipment
standard common technical requirements IEC62271-200 rated voltage
above 1kV 52kV and below AC metal enclosed switchgear and control
equipment;
High voltage switchgear and control equipment -Part 100:High
voltage AC circuit breakers.
Normal service condition
●Ambient air temperature: maximum temperature+40℃, minimum
temperature-10℃;
●Altitude:≤1000m;
●Surrounding relative humidity: daily average ≤95%, monthly average
≤90%;
●Ambient air: not suitable for places with corrosion,serious
pollution, flammable gas and violent vibration;
●lf an earthquake occurs, the intensity of the earthquake cannot
exceed 8.
Main feature
●The cabinet body is made of aluminum zinc plate processed byCNC
equipment, spliced or riveted by bolts, and the structure is fully
assembled.
● lt can be equipped with ZN85-40.5 vacuum circuit breaker
handcart,VN1,VD4 or HD4 vacuum circuit breaker handcart at the same
time, and the main bus line of the switch cabinet is through
without the transition cabinet.
●Cable room space is sufficient, and the clean air distance between
phases can be ensured to be greater than 300mm, and there is no
need to install insulation partition between phases.
Main technical parameters
| item | unit | argument |
| Rated voltage | kV | 40.5 |
| Rated insulation level | Lightning impact voltage (full wave) | kV | 185 |
| Power frequency withstand voltage (1min) | 95 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630;1250;1600;2000 |
| Rated short circuit breaking time | Power frequency withstand voltage (1min) | kV | 20,25,31.5 |
| Rated short circuit closing current (peak) | kA | 50,63,80 |
| Rated dynamic stable current (peak) | kA | 50,63,80 |
| 4s Thermal stable current(RMS) | kA | 20,25,31.5 |
| Case protection class | | IP4X |
| Overall dimensions (width×depth×height) | Vacuum breaker cabinet | mm | 1400x2800x2600 |
| SF6 Short-circuit cabinet |
