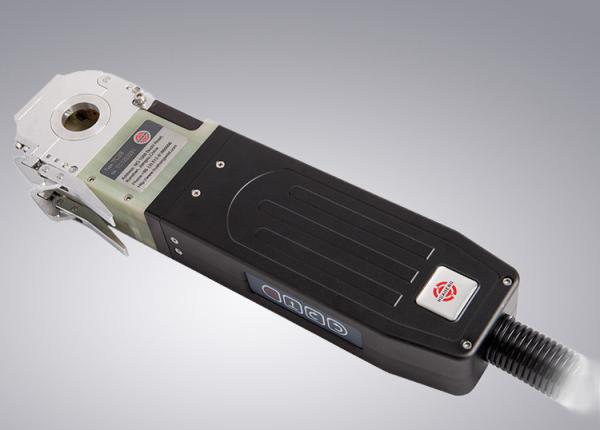

TC26 Automatic Tube Welding Head For Electronics Industry

Description

The welding head is a specialized welding head designed for the butt joint of various pipe fittings, specifically for orbital automatic tungsten arc welding without welding wire. Prior to welding, the sealing cavity is filled with protective gas to ensure excellent protection of the weld seam. According to customer requirements, we can customize the compound fixture within the specified pipe diameter range. This fixture system can precisely position the welded parts without the need for positioning spot welding, thereby providing customers with high-efficiency and high-quality special welding guns. This machine can be used in conjunction with Tube Master200, iOrbital4000, and iOrbital5000 program-controlled welding power sources, enabling precise all-position TIG tube-to-tube welding. It features high reproducibility of welding results and ideal welding outcomes. It is mainly employed in industries such as electronics, instrumentation, pharmaceuticals, engineering installation, military, and nuclear power.


The main part of the welding head is made of aluminum, and the structure is light;

The sealed design is adopted, and the protection effect is more sufficient;

Patented flexible automatic centering fixture, precise positioning;

Suitable for tube welding of thin-walled carbon steel, stainless steel, titanium and titanium alloys;

Self fusion welding method;

Equipped with operation buttons on the welding head, the welding head is easy to use and suitable for on-site installation.

TC26TC36TC76TC156TC-2TC-3TC-4
Weldable materialCarbon steel, stainless steel, titanium alloyCarbon steel, stainless steel, titanium alloyCarbon steel, stainless steel, titanium alloyCarbon steel, stainless steel, titanium alloyCarbon steel, stainless steel, titanium alloyCarbon steel, stainless steel, titanium alloyCarbon steel, stainless steel, titanium alloy
Weldable tube diameter(mm)Φ6~Φ22(1/4″~7/8″ )Φ6~Φ32(1/4″~1 1/4″ )Φ19.05~Φ63.5(3/4″2 1/2″ )Φ50.8~Φ168.3(2″~65/8″)Φ12.7~Φ50.8(1/2″~3″ )Φ19.05~Φ7(3/4″~3″ )Φ38.1~Φ101.6(2″~4″)
Tungsten OD(mm)Φ1.0;Φ1.6Φ1.6;Φ2.4Φ1.6;Φ2.4Φ2.4;Φ3.2Φ1.6;Φ2.4Φ1.6;Φ2.4Φ2.4;Φ3.2
Rotation speed(rpm)0.6~120.3~60.2~60.06~1.20.24~4.80.2~40.095~1.9
Protective gasArgonArgonArgonArgonArgonArgonArgon
Cooling methodwater coolingwater coolingwater coolingwater coolingwater coolingwater coolingwater cooling
Cooling flow(ml/min)≥300≥300≥300≥300≥300≥300≥300
Rated current60A duty cycle 60%65A duty cycle 60%75A duty cycle 60%100A duty cycle 60%75A duty cycle 60%75A duty cycle 60%100A duty cycle 60%
Main dimensions(mm)
A8098145295135160195
B404772150657997
C40414361383857
D340360412630426453497
Weight(kg)2.0(without cable)2.0(without cable)3.0(without cable)10.5(without cable)2.5(without cable)3.5(without cable)6(without cable)
Dimension(mm)340*80*40360*120*41412*165*43630*330*61426*155*38453*177*38497*230*57
