Description
Tube Master 200 digital welding power source is an automatic
program-controlled welding power source designed and manufactured
by Huaheng Company with advanced technology. The welding power
source adopts the new inverter power supply and control technology
in the welding field, and is the first in the industry to use a
large color touch screen as the human-machine interface, which is
advanced, digital, easy to operate, intelligent, expandable, and
reliable. The power supply provides precise control of current,
rotation and shielding gas, centrally sets and stores various
functional parameters in all-position welding, and distributes
synchronous and precise control. This power supply is specially
designed and manufactured for thin walled tubes/tubes. It can be

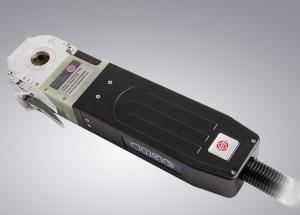

used with TC series products manufactured by Huaheng Company.
Mainly used in chemical, food, medicine, electronic pipeline,
various heat exchangers and other industries.
Performance
The control interface includes six major interfaces, namely, work
interface, programming interface, configuration interface, file
interface, library interface and help interface; It has the
function of automatic calculation of various welding parameters,
which can easily realize the automatic welding process parameter
matching of thin-walled pipes and tubes; With an expert parameter
library, it can automatically calculate and generate welding
programs for different pipe diameters and wall thicknesses; Perfect
fault detection, directly display the cause of the fault; With U
disk programmer import and export functions, it is convenient to
replace the welding process program; With parameter adjustment
memory function, it can realize online real-time parameter
adjustment memory, and can realize the comparison display of
parameters before and after djustment; During the welding process,
the welding parameters of current and speed can be adjusted at any
time to meet the special requirements of certain welds; The power
supply has the functions of software remote upgrade and U disk
upgrade, and has offline programming function.
Technical parameter
Type | Inverter |
Welding current | 5～200A |
Duty cycle | 200A 30%/110A 100% |
Floating voltage | 60V |
Input voltage | 220V(-10%~+10%) 50/60Hz |
Power | 4.2KVA |
Insulation/Protection | F/IP21S |
Printer | Needle printer |
Working environment temperature | -10°C~+40°C |
Transportation&store temperature | -25°C~+55°C |
Cooling type | Air/water |
Display | 10.4" color touch screen |
Control function | Gas/Current/Rotation |
