    Small Cnc Swiss Lathe Machine Sm2052 Spindle Fanuc Controller

    Ask Lasest Price
    Brand Name : Lu Young
    Model Number : sm205
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 100sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Small Cnc Swiss Lathe Machine Sm2052 Spindle Fanuc Controller

    Technical Parameters:

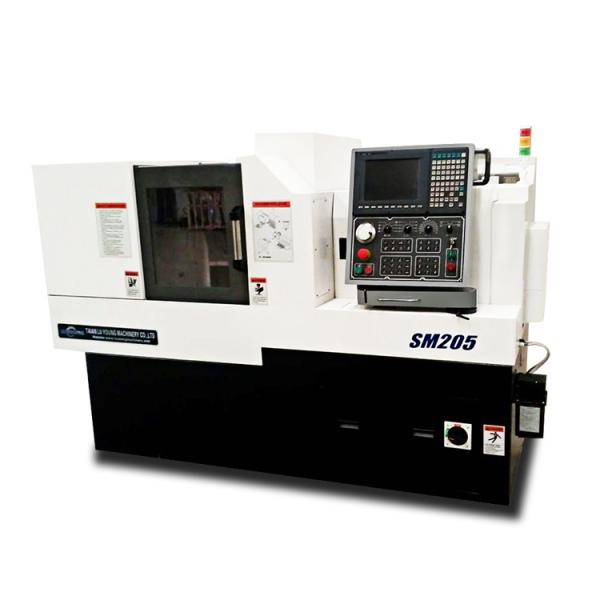

    This is a Swiss type CNC turning lathe machine, also known as a Swiss CNC lathe. It is designed in a horizontal type for precision turning applications.

    DescriptionUnitSpecifications
    Processing capacityMax machining diametermm¢20
    Strokemm250
    Max. Turning Diametermm¢20
    Main Spindle RPMrpm10000
    Sub Spindle RPMrpm8000
    Cross Driven Toolsrpm5000
    Main/Sub Spindle CS axis indexing minimum unit1/1000(0.001)
    Rapid Traverse RateX1 axism/min24
    Y/Z1/X2/Z2 axism/min32
    Number of toolsO.D Toolsea6
    Front Work Toolsea5
    Cross Driven Toolsea4
    Back Work Toolsea4(fixed)
    O.D Tools specificationmm□12×12
    Front Work Tools diametermm(Standard)¢25
    Power Tool Chuck SpecificationsmmER16
    MotorsSpindle motorkw2.2/3.7
    Sub Spindle motorkw1.5/2.2
    Servo axis motorkw0.5
    Cross Driven Tools motorkw0.75
    Lubrication pump motorw100
    Coolant motorkw0.4(pressure 0.5bar)
    OtherCoolant tank capacityL180
    Lubrication tank capacityL1.8
    Height from floor tospindle centermm1000
    Floor space(L)mm2610
    (W)mm1530
    (H)mm1674
    Mass of machinekg3600
    CNC control unitsetFANUC oi TF PLUS

    Packing and Shipping:

    Product Packaging:

    • The CNC lathe machine will be securely packed in a wooden crate to ensure safe transport.
    • All loose parts and accessories will be properly secured within the crate.
    • The crate will be labeled with the product name, model number, and shipping address.

    Shipping:

    • The CNC lathe machine will be shipped via a reliable and reputable shipping carrier.
    • The shipping carrier will provide a tracking number for the customer to track the shipment.
    • The customer will be notified of the estimated delivery date and time.
    • The customer is responsible for inspecting the product upon delivery and notifying the shipping carrier of any damages.
