    Customizable Steel Pipe Production Line with Max Speed 120m/min

    Ask Lasest Price
    Brand Name : Tengtian
    Model Number : HG 76
    Certification : CE,ISO9001, BV
    Price : $100000 to $1 million
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets/Yearly
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Customizable Steel Pipe Production Line with Max Speed 120m/min

    Details

    Welded carbon steel Tube Mill Max Speed 120m / min Diameter 12-63mm High Frequency Welded Pipe Mill

    Product Information


    HG50 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of Ф12~63mm in diameter and 0.5~2.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.


    Model

    Serial numberModelThickness(mm)Specification(mm)Speed(m/min)main engine(kw)Power(kw)area
    1H200.3-18-2030-12055607*50
    2H320.3-2.012-3230-120751007*50
    3H500.8-2.516-5030-1101101507*60
    4H600.8-320-6030-1001322007*65
    5H761-312-7630-1003202508*80
    6H891-432-8930-803503008*80
    7HG1141.5-545-11430-6040030010*100
    8HG1653-760-16530-5060040010*110
    9HG2194-8114-21920-4080050012*150
    10HG2734-10114-27315-30100060018*160
    11HG3254-12165-32510-30120060018*180
    12HG4264-16165-4268-25140080018*180
    13HG5084-20219-5088-202000100021*180

    Production Process

    Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage

    About us

    About us

    New Full Automation

    The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.

    Qualification

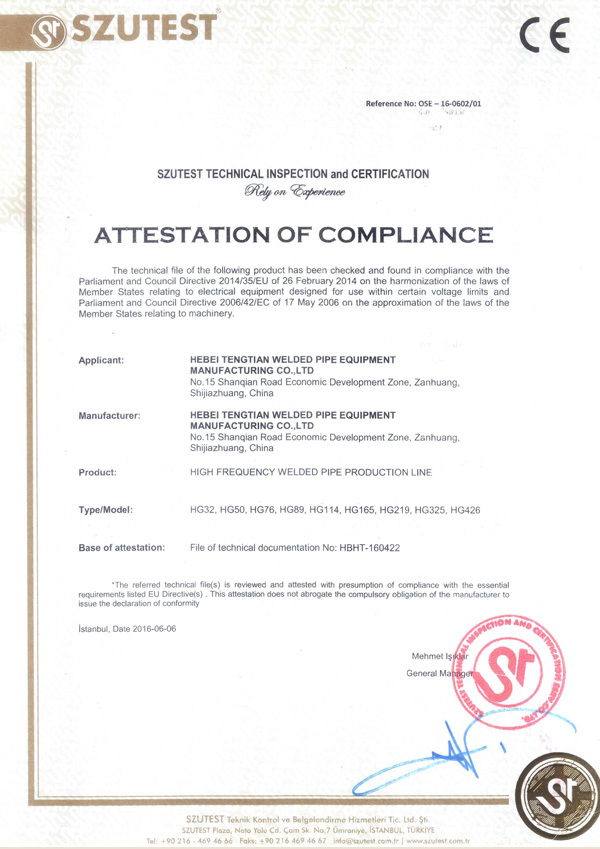

    Attestation of compliance
    Supper assessment certificate
    CNAS

    Our Services

    1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
    2.) Warranty Team
    One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
    3.) We supply the pre-sell and after-sell service.
    pre-sell service: workshop design, and production output design
    after-sell service: installation and training, and the skilled engineer for working.
    4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
    5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
    6.) We will be responsible for the loading and shipping .

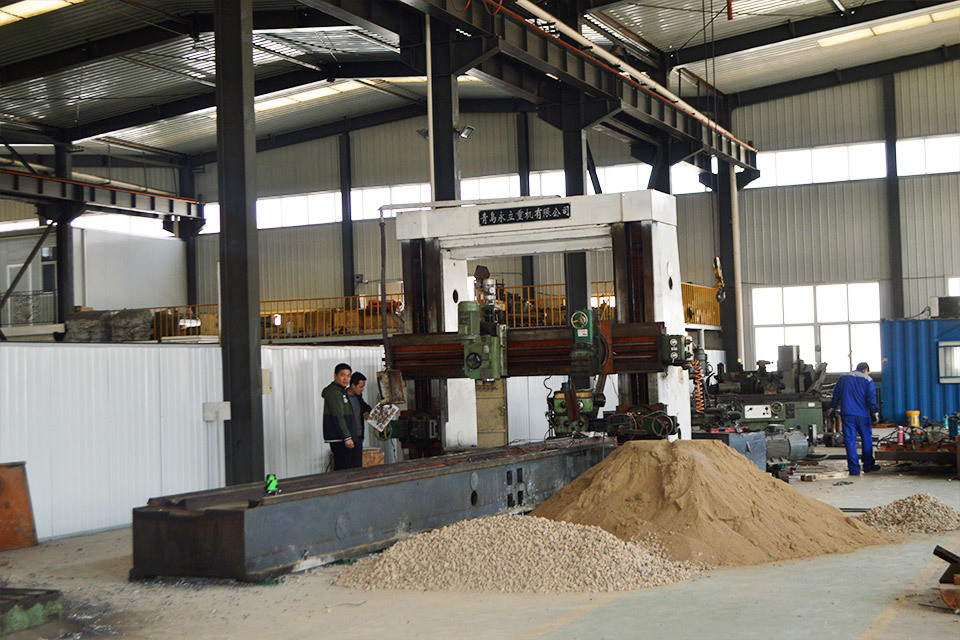

    Drill hole
    Drill hole
    Milling face

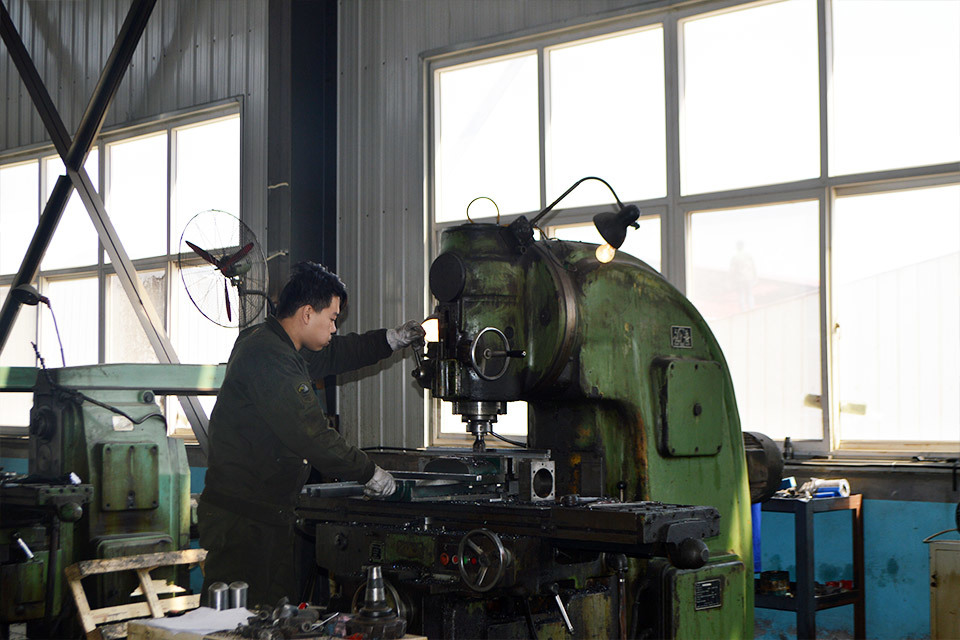

    Milling Machine
    Drilling machine

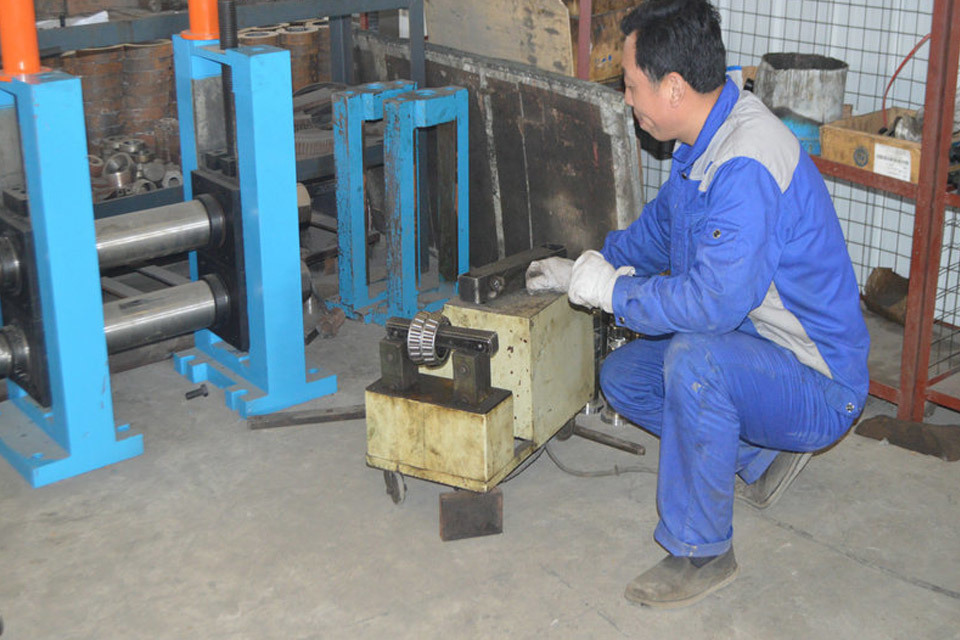

    Bearing heating

    Our customers

    Our company specializes in the production of pipe mill, slitting line,cold roll forming,stainless steel pipe mill and other equipment,On the basis of the introduction of the advanced technology of Japan, the company is innovative and the machine are manufactured in strict accordance with the standard of Japan.Advanced configuration,stable quality,excellent performance,with excellent market visibility and reputation,our machine has reached the world's leading level.

    About us

    Exhibition

    exhibition
    exhibition
    exhibition
    exhibition

    Packing and shipping

    Our equipment has been exported to dozens of countries and regions such as Egypt, Greece,South Korea,Vietnam,Indonesia,South Africa,etc.,and received favorable comments from domestic and foreign customers.

    Loading and shipping
    Loading and shipping
    Loading and shipping
    Loading and shipping
    Loading and shipping
    Loading and shipping

    Contact us

    Hebei Tengtian Welded Pipe Equipment Manufacturing Co., Ltd.

    Add:No.15,Shanqian Road,Economic Development Zone,Hebei,China
    Mobile Number:+86 18233100172
    Tel:+86-311-83025332
    Email:pipemill@sjzztsd.com
