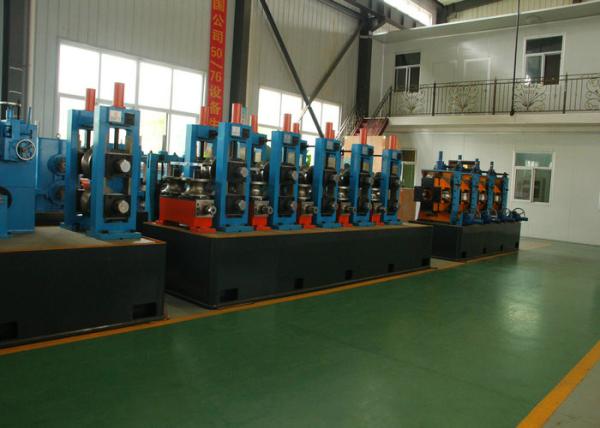

    Adjustable Pipe Size Steel Pipe Production Line Carbon Steel With 100m / Min Running Speed

    Ask Lasest Price
    Brand Name : Tengtian
    Model Number : HG165
    Certification : CE/ISO9001/BV
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 set per year
    Delivery Time : three month
    Price : negotiation
    • Product Details
    • Company Profile

    Adjustable Pipe Size Steel Pipe Production Line Carbon Steel With 100m / Min Running Speed

    Adjustable Pipe Size Steel Pipe Production Line Carbon Steel With 100m / Min Running Speed


    The steel pipe production line with high frequency solid welder,can product he round pipe,square pipe and rectangular pipe in high speed,and also can product the L,T,Z shape pipe,reduce the cost of roller ensure the quality of the finish pipe.


    Product Process:

    material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
    HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table


    The Basic Parameters:

    stands of forming mill7
    stands of sizing mill5
    shaft material40Cr
    round pipe diameter

    60-165mm

    Round pipe thickness

    3-7mm

    square pipe size60×60-150×150mm
    square pipe thickness2.5-5.0mm


    ERW Tube Mill Other Model

    ModelDiameter RangePipe ThicknessLine Speed(m/min)
    HG208-25.4MM0.3-1.2MM120
    HG3210-32MM1.4-1.5MM120
    HG5016-76MM0.7-2.5MM30-120
    HG7625-76MM1-4MM30-100
    HG8932-89MM1-4.5MM30-80
    HG11445-114MM1.5-5.0MM30-60
    HG16560-165MM3-7MM30-50
    HG219114-219MM4-8MM20-40
    HG273114-273MM4-10MM15-30
    HG325165-325MM4-10MM10-30
    HG426165-426MM4-12.7MM8-25
    HG508219-508MM4-16MM8-20


    This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
