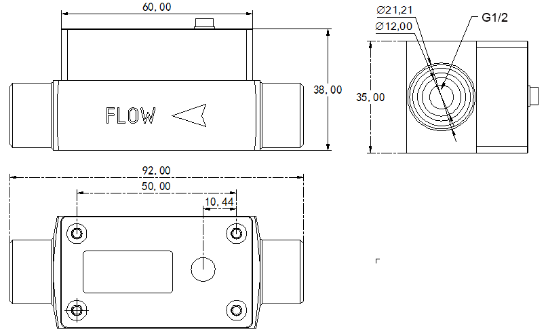

Dimension
CAFS5012 joggle NTP 1/2”Calibration method Air, and the
20℃,101.325kPa
CAFS5012 joggle NTP 1/2”Calibration method Air, and the
20℃,101.325kPa is a high-performance, customizable gas flow measurement device
designed for a diverse range of industrial, medical, and commercial
applications. This series offers advanced features and
customization options that differentiate it from other models,
ensuring precise and reliable gas flow measurement for various
industries.
Product Features
1. High Measurement Accuracy
CAFS5012 joggle NTP 1/2”Calibration method Air, and the
20℃,101.325kPa offers an accuracy of ±1.5% FS, providing reliable and precise measurements for accurate process
control and monitoring.
2. Wide Flow Measurement Range
The series covers a broad flow range from 0-50 SLPM to 400 SLPM, with multiple selectable flow ranges of 50, 100, 200, 300, and
400 SLPM. This makes the CAFS5012 suitable for both low and high
flow applications.
3. Customizable Response Time
With a base response time of 65 ms, the CAFS5012 allows for customization to 10, 20, 30, 50, 80, 100, 200 ms, catering to different measurement speed requirements and
applications.
4. Advanced Communication Capabilities
The CAFS5012 supports RS485 Modbus communication, facilitating integration into complex control
systems and enabling easy data collection and system management.
5. High Scale Ratio
The flow meter features an impressive 50:1 range ratio, accommodating a wide range of flow rates with a single device,
providing versatility in measurement applications.
6. Flexible Output Options
The device offers 1-5 VDC analog output, allowing for easy connection to various data
acquisition systems and ensuring compatibility with a range of
monitoring and control setups.
7. Durable Construction
Constructed from stainless steel as standard, with aluminum alloy available upon request, the CAFS5012 is built for durability and
resistance to harsh conditions.
8. High Pressure Capability
The CAFS5012 Series can handle up to 0.8 MPa of pressure, customizable based on specific requirements, making
it suitable for demanding industrial processes.
9. Wide Temperature Range
Operating temperatures range from -10°C to 65°C, with storage temperatures from -25°C to 85°C, ensuring reliable performance across a wide range of
environmental conditions.
10. High Protection Rating
With an IP40 protection level, the CAFS5012 is designed to function effectively
in various industrial environments.
11. Reliable Calibration Method
The meter uses air at 20°C, 101.325 kPa for calibration, providing a standard and reliable basis for
accurate measurements.
12. Easy Installation
Features NPT 1/2” connection threads for straightforward installation and
integration into existing systems.
Performance Parameters
| Feature | CAFS5012 joggle NTP 1/2”Calibration method Air, and the
20℃,101.325kPa |
|---|
| Flow Range | 0-50 / 100 / 200 / 300 / 400 SLPM (customizable) |
| Power Supply Voltage | 8~24 VDC, 50 mA |
| Accuracy | ±1.5% FS |
| Response Time | 65 ms (customizable: 10, 20, 30, 50, 80, 100, 200 ms) |
| Maximum Pressure | 0.8 MPa (customizable) |
| Communication Mode | RS485 Modbus |
| Scale Ratio | 50:1 |
| Output Method | Analog Outputs of 1-5 VDC |
| Temperature Range | Medium Temperature: -10°C to 65°C<br> Ambient Temperature:
-25°C to 85°C |
| Protection Level | IP40 |
| Calibration Method | Air at 20°C, 101.325 kPa |
| Material | Stainless Steel (Aluminum Alloy customizable) |
| Connection Mode | NPT 1/2” |
Applications
The CAFS5012 Series Mass Flow Meter is ideal for a variety of
applications, including but not limited to:
Industrial Processes Used in manufacturing and production processes for precise gas
flow measurement and control.
Medical Equipment Applied in medical devices and systems where accurate gas flow
measurement is critical.
Petroleum Industry Utilized for gas flow measurement in oil and gas exploration,
extraction, and processing.
Instrumentation Suitable for use in various scientific instruments and analytical
devices.
Gas Measurement Ideal for measuring different types of gases in various industrial
and commercial settings.
Chemical Processing Used in chemical production and processing to monitor and control
gas flow.
Smelting Operations Applied in metal smelting processes for accurate measurement of
gases.
Food Processing Used in the food industry for gas flow measurement in production
and packaging processes.
Mechanical and Electrical Equipment Suitable for integration into mechanical and electrical systems
requiring gas flow measurement.
Packing and Inspection
When opening the box, please follow these steps to ensure the
product's condition and completeness:
Check External Packaging
Inspect the external packaging for any visible damage.
Verify Contents
Ensure the quantity and specifications of items match the packing
list. Look for the following documents:
- Packing List
- Product Manual
- Inspection Certificate
- Wiring Diagram
Model and Specifications
| Product Model | Latus Rectum | Joggle | L | H | W | D | Specifications |
|---|
| CAFS 5012 | 12 | NPT 1/2” | 83 | 27 | 35 | 8 | 0-50 / 100 / 200 / 300 / 400 SLPM (L / MIN) |
