    Semi-Automatic Winding Cable Tie Machine Automatic Wire Binding Machine

    Ask Lasest Price
    Brand Name : CX
    Model Number : CX-90
    Price : EXW, FOB, CIF, C&F
    Payment Terms : T/T
    Supply Ability : 500sets per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

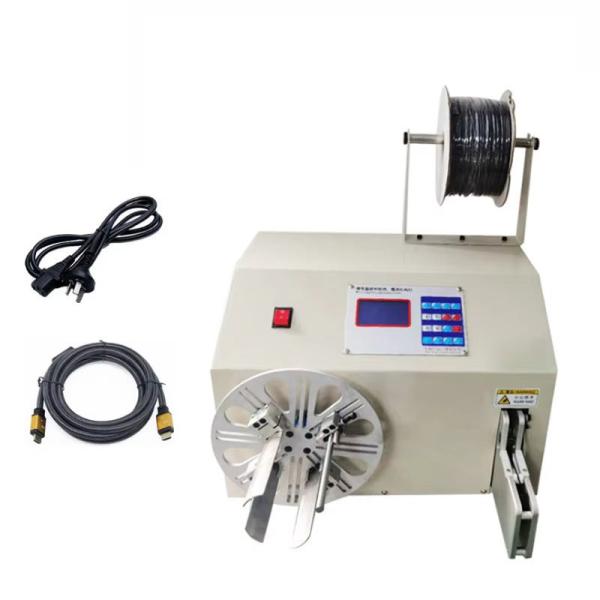

    Semi-Automatic Winding Cable Tie Machine Automatic Wire Binding Machine

    Semi-Automatic Winding Cable Tie Machine Automatic Wire Binding Machine


    Features:

    1, This machine is suitable for AC power line, DC power line, USB data line, video line, HDMI HD line and other transmission lines. It is twisted and tied into bundles with rubber coated iron core. It can also be used for other industries that need to be fastened with rubber coated iron core, such as clothes hanger and so on.
    2, Employees only need to fix the wire head, use the foot switch to realize winding, take it out and put it at the binding port for automatic binding, and the whole process takes only 4-5 seconds. The machine can set the binding length and the number of winding coils, and can count the output. The machine adopts PLC program control and text display for parameter setting, which is simple and convenient to operate. It can reduce the fatigue intensity of employees, improve work efficiency and save ties.


    The Auto Wire Cable Winding Binding Tying Machine with strong points:

    • LCD Display Touch screen with fast production setup.
    • Tying part Fast Tying speed of 0.7s/time

    Technical Parameter

    ModelCX-90-830CX-90-1435CX-90-4080

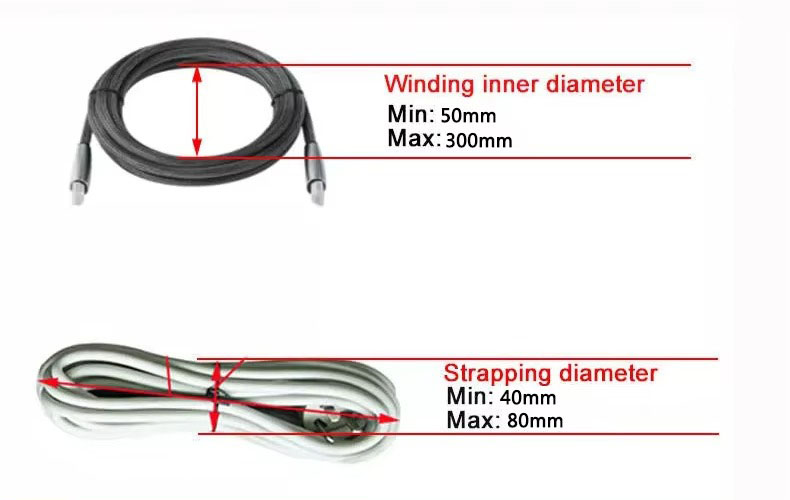

    Winding inner diameter50 - 200 mm50 - 250 mm50 - 300 mm
    65 - 125 mm120 - 190 mm200 - 350 mm
    Tying outer diameter8 - 30 mm18 - 45 mm40 - 80 mm
    3 - 28 mm15 - 40 mm40 - 90 mm
    Tying shapeRound, long, 8 shapeRound, long, 8 shapeRound, long, 8 shape
    Winding speed66 - 75 circles/min66 - 75 circles/min66 - 75 circles/min
    Noise level< 70 dB(A)< 70 dB(A)< 70 dB(A)
    Power supply110, 220 V (50 - 60 Hz)110, 220 V (50 - 60 Hz)110, 220 V (50 - 60 Hz)
    Operation interfaceBilingualBilingualBilingual
    Dimension500 * 300 * 400 mm500 * 300 * 400 mm500 * 300 * 400 mm
    Weight40 kg52 kg65 kg
