MOBILE CONCRETE BATCHING PLANT PRICE automatic complete compact YHZ60

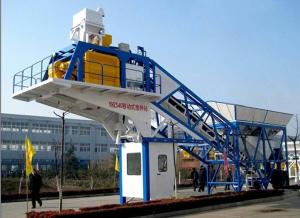

Mobile concrete batching plant
Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. As a manufacturer of concrete batching plant with over 20-year experience, we have YHZ series of mobile concrete batching plant. The capacity is from 25m3/h to 90m3/h. Welcome to contact us for details and quotations.
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
-
Mobility Features: One of the key features of a mobile batching plant is its mobility. It is designed to be easily transported from one location to another. The plant is mounted on a trailer or a chassis with wheels, allowing it to be towed by a vehicle. Some models may also include folding mechanisms or telescopic legs to facilitate quick setup and dismantling.
-
Optional Features: Mobile batching plants may offer additional features to enhance their functionality and convenience. These can include built-in cement silos for cement storage, integrated control cabins for operator comfort, and auxiliary equipment such as screw conveyors or cement augers for efficient material handling.
The mobile batching plant offers the advantages of on-site concrete production, eliminating the need for transportation of ready-mixed concrete. It allows for immediate and continuous availability of fresh concrete, enabling efficient construction operations, reduced dependency on external suppliers, and cost savings.
It's important to note that specific features, capacities, and configurations of mobile batching plants may vary depending on the manufacturer and model. Therefore, it is recommended to refer to product catalogs or consult with manufacturers for detailed information on a specific mobile batching plant.
Hunan Sunny Intelligent Machinery Co.,LTD.
Hunan Sunny Intelligent Machinery Co., LTD (hereinafter referred to
as Sunny), founded in 1995, is one of the large-scale professional
machinery leading companies in Hunan Province with the integration
of research and development, design, production, sales,
installation, and after-sales service. We mainly have complete sets
of professional mechanical equipment such as concrete mixing
plants, stabilized soil mixing plants, construction equipment of
concrete pavement, concrete environmental protection equipment,
crushing and sand-processing equipment, sand-processing buildings
on sale. The company has its base in Construction Machinery
Supporting Industrial Park, High-tech Zone, Ningxiang, Changsha
City, Hunan Province, and covers a plant area of 58,000 WELCONE TO
SUNNY square meters
