    Portable Concrete Batching Plant Mobile Ready Mix

    Ask Lasest Price
    Brand Name : Sunny
    Model Number : YHZ60
    Price : USD40000-60000 PER SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 SET PER MONTH
    Delivery Time : 20-35DAYS
    • Product Details
    • Company Profile

    Portable Concrete Batching Plant Mobile Ready Mix

    discount portable mixing plant model YHZ60 mobile concrete batching plant price

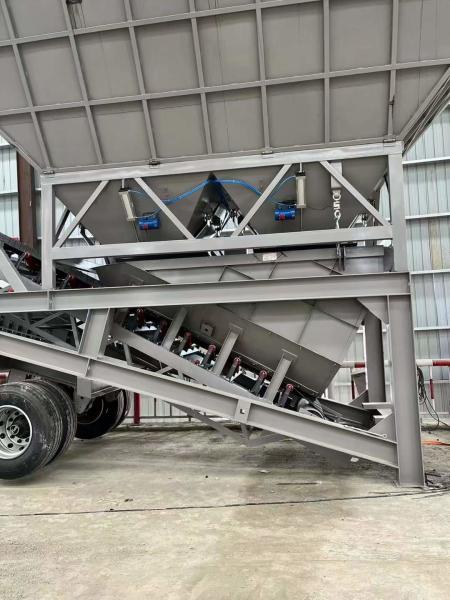

    Mobile concrete batching plant

    The YHZS60 concrete batching plant is a versatile and efficient mobile concrete mixing plant designed for medium to large-scale construction projects. It combines mobility, flexibility, and advanced features to deliver high-quality concrete on-site. With its robust construction and user-friendly design, the YHZS60 is a popular choice among contractors and construction companies.

    The YHZS60 concrete batching plant incorporates various components and features that contribute to its performance and productivity:

    1. Mobile Design: The YHZS60 is a mobile batching plant, meaning it is mounted on a trailer or a chassis with wheels. This mobility enables easy transportation, quick installation, and relocation to different construction sites. It offers flexibility and adaptability, making it suitable for projects with changing requirements or remote locations.

    2. Compact Structure: Despite its mobility, the YHZS60 maintains a compact and space-efficient structure. It is designed to occupy a relatively small footprint, making it suitable for projects with limited space or when multiple batching plants need to be installed in close proximity.

    3. Aggregate Batching System: The YHZS60 is equipped with multiple aggregate bins that store different types of aggregates, such as sand, gravel, and crushed stone. These bins have individual compartments and are equipped with a weighing system to ensure accurate batching of aggregates.

    Model
    HZS25
    HZS35
    HZS50
    HZS60
    HZS75
    HZS90
    HZS120
    HZS150
    HZS180
    Discharging Capacity (L)
    500
    750
    1000
    1000
    1500
    1500
    2000
    2500
    3000
    Charging Capacity(L)
    800
    1200
    1600
    1600
    2400
    2400
    3200
    4000
    4800
    Maximum Productivity(m³/h)
    25
    35
    50
    60
    75
    90
    120
    150
    180
    Charging Model
    Skip Hopper
    Skip Hopper
    Skip Hopper
    belt conveyor
    Skip Hopper
    belt conveyor
    belt conveyor
    belt conveyor
    belt conveyor
    Standard Discharging Height(m)
    1.5~3.8
    2~4.2
    4.2
    4.2
    4.2
    4.2
    3.8~4.5
    4.5
    4.5
    Number of Species of Aggregate
    2~3
    2~3
    3~4
    3~4
    3~4
    4
    4
    4
    4
    Maximum Aggregate Size(mm)
    ≤60mm
    ≤80mm
    ≤80mm
    ≤80mm
    ≤80mm
    ≤80mm
    ≤120mm
    ≤150mm
    ≤180mm
    Cement/Powder Silo Capacity(set)
    1×100T
    2×100T
    3×100T
    3×100T
    3×100T
    3×100T
    4×100T or 200T
    4×200T
    4×200T
    Mixing Cycle Time(s)
    72
    60
    60
    60
    60
    60
    60
    30
    30
    Total Installed Capacity(kw)
    60
    78.5
    111
    145
    110
    198.06
    210
    230
    288
