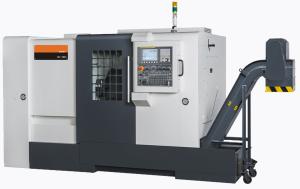

    800-1100mm CNC Turn Mill Machine Single Spindle Hard Rail Precision Lathe With Tailstock

    Ask Lasest Price
    Price : negotiable
    Brand Name : H.SON
    Payment Terms : Western Union, MoneyGram, T/T
    • Product Details
    • Company Profile

    800-1100mm CNC Turn Mill Machine Single Spindle Hard Rail Precision Lathe With Tailstock

    AT - 361MY:Processing Length 800-1100MM Single - Spindle Hard - Rail Precision Lathe With Tailstock


    Machine tool technical parameter table:
    ContentUnitsAT-361MY
    TurretTurret specificationsModelTCSM
    Power turret
    Turret type/Number of toolspcsBMT65-12T
    TravelMaximum rotation diameter of the
    hod
    mm700
    Two centroid distancemm1250
    ZProcessing lengthmm1100
    Maximum machining diametermm380
    Bar processing diametermm75(92)
    System
    configuration
    FANUCOI-TF
    Power tools motorKW3.7
    SpindleOil pressureInch10(12)
    Nose endTypeA2-8
    Through hole diametermm92(106)
    Bearing typeTypeNN3026(3028)
    Bearing diametermm130(140)
    Spindle motorKW11-15(guangyu)
    Spindle speedrpm3000(2500)
    Secondary
    spindle
    OilpressureInch/
    Nose endType/
    Through hole diametermm
    Spindle motorKW
    Spindle speedrpm/
    X-axisTravelmm230
    Speedm/min20
    Servo motorKw3.0
    ScrewmmR32/10
    Repeatability0.003
    Z-axisTravelmm1100
    Speedm/min20
    Servo motorKw3.0
    ScrewmmR40/10
    Repeatabilitymm0.007
    Y-axisTravelmm100
    Speedm/min15
    Servo motorKw3
    ScrewmmR32/10
    Repeatabilitymm0.005
    B-axisTravelmm
    Speedm/min
    Servo motorKw
    Screwmm/
    Repeatabilitymm
    Tail seatControl modeTypeprogrammable
    Mandrel outer diametermm80
    Morse taperTypeMT5
    X TrackTypeHard track
    Y TrackTypeHard track
    Z TrackTypeHard track
    Water tank capacityLiter300

    Mechanical size
    Floor areacm355x177
    Mechanica weightkg6400
    Packing sizecm400×230x228

    AT-361MY Single-Spindle CNC Lathe

    1. Product Introduction

    The AT-361MY is a high - performance single - spindle CNC lathe with hard rails and a programmable tailstock. Engineered for industrial machining, it strikes a balance between precision and productivity.

    2. Product Features

    Machining Capacity

    • Turret: Equipped with a BMT55 - 12T power turret of TCSM model, enabling versatile cutting operations.
    • Travel: The lathe can handle a maximum rotation diameter of 700mm. With a Z - axis processing length of 1100mm, it is suitable for long - shaft workpieces. The maximum machining diameter reaches 380mm, and bar processing diameters range from 75 to 92mm.

    Precision

    • Axes: The X - axis travels 230mm with a speed of 20m/min and repeatability of 0.003mm. The Y - axis travels 100mm at 15m/min with 0.005mm repeatability. The Z - axis, with a travel of 1100mm at 20m/min, has a repeatability of 0.007mm.

    Configuration

    • Spindle: Powered by an 11 - 15kW wide - range motor, the spindle can reach speeds of up to 3000 (2500) rpm. It features a 10” (12”) oil - pressure nose end and A2 - 8 nose type.
    • System: Adopts the reliable FANUC 0I - TF system.
    • Tracks: Hard rails on X, Y, and Z axes ensure stable machining.

    3. Product Applications

    Machinery Manufacturing

    • Ideal for machining shafts, spindles, and gears for industrial machinery, meeting high - precision requirements.

    Automotive Parts Production

    • Can produce long - type automotive parts such as drive shafts and axles efficiently.

    Energy Equipment Fabrication

    • Manufacture components like long - rod parts for oil and gas pipelines with the lathe’s long - stroke machining capabilities.
