    5052Y CNC Lathe Machine With Powered Y Axis 12T Turret

    Ask Lasest Price
    Price : negotiable
    Brand Name : H.SON
    Payment Terms : Western Union, MoneyGram, T/T
    • Product Details
    • Company Profile

    5052Y CNC Lathe Machine With Powered Y Axis 12T Turret

    SPECIFICATION
    ProjectProject5052Y
    Machine tool structureBed frameHigh rigidity overall 30° step rail bed
    HeadstockLay Flat
    Chip removal methodBack row or side row
    chip conveyorSplit back row or side drain tank
    Internal guard methodStainless steel full protection
    Processing rangeMaximum turning diameter of bed550mm
    Maximum turning diameter of skateboard380mm
    Maximum machining diameter320mm
    Maximum machining length500mm
    Maximum rod material through hole diameter52
    Stroke and rapid traverseX-axis effective travel230mm
    Z-axis effective travel570mm
    X/Z axis fast movement rate25m/min
    Recommended X and Z axis motors≥15Nm
    Spindle parametersSpindle nose modelsA2-6
    Spindle through hole diameter66mm
    Maximum spindle speed4500r/min
    recommended spindle motor11KW/15KW
    Chuck and rotary cylinderspecifications8" 10"TK853 TK1075
    Distance from spindle center toground1075mm
    PrecisionX,Z axis repeat accuracy±0.005mm
    x and Z axis positioning accuracy0.003mm
    Screw guidex axis rail specifications45mm roller guide
    Z axis rail specifications45mm roller guide
    X axis lead screw specifications3210
    Z axis lead screw specifications4010
    Lead screw bearings2562 3062
    hydraulic tailstockTailstock Sleeve SpecificationsMT-5
    Tailstock travel450mm
    Tailstock pressure range4-25Mpa
    Tailstock movementProgrammable hydraulic movement
    tailstock structure45mm line rail

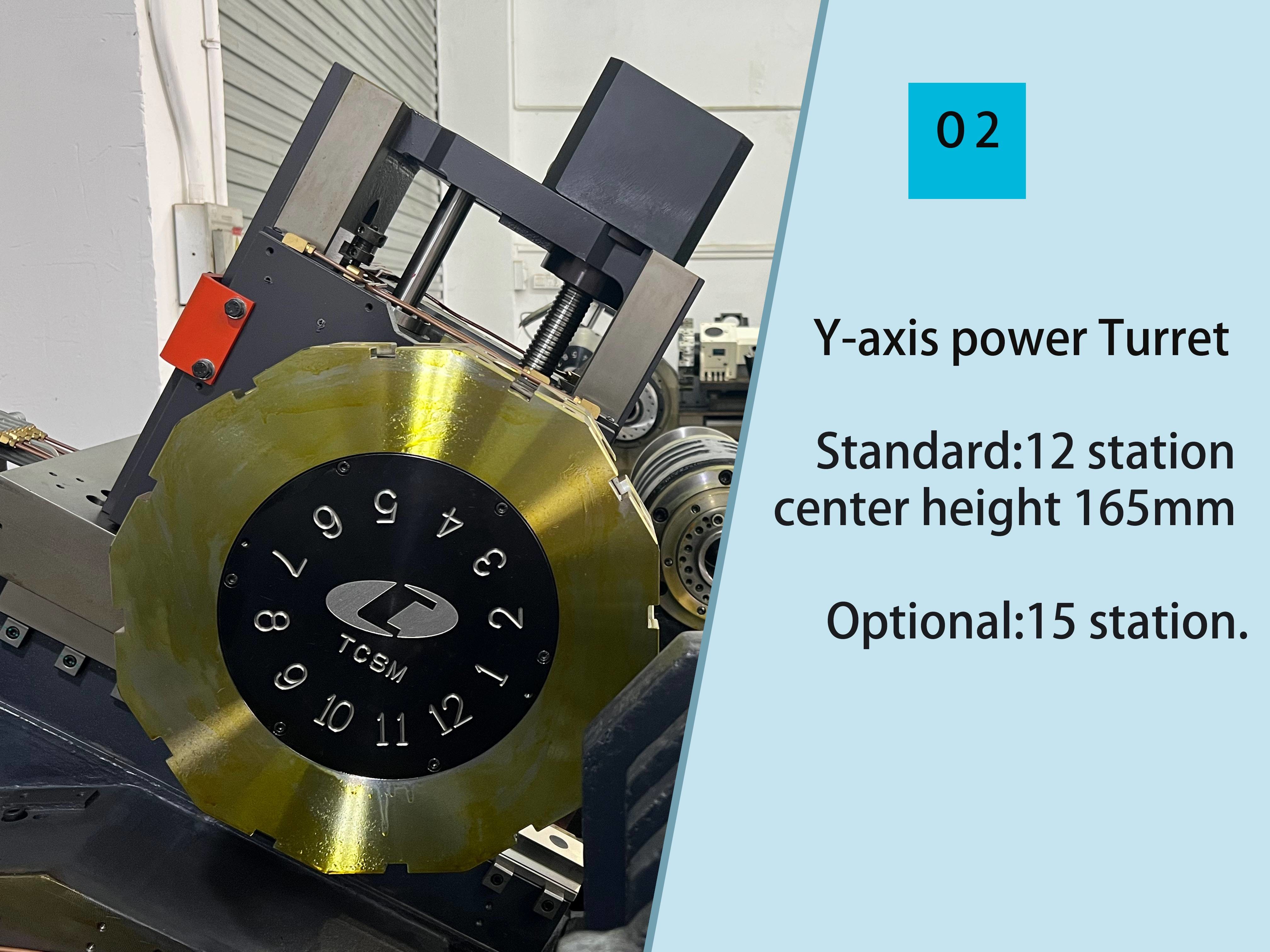

    Powered Y-axis turretY-axis travel±50mm
    Rectangular hard railplastic coating
    Number of stations12T
    Applicable tool holderBMT55
    DimensionsLength x width x height2400x1215x1500
    Net weight of lathe3.6T
