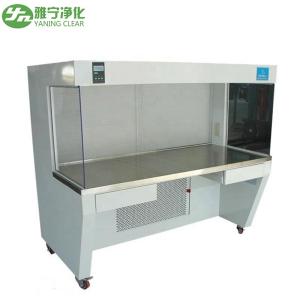

Structure and Advantages
The clean bench integrates a pre - filter, HEPA filter,
ventilators, and electrical components. It stands out with
remarkable features such as high cleanliness, low noise, excellent
mobility, and seamless integration with assembly lines. Achieving a
cleanliness level of Class 100, it meets the most stringent
industry standards. The horizontal design, combined with a flow -
through mechanism and an open table surface, ensures effortless
operation.
Intelligent Airflow Control
Equipped with an adjustable air volume fan system, users can simply
touch to adjust the voltage. This intelligent feature guarantees
that the wind speed within the work area remains in the optimal
range at all times.
Premium Work Surface and Cleanliness
Crafted with a stainless - steel work surface, the bench offers
durability and resistance to contamination. Maintaining an internal
cleanliness level of Class 100, this horizontal purifying workbench
serves as a versatile local clean workspace. The clean air flows in
a vertical, top - to - bottom direction, creating a sterile
environment.
Functionally, the horizontal clean bench acts as an air - purifying
workstation, primarily catering to the manufacturing zones of
precision products that demand a strictly controlled clean
environment. It draws in ambient air through a fan, channels it
through a static pressure box, and finally filters it via a HEPA
filter. The resulting purified air attains an ISO 5 clean class,
fully satisfying the production environment requirements.
Designed in accordance with US Federal Standard 209B (BS 5295),
this clean air bench delivers particle - free air, ensuring Class
100 compliance. The entire cabinet is constructed from cold -
rolled steel with a powder - coated finish, providing robust
protection against wear and corrosion. The work table is made of
thick SUS304 stainless steel (T = 1.0mm). For those requiring a
full SUS304 body, an additional charge applies.
Fitted with both a pre - filter and a HEPA filter, the unit excels
in air purification. Air is first drawn through the pre - filter
and then passes through a highly efficient HEPA filter. With an
astonishing efficiency rating of 99.99% using cold DOP and 99.97%
with hot DOP, it effectively captures all airborne particles as
small as 0.3 microns, ensuring a pristine working environment.
Clean bench parameter
| SPECIFICATIONS FOR LAMINAR FLOW CABINET |
| Item | single horizontal type | double horizontal type | double vertical type |
| Size | 960*750*1580 mm | 1200*820*1580 | 1500*700*1800 |
| Class level | class 100 @0.3 um(FED 209) |
| Rated air volume | 1200m3/h | 1800m3/h | 2300m3/h |
| Air velocity | 0.3-0.6 m/s |
| Filter Efficiency | 99.999%@ 0.3um H13,H14 |
| Power | 280W | 405W | 490W |
| Noise | 65dB |
| Power Supply | 220V/50Hz |
Clean bench class 100 application:
The clean bench is a kind of air purification equipment that
provides a high degree of local cleanliness and working
environment. Its use improves process conditions, ensures high
precision, high purity, high reliability, and improves product
quality and product quality. Large product yields have good
results. The worktable has a novel structure, beautiful appearance,
reliable operation, low energy consumption, and easy maintenance.
It is widely used in electronic and defense precision instruments,
instruments, biopharmaceuticals, food, sterile microbiological
inspection, and plants. Tissue culture, inoculation, and other
industries require scientific research and production departments
that require a local clean work environment.
Use environment and conditions:
Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle
size not less than 0.5μm, 1300);
Configuration option
① Material: Powder coated steel, Polish SUS 201 /304/316; Mirror SUS
201/304/316
②Supply Power: AC 1/3N 220, 380V/50, 60Hz
③Cover: no cover, manual lifting cover
Detail Image:
