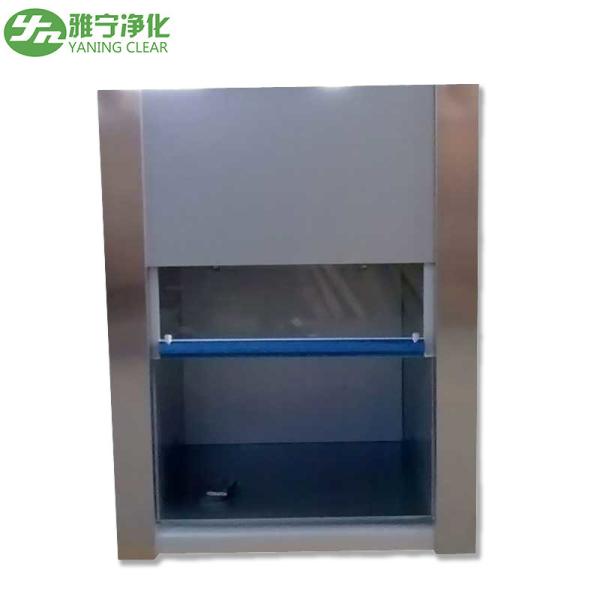

High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed

    Buy cheap High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed from wholesalers

    Buy cheap High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed from wholesalers
    • Buy cheap High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed from wholesalers
    • Buy cheap High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed from wholesalers
    • Buy cheap High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed from wholesalers

    High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed

    Ask Lasest Price
    Brand Name : YN
    Model Number : YN-V550
    Certification : CE/ISO
    Price : Reconsideration
    Payment Terms : T/T, Western Union, , L/C, D/A
    Supply Ability : 3000pcs/month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    High Performance Mini Laminar Clean Bench 0.2-0.6M/S Average Wind Speed

    Powder coating mini clean bench on the desk for data recovery


    1. Desktop cleam bench description:


    Product Information:


    The horizontal/vertical mini clean bench is a laminar local air purification device, an ultra-clean worktable, and an adjustable air flow fan system. After adjusting the fan operation, the clean work area wind speed can always be maintained within an ideal range. (According to customer requirements equipped with pressure gauges, clean benches, you can always grasp the HEPA filter resistance changes.)


    This is a kind of purifying workbench with strong usability. The dustless clean workbench has been widely used in various industries and scientific research departments such as electronics, medical and health, pharmaceuticals, precision instruments, and instruments.


    Performance Features:

    1, vertical manifold, quasi-closed stainless steel table, easy to operate.
    2, small, can be placed on the general test bench operation, easy to use in small studios.


    Desktop laminar flow cabinet designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100. Whole cabinet made of Cold Rolled steel powder coated. The work table is made of thick Stainless-steel (SUS304 T=1.0mm). Extra charge is applied for full SUS304 body.

    The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron


    2.Desktop clean bench parameter


    ModelYN-V550PYN-V550N
    Workzone PressurePositive pressureNegative pressure
    Airflow Velocity0.2-0.6m/s>0.5m/s
    HEPA Filter Efficiency99.999% efficiency 0.3um
    Average wind speed0.2-0.6M/S(Adjustable)
    Noise≤62αB(A)
    Maximum Consumption110W
    Power Supply110/220V±10%, 60/50Hz
    Internal Size480*340*370mm
    External Size550*460*700mm
    NW(Kg)35
    GW(Kg)41

    Customized design is welcome.


    3.Desktop clean bench instructions


    The place where this desktop clean bench is to be located should be in a clean workroom (preferably placed in a 100,000 clean room or 300,000 class clean room). After plugging in the 220V AC power, press the function shown on the control panel. Yes, normal sampling can be used continuously for two hours. When the power supply is insufficient, the AC power supply is recharged again and again. Before starting the machine, the work area and the housing of the clean bench should be carefully cleaned to remove surface dust. Minutes can be used for normal operation.
