Hydraulic System High Penetration Speed Multi Use Anchor Drilling Rig

Product Description:

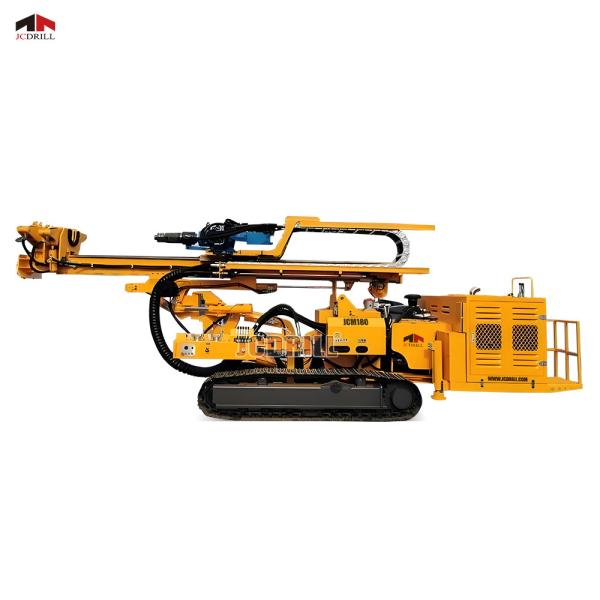

The JCM180 Crawler Anchor Drilling Rig Machine is your go-to heavy-duty rig engineered to perform under pressure. With its robust 132kW QSB5.9-C180 engine and double-speed drive system, this crawler hydraulic anchor rig provides outstanding torque, reliable speed, and high-grade climbing ability—up to 25°. Whether you're stabilizing rocky slopes, anchoring retaining walls, or installing foundation supports, this slope stabilization drill rig is built to deliver.

The machine’s unique swing frame structure allows for flexible multi-angle drilling, making it ideal for complex, uneven job sites. Its advanced hydro-cylinder and chain feeding system enables high-speed feed and retraction, reducing drilling time and boosting operational efficiency. Don’t just drill—drill with power, speed, and control.

Parameter:

Features:​

Advanced Technology for Geological & Civil Engineering Projects
The JCM180 Designed for geotechnical anchoring, soil nailing, and foundation support, this rig is a game-changer for construction engineers and geologists alike. With an adjustable clamp range of 60–219mm and a maximum passing diameter of 260mm, the rig is optimized for a wide variety of drilling engineering applications, from civil infrastructure reinforcement to mining support operations.
Boasting a high-frequency percussion system (1350 bpm) and powerful impact energy of 750 N·m, the JCM180 ensures consistent performance in both soft and hard strata. The variable torque ranges (5800–13600 Nm) allow for customization in drilling, making it versatile enough for every project phase—from pilot hole to anchoring installation.

Reliable Performance, Easy Transport, and Operator-Friendly Design
Compact yet powerful, the JCM180 is engineered with mobility and user comfort in mind. Its transport-ready design (dimensions: 6700×2280×2600mm) and total weight of just 7.6 tons make it easier to move between sites. With an operator-friendly control system, on-site crews can work more efficiently with less fatigue, even on demanding terrains.

The dual-speed rotary system offers fine-tuned control (0–160 r/min in high gear and 0–110 r/min in low gear), making it perfect for operations requiring both precision and productivity. Whether you’re stabilizing mountain slopes, supporting metro tunnels, or working on high-rise foundations, the JCM180 crawler anchor drilling rig machine ensures maximum output with minimal downtime.

Applications:

Slope stabilization for highways and railways

Soil nailing and ground anchors in construction sites

Geotechnical drilling and monitoring

Foundation support in urban infrastructure

Rock and soil reinforcement in mining zones

FAQs:

Q: What engine powers the JCM180 rig?
A: It’s powered by a Cummins QSB5.9-C180, rated at 132kW @ 2200rpm.

Q: What is the maximum slope grade it can handle?
A: It has a gradeability of up to 25°, making it ideal for steep terrain.

Q: What’s the maximum drilling diameter it supports?
A: The clamp supports diameters from 60–219mm, and the max passing diameter is 260mm.

Q: How fast can it feed and retract?
A: Feed rate is up to 8.5 m/min; retraction rate is up to 32/65 m/min depending on the mode.

Q: Is this suitable for both rocky and loose soils?
A: Yes, the machine's high torque and impact work allow it to perform well in varied soil conditions.
