Front Mounted Adjustable hydraulic crawler drilling rig
Description
Our AK50 construction Anchor Drilling rig is used for drilling
anchor holes in deep base pit of high building, anchor and
reinforce side-slope for water conservatory project, water power
station project, railways and highways. Especially used for
drilling anchor holes in high position side-slope protection and
drainage holes.

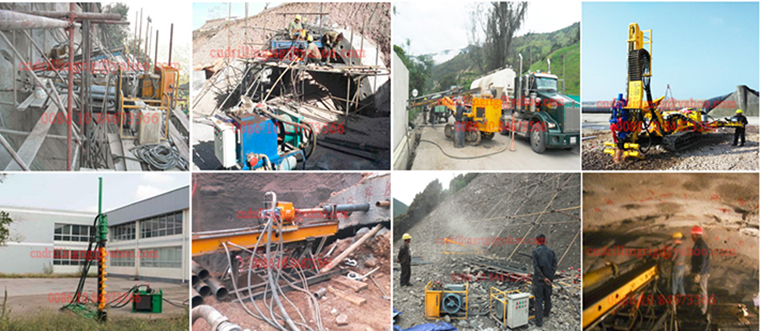

Application
Charactaristic
1. It has great drilling capability, wide range of application ,
rapid drilling speed and high drilling efficiency, as well as
powerful ability of eliminating accident.
2. Extension mechanism in the output spindle of top drive power
head can protect drilling tools effectively. It can increase the
hole inclination angle range and drill elevation angle holes, while
setting the top drive power head and hole top plate toward the
opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used
for adjusting the height of mast front-end, which makes it
convenient to align with hole site.
4. Rig structure is separate group design, it offers good
disassembility , rapid and convenient mount and transport, better
working environment and lower labor strength as well as remote
control and operation.
5. Mast can be fixed on staging immediately without drill frame
with auxiliary parts (horizontal axle and buckles), which makes it
possible for greatly reducing rig weight and fast moving.
6. The hydraulic motor, pump are world famous brand products, other
main assembly are preferentially selected home made reputed
products with high quality. All these ensure the rig has stable
running performance, reliable product quality and long service
life. It has good interchangeability due to the high grade of
standardization and seriesization of wearing parts.
7. Fully hydraulic drive and operation, stepless shift, simple
operation, convenient maintanance and few wearing parts.
8. The rig is suitable for various drilling methods such as carbide
bit drilling, auger drilling, DTH hammer drilling, follow-up casing
drilling, etc.
Specification
Drilling depth | 50m |
Drilling diameter | ¢90 ~ 150 mm |
Drill specifications | ¢ 73 × 1500 mm ¢ 89 × 1500 mm |
Drilling tilt angle | 0 ~ 120 ° |
power head output speed (positive and negative) | 5 ~ 120 rpm |
Rated output torque of the power head | 2000 Nm |
Power head stroke | 1800 mm |
Mast slip stroke | 500 mm |
power head maximum pull force | 30 kN |
Power Head biggest feeding force | 15 kN |
Hydraulic system rated pressure | 20 Mpa |
Motor Type Y180M-4 Power | 18.5 kW |
Host layman size | 3000 × 1000 × 1500 mm |
Rig weight | 1000 kg |
Maximum part weight (excluding motor) | 200 kg
|
If you need more details,please feel free let me know by
email:sales3@rockdrillingrig.com.
