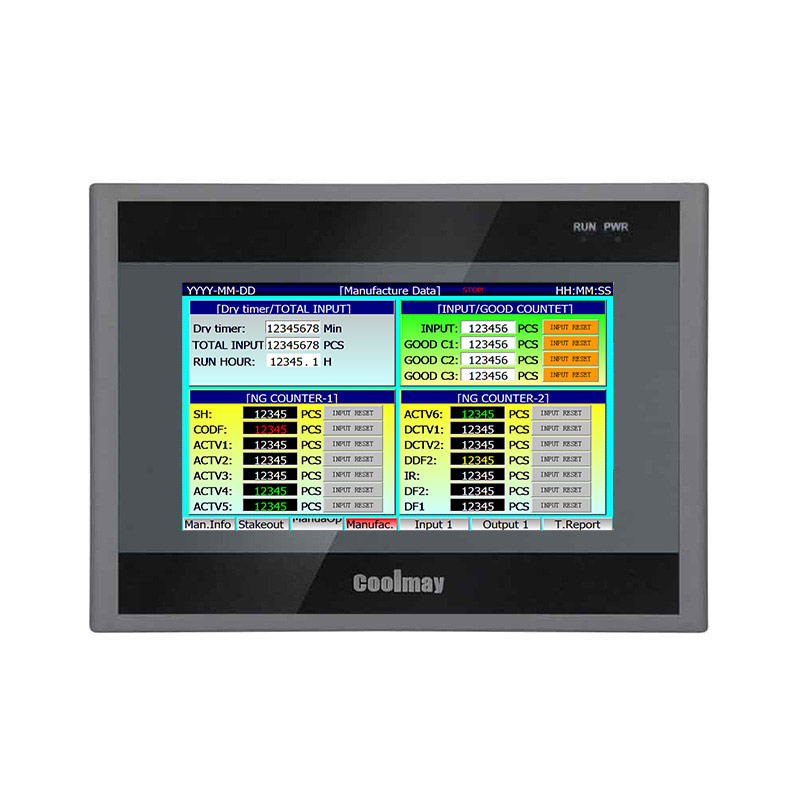

    Coolmay 10'' 10 Inch HMI Touch Screen Modbus Tcp/Ip RS485 RS232 Ethernet HMI Touch Panel

    Ask Lasest Price
    Brand Name : Coolmay
    Model Number : TK8100H
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 15000 Units Per Week
    Delivery Time : 3-8 works days
    • Product Details
    • Company Profile

    Coolmay 10'' 10 Inch HMI Touch Screen Modbus Tcp/Ip RS485 RS232 Ethernet HMI Touch Panel

    10 Inch HMI Touch Screen Modbus Tcp/Ip RS485 RS232 Ethernet HMI Touch Panel HMI Touch Display


    PRODUCT DESCRIPTION

    Feature:


    • Resistive touch panel with high precision and reliability
    • 60,000 TFT true color display,all series support vertical display
    • Supports any-formatstatic images and GIF animation
    • Supports al fonts in Windows
    • Provide a large number of vector libraries and component libraries
    • Button sound and alarm sound can beset by yourself
    • Convenient drawing compon


    ModelTK8100H
    DisplayDisplay10.1" TFT

    Resolution

    (pixels)

    1024*600
    Brightness300cd/m²
    Contrast ratio400:1
    BacklightLED
    Backlight time60,000 hours
    Display color65536 colors
    Touch type4-wire resistive panel
    StorageROMNOR Flash 256MB
    RAM256MB (HMI when stores historical data, optional ferroelectric is required)
    CPU1GHz
    InterfaceInterface

    - Download port: Type-B, RS232, RS485

    - COM ports: RS232, RS485

    ProtocolRS232/RS485 supports MODBUS, free port and common PLC communication protocol
    CalendarYes
    Input Voltage12-24VDC±10%<150mA @ 24VDC
    Consumption145mA/24V
    Protection ClassIP65 (front panel)
    TemperatureAmbient environment: 0~50℃ | Storage environment: -20~70℃
    Humidity20%~90% RH
    CertificationCE
    Software

    CoolMay vCool HMI programming software

    Detailed info. refer to CoolMay TK HMI User Manual



    1. Company Advantages


      1. Production equipment
      Coolmay, which has 21 years of expertise in automation solutions for various industries, has 6000 square meters of production space and 10 production lines, many imported high-end smt placement equipment and testing equipment, and its monthly output can reach 50,000 units.

      2. Certification
      Coolmay has passed the ISO9001 quality management system certification and the national high-tech enterprise certification. Its products have obtained a number of utility model patent certificates and invention patents, and have repeatedly won many awards such as "Technical Innovation Award" and "Innovative Product Award".

      In addition, all Coolmay products have passed CE & RoHS certification.

      3. Raw materials and accessories
      The raw materials and parts used by Coolmay are the best: the CPU adopts imported 32-bit industrial-grade chips, the PCB board with three anti-paint protection, the relays and transistors imported from the United States, and the input and output with photoelectric isolation protection.

      4. Good service
      Coolmay is an original manufacturer of OEM&ODM PLC and HMI, which can meet various needs of customers. All our products have undergone 5-step strict quality control and 48 hours of aging. The products are of high quality, with a guarantee of up to 18 months and a simple return policy.


      Provide Free Technical Support, learning tutorials and video tutorials.
      Provide Free HMI programming Software and PLC programming software.
