Variable Frequency Air Cooled Chiller Portable Chiller Energy Saving 10 HP

    Buy cheap Variable Frequency Air Cooled Chiller Portable Chiller Energy Saving 10 HP from wholesalers

    Buy cheap Variable Frequency Air Cooled Chiller Portable Chiller Energy Saving 10 HP from wholesalers
    • Buy cheap Variable Frequency Air Cooled Chiller Portable Chiller Energy Saving 10 HP from wholesalers

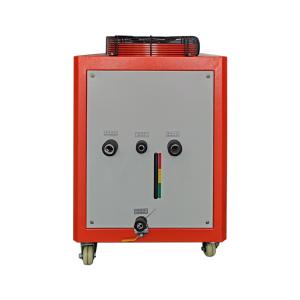

    Variable Frequency Air Cooled Chiller Portable Chiller Energy Saving 10 HP

    Ask Lasest Price
    Brand Name : BZY
    Model Number : BZY-03A
    Certification : ISO9001, CE
    Price : Discuss
    Payment Terms : L/C,T/T
    Supply Ability : 500 units per month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Variable Frequency Air Cooled Chiller Portable Chiller Energy Saving 10 HP

    BZY-portable 10HP Energy-saving, Variable Frequency Air-cooled Chiller

    Air cooled chillers absorb heat from process water, and the heat is then transferred to the air around the chiller unit. This type of chiller system is generally used in applications where the additional heat it discharges is not a factor. In fact, it’s often practical to use the excess heat to warm a plant during the winter, thus providing additional cost savings. Overall, air cooled industrial chillers are known for their high cooling capacity and adaptability in various industries, providing a reliable cooling process for demanding applications.


    To ensure high product quality, easy user operation and maintenance, Weeseng leverages industrially recognized components for our air-cooled chillers which are designed to be compact and take up minimal floor space – all critical electrical and refrigeration components (air-cooled condenser, heat exchanger, water pump, control panel, water tank etc.) are integrated into the chiller unit.


    Industrial Chiller Specification:


    Model

    Item

    BZY-10A

    Nominal cooling capacity

    Kcal/h25710
    kw30
    Power supply3PH~380V/50HZ 三相~380V/50HZ
    RefrigerantTypeR22/R407C/R134A/R410A/R404A
    Type of controlExpansion valve
    CompressorTypeHermetic scroll type
    Power (HP)5*2
    CondenserType

    Finned copper tube+low noise outer rotor fan

    Power(kw)0.24*2
    Cooling air flow(m3 /h)11160
    EvaporatorTypeWater tank type
    Chilled water flow(m3 /h)12
    Water Tank Capacity150L
    Inlet/outlet pipe chiller(inch)11/2"
    Water pumpPower(kw)0.75
    Lift(m)20
    Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
    Net weightKG450
    Machine size(mm)mm1610*735*1390

    Features:

    • High efficiency and energy saving, the COP can reach 4.0.

    • Compact size, small occupied area.

    • 304 stainless steel evaporator, longer service life

    • 30kw of cooling capacity, customization available.

    Product Highlights:


    air-cooled chillers all use compressors from internationally renowned brands, which are 20-30% more energy efficient than reciprocating compressors. They have the advantages of stable and reliable operation, high efficiency and low failure, low vibration and noise, easy maintenance, and a long service life.


    The air-cooled chiller uses a 304 stainless steel water tank evaporator. In the refrigeration system, the refrigerant evaporates in the heat exchange tube and the water flows on the side of the water tank, which improves the heat exchange efficiency. In addition, in order to maintain a stable working temperature, the evaporator shell is covered with insulation material and the heat exchange tube uses a high-efficiency seamless copper tube. The inner groove of the tube forms an internal threaded fin to increase the heat exchange area with the refrigerant. Through this technology, the heat transfer area is doubled, greatly improving the heat transfer efficiency.


    FAQ:

    Q: Can The air-cooled chiller Be Customized ?

    A: Of course, we will carefully customize the air cooling chiller according to your requirements, and then conduct in-depth analysis.Finally, we promise to meet your expectations for this customization.

    Q: How To Guarantee The Quality Of water cooling chiller ?

    A: We have our own factory. We are experts in industrial chiller and have been operating for 20 years. We always adhere to the policy of "high quality, low price and all-round service".

    Q: What About the water cooling chiller Warranty ?

    A: If the parts of the industrial chiller fail or are damaged (except the worn parts due to quality problems) within one year from the factory, our company will provide these parts free of charge.
