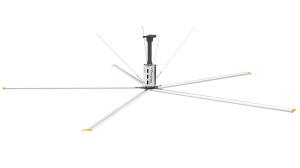

7.3m Gear Reducer Type Industrial Ceiling Fan For Traffic Stations
Product Description:
1.HVLS FAN is a high-volume ,low speed ceiling fan greater than
traditional industrial fan .
2.Using large diameter baldes to moves a lots of air from all
directions to the ground .Forming a air layer from the ground ,then
move horizontal to all around ,facilitating the air circulation of
the whole space.The large coverage area ,low spped ,low energy
,strong wind , increased air circulation replaces hot ,humid air
,create a convective,nature,comfortable wind . .
Features:
- High Volume, Low Speed
- Patented Double Outer Bearing Safety System
- Up to 16 safety protection devices for anti-falling
- Energy-saving for large scale premises
Technical Parameters:
DIAMETER | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | BFFCA38 | BFFCA50 | BFFCA62 | BFFCA73 |
AIR VOLUME | 11050m³/min | 12050m³/min | 13100m³/min | 14060m³/min |
MAXIMUM SPEED | 95RPM | 75RPM | 60RPM | 55RPM |
WEIGHT | 68Kg | 90Kg | 110Kg | 125Kg |
MOTOR POWER | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
FULL LOAD CURRENT | 2.4Amps/380v 4.2Amps/220v | 2.4Amps/380v 4.2Amps/220v | 3.5Amps/380v 6.1Amps/220v | 3.5Amps/380v 6.1Amps/220v |
Applications:
✔ Large warehouse, cold chain center: prevent goods from mildew, improve the working environment of
employees
✔ Automotive, electronics, textile workshop: disperse welding smoke, dust, improve air quality
✔ Stadiums, airports, shopping malls: Solve the problem of hot and stuffy, reduce reliance on air
conditioning
✔ Greenhouse, farm: adjust temperature and humidity, promote air circulation, reduce
poultry heat stress
Basic Configuration (Model BFFCA73 GEARBOX SERIES) :
Support and Services:
The Product Technical Support and Services for the PMSM Series HVLS
Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently
and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered
under the product warranty.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with
ample cushioning material to prevent any damage during transit, and
a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Do you accept OEM?
A: Yes, but we have MOQ requirement
Q: What is your delivery time?A: Usually we have stock, delivery time within 7 working days.If there is customized requirement, time is negotiable.Q: What other services can you provide?A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.Accepted payment type: T/T, L/C;
