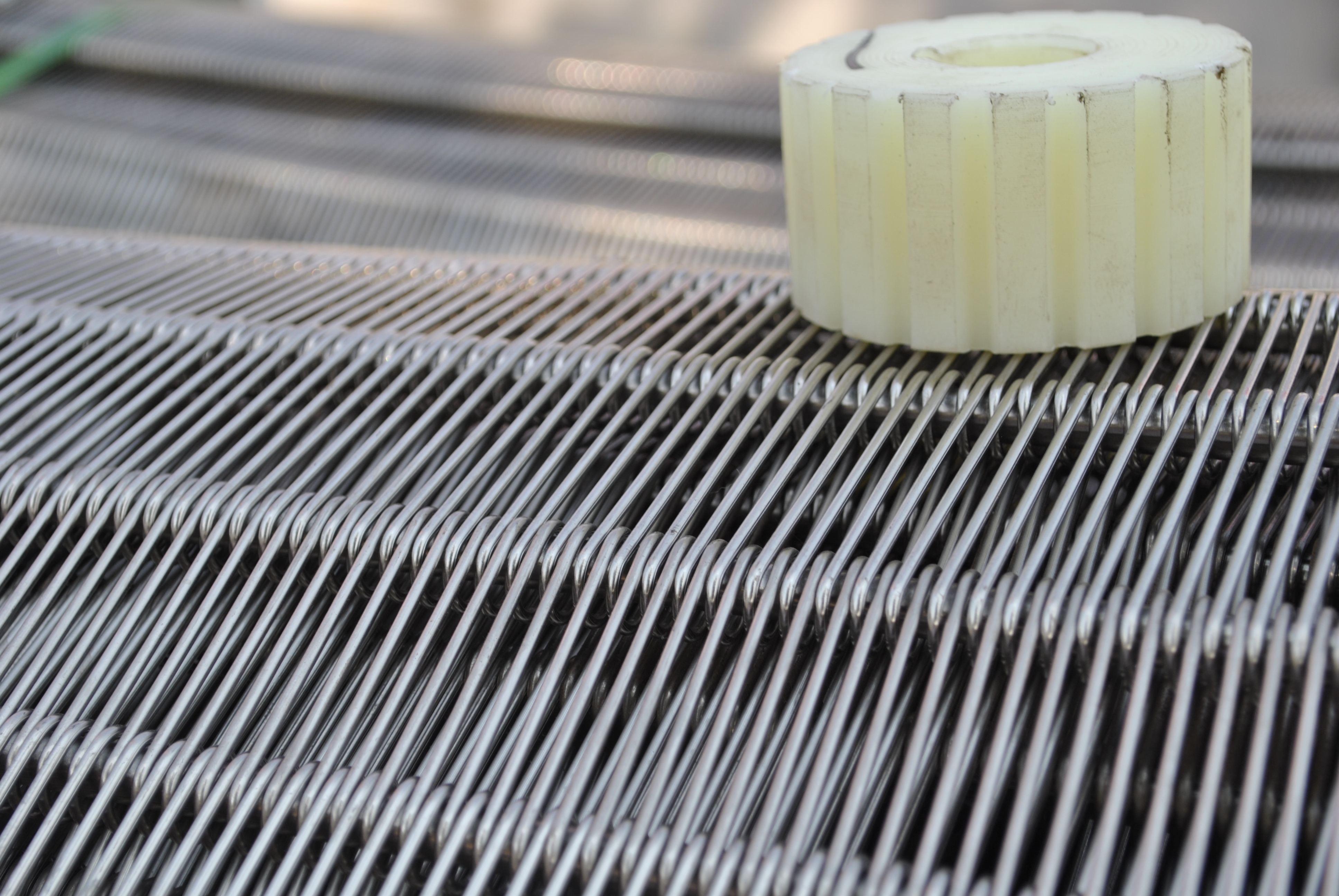

Heat Resistant Wire Mesh Chain Eye Link Mesh Conveyor Belt
metal conveyor belt discription
Eye link wire mesh conveyor belts are made of round wire made of
glasses shape and then tied by the shaft made of the mesh belt,
mesh belt weight is relatively light; processing of liquid and gas
can be easily through; easy to clean; use sprocket or drum drive.
It will not produce slider buckle phenomenon, it can use a smaller
drum diameter, which can ensure good operation easy to repair.
The unique features of eye link conveyor belts offer numerous
benefits that increase productivity, help contain costs, and
improve your overall product quality.
metal conveyor belt specification
Eyelink Pitch | String Shaft Diameter | Pitch | Wire Diameter | Weight(kg/m2) |
6mm | 63.5mm | 13.8mm | 3.0mm | 32.9 |
5.2mm | 63.5mm | 12.0mm | 2.6mm | 32.9 |
4.6mm | 50.8mm | 8.0mm | 2.3mm | 24.2 |
4.0mm | 50.8mm | 10.0mm | 2.0mm | 27.6 |
3.2mm | 50.8mm | 8.0mm | 1.6mm | 17.1 |
5.2mm | 50mm | 6.0mm | 2.6mm | 21.4 |
4mm | 50mm | 6.0mm | 2.0mm | 18 |
5.2mm | 50mm | 5.0mm | 2.6mm | 18.8 |
5.2mm | 38.1mm | 7.0mm | 2.6mm | 29.2 |
4mm | 38.1mm | 8.0mm | 2.0mm | 26.9 |
3.2mm | 38.1mm | 6.0mm | 1.6mm | 17.4 |
2.4mm | 38.1mm | 8.0mm | 1.2mm | 18.3 |
4mm | 31.75mm | 7.0mm | 2.0mm | 27.7 |
2.4mm | 31.75mm | 5.0mm | 1.2mm | 13.2 |
2.4mm | 25.4mm | 6.0mm | 2.0mm | 25.5 |
2.4mm | 25.4mm | 5.0mm | 1.2mm | 15.6 |
4mm | 25mm | 5.0mm | 2.0mm | 22.2 |
metal conveyor belt advantage
Strong and robust
Flat and stable surface
Open airflow
Flexible design
Positively driven; no slip
Perfectly straight run
One level belt
Easy to clean
Low contact surface
metal conveyor belt application
Eye link wire mesh conveyor belt ismainly used in quick-drying
equipment, casting equipment, quenching tank, dewatering
equipment, sterilization equipment, drying equipment, stainless
steel blast equipment, filtration equipment, packaging
equipment,baking furnace, cooling equipment, blanching equipment,
storage equipment, shrink packaging Equipment, cleaning equipment
and so on.
![]() |
