Stainless Steel Metal 304 316 Chain Plate Conveyor Belt For Waste
Treatment
Chain Plate Conveyor Belt Description
Metal chain plate conveyor belts, also called hinged steel belting,
plate link conveyor belts, chain plates are a type of conveying
device made of steel plates and hinge pins or connection rods.
Compared with wire belts, the metal plate conveyor belt can supply
larger contacting area, flat and smooth surface for drying, sorting
and conveying. We can supply you all types and specs of metal plate
conveyor belt, browse the following types and decide which one is
suitable for you.
Plate Link Conveyor Belt is very strong, driven by stainless steel
chain, made of stainless steel plate, and very suited to heavy load
applications, running smoothly in the conveying process, easy to
install and replace, and long in service life. Its self-supporting structure makes it be used over large widths
without any support.
We can not only provide right belts, but also provide matching
sprockets and other components.
Chain Plate Conveyor Belt Feature
Smooth and burr-free. The finish is smooth and burr-free for quick
and easy cleaning, maximizing production.
High temperature resistance. The stainless steel material can
maintain the perfect performance even in the extremely high or low
temperature applications.
Corrosion and rust resistance. The stainless steel material and
galvanized steel have excellent chemical stability, which are
corrosion and rust resistance.
Durable and long service life. The high quality material and rigid
structure can ensure the long lifespan of the flexible rod conveyor
belt.
Easy to install and replace. The flexible rod conveyor belt is
lightweight and easy to install and replace.
U-shaped links can be added on the center of conveyor belt. To
decrease turning radii and improve conveying efficiency, the
U-shaped conveyor belt are added onto the center of the conveyor
belt.
Side guards are available. Side guards can be added on both side of
the conveyor belt to prevent products from spillage.
Chain Plate Conveyor Belt Applications
Chain plate conveyor belts are widely used in various industries
due to their versatility and durability. Here are some common
applications:
● Food Processing: Used in the transport of packaged goods, meat,
poultry, and baked products, ensuring hygiene and
easy cleaning.
● Beverage Industry: Ideal for bottling lines, they handle both
empty and filled bottles efficiently, providing
smooth transitions.
● Cold Chain Logistics: Suitable for refrigerated environments,
transporting perishable goods maintaining temperature control.
Plate belt mesh is the lifeline of uninterrupted product flow
across diverse industries! Embraced for its remarkable versatility,
it's the go-to solution across sectors such as beverages, aluminum
can production, pharmaceuticals, cosmetics, and food
transportation.
Chain Plate Conveyor Belt Specification
Perforated plate is combined with continuously perforated chain
plates, the holes on the surface supply excellent heat dissipation
performance for conveying products, such as biscuits, breads and
other hot products. Perforations allow the opening in the belt to
vary from zero to very large.
Please refer to the following drawing and tell us the size you
need.
| Product Name | Stainless Steel Perforated Plate Conveyor Belt Transporting Food |
| Material | Stainless steel, carbon steel or as your request |
| Plate Thickness | 0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 5mm, etc Customers can choose as per load capacity requirements |
| Width | 200 mm to 4000 mm, there has limitation for laser cutting machine,
so max width we can process at present is 4000mm |
Supporting roller | Supporting rollers can be added on bottom side of the conveyor belt
to support more load capacity ( for width of the conveyor belt is
big, we suggest adding this) |
Material Availability
| Material | Maximum Operating Temperature °C |
| Carbon Steel | 550 |
| Galvanised Mild Steel | 400 |
| Chrome Molybdenum | 700 |
| 304 Stainless Steel | 750 |
| 321 Stainless Steel | 750 |
| 316 Stainless Steel | 800 |
| 316L Stainless Steel | 800 |
| 314 Stainless Steel | 1120 |

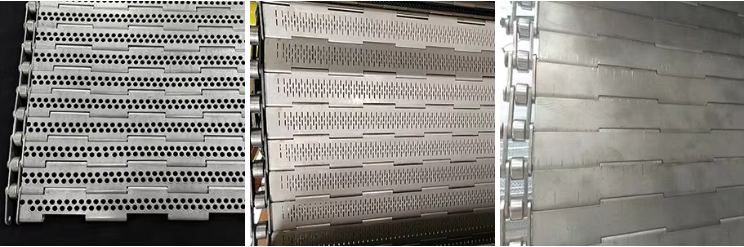

Belt Types
● Chain plate conveyor belt with round holes
● Chain plate conveyor belt with slot holes
● Chain plate conveyor belt with non-perforations
Different types of baffle chain plate conveyor belts
* Chain conveyor belt without baffles
* Chain conveyor belt with baffles in the middle
* Chain conveyor belt with baffles in the middle and on the sides
Chain Type
Contact us
FAQ
Q1. Are you a factory or trading company?
A: We are both factory and trade company
Q2. How to place an order?
A: Once you find the US, you can place an order on Alibaba or
signed a contract with the US.30% deposit is charged before
customized fabric are manufactured
Q3. What about payment terms?
A: T/T, L/C, Western Union, Escrow, Paypal, and some other payment
terms are accepted.
Q4. What about the shipping date?
A: The shipping date would be in 15 days after contract confirmed,
except customized fabric.
