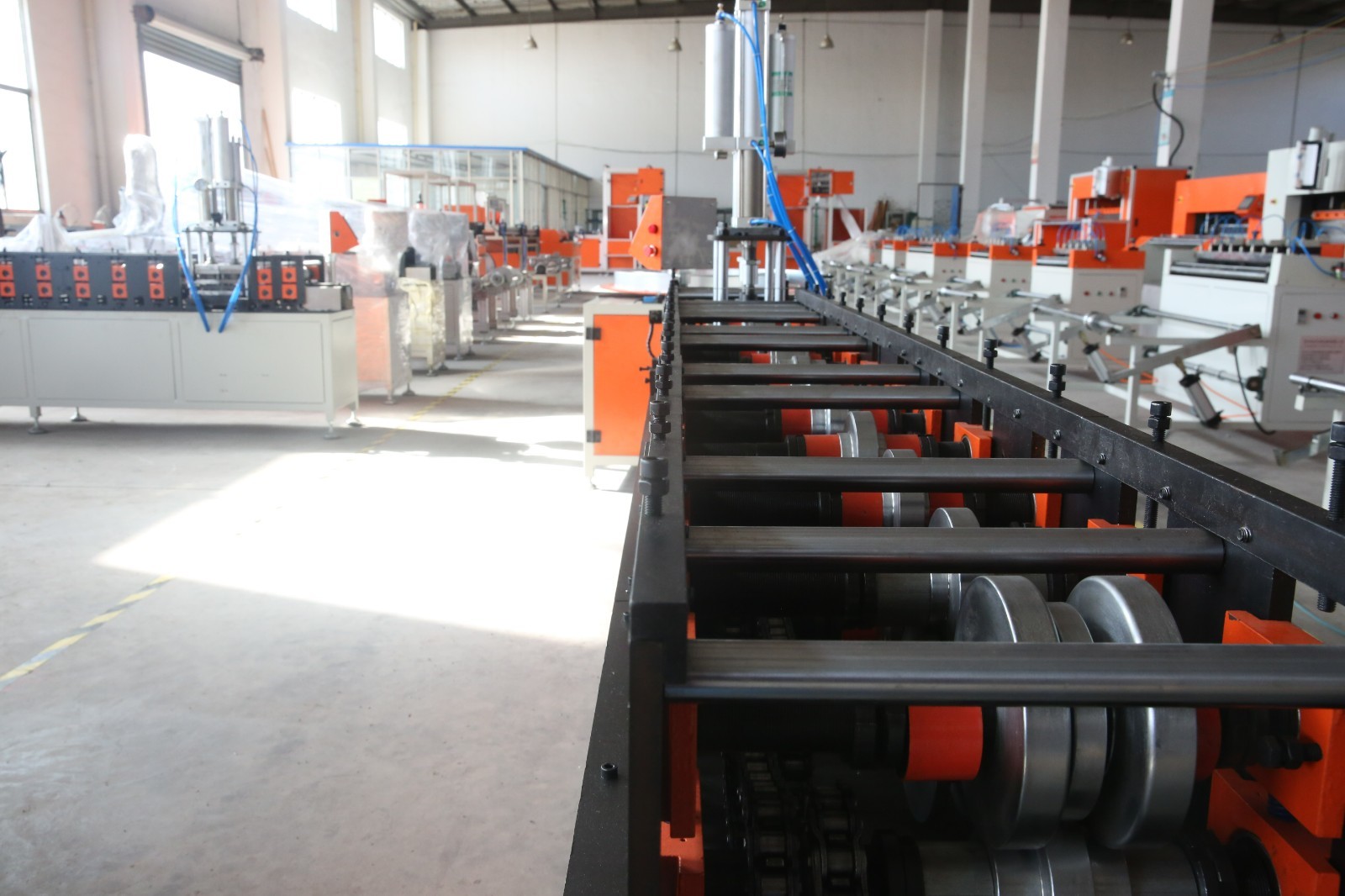

Pocket Filter Inner Frame Clinching Machine
Technical Parameter
Bag Thickness | ≤10mm |
Capacity | 30-40 times/min |
Worker | 1-2 |
Power | 3KW |
Voltage | 380V/50HZ |
Weight | 640KG |
Features:
1. Pocket Filter Inner Frame Forming Machine is specialized equipment
designed for manufacturing the internal structural frames of pocket
filters. These machines play a critical role in air purification,
HVAC systems, and industrial filtration by shaping raw materials
into precise, durable inner frames that support filter media and
ensure optimal performance.
2. The inner frame clamping production line is composed of an
automatic filter bag frame transfer device, a two-way module, a
clamping mechanism, and three parts. Place the bag frame on the
automatic transmission device, and accurately transmit the bag
frame to the position that needs to be clamped through the stepping
motor in the transmission device;
3. then press down the oil cylinder to drive the lever to compress
the clip, and automatically send out the station after the
compression, Fully automatic, and can also be adjusted according to
the width of the filter frame. The inner frame clamping machine is
the first choice for clamping the inner frame of the air cloth
filter bag.
4. The inner frame clamping production line is powered by
electricity and compressed air.
- Clinching Technology: Uses hydraulic or servo-driven force to
deform overlapping metal or composite layers at the joint area.
- Die Design: Customized dies create interlocking tabs or
indentations that fuse materials together, forming a robust
mechanical bond.
- Pressure Control: Precisely regulated pressure ensures consistent
joint quality and prevents material damage.
1. Clinching Unit:
- Upper and lower dies for forming interlocks.
- Hydraulic cylinder for applying force (typically 5–20 tons).
2. Material Handling System:
- Automated feeding of pre-cut inner frame components (e.g.,
galvanized steel, aluminum).
- Fixtures for accurate positioning during clinching.
3. Control Panel:
- PLC-based interface for adjusting pressure, stroke depth, and
cycle time.
- Touch screen for real-time monitoring and parameter changes.
4. Safety Features:
- Emergency stop buttons and sensors to protect operators.
Performance Advantages
- Cost-Effective: Eliminates the need for rivets or welding
consumables.
- High Strength: Clinched joints withstand vibrations and pressure
in harsh environments.
- Speed: Rapid cycle times (1–5 seconds per joint) for mass
production.
- Versatility: Adapts to various frame sizes, shapes, and material
thicknesses (0.5–3mm).
- Clean Finish: No protrusions or sharp edges, reducing risks in
filter assembly.
Applications
- Air Filtration: HVAC systems, dust collectors, and cleanrooms.
- Liquid Filtration: Water treatment, chemical processing, and oil
refining.
- Industrial Machinery: Filters for compressors, engines, and
pneumatic systems.
Technical Specifications
- Max. Material Thickness: 0.5mm
- Cycle Time: 1–5 seconds per joint.
- Power Supply: 220V/380V, 50/60Hz.
This machine is critical for producing durable, leak-free bag
filter inner frames, ensuring optimal filtration performance and
extended service life.
