32bit CPU HMI And PLC In One High Speed Counting Pulse 480KHz
Hot Sale Cost Save SCADA System HMI PLC All in One IP65 Touch
Screen PT100 0-10V PLC Controller
Packing List
- 1*HMI PLC All-in-One
- 1*Free HMI Downloading cable
- 1*Free PLC Progamming cable
Paramaters of HMI Part:
size of HMI: 7 inch
cutout size: 217*154mm
Resoution:800*480
RAM:NOR Flash 16MB
ROM:64MB
CPU:32bit CPU 408MHz
com ports:1*type B download port, 1*RS232
Software: mView
Paramters of PLC Part:
Digital I/O: Max 30DI/30DO(Max 28R)
I/O level: default NPN input and output, MR can be customized PNP
input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 16AI/8AO
AI(Optional):
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO(Optional):
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus
voltage)
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2/ GX developer 8.86
We are committed to providing you with a variety of solutions
(Communication Port, Analog, Temperature,Weighing, etc.)
Model | QM3G-70KFH |
Dimension | 226*163*35.6mm |
Cutout size | |
| |
| HMI |
Feature | 60K-color resistive touch screen, supports portrait display |
Type | 7.0"TFT |
Display size | 154*87mm |
| 800*480 |
RAM | NOR Flash 16MB |
ROM | 64MB |
| CPU | 32bit CPU 408MHz |

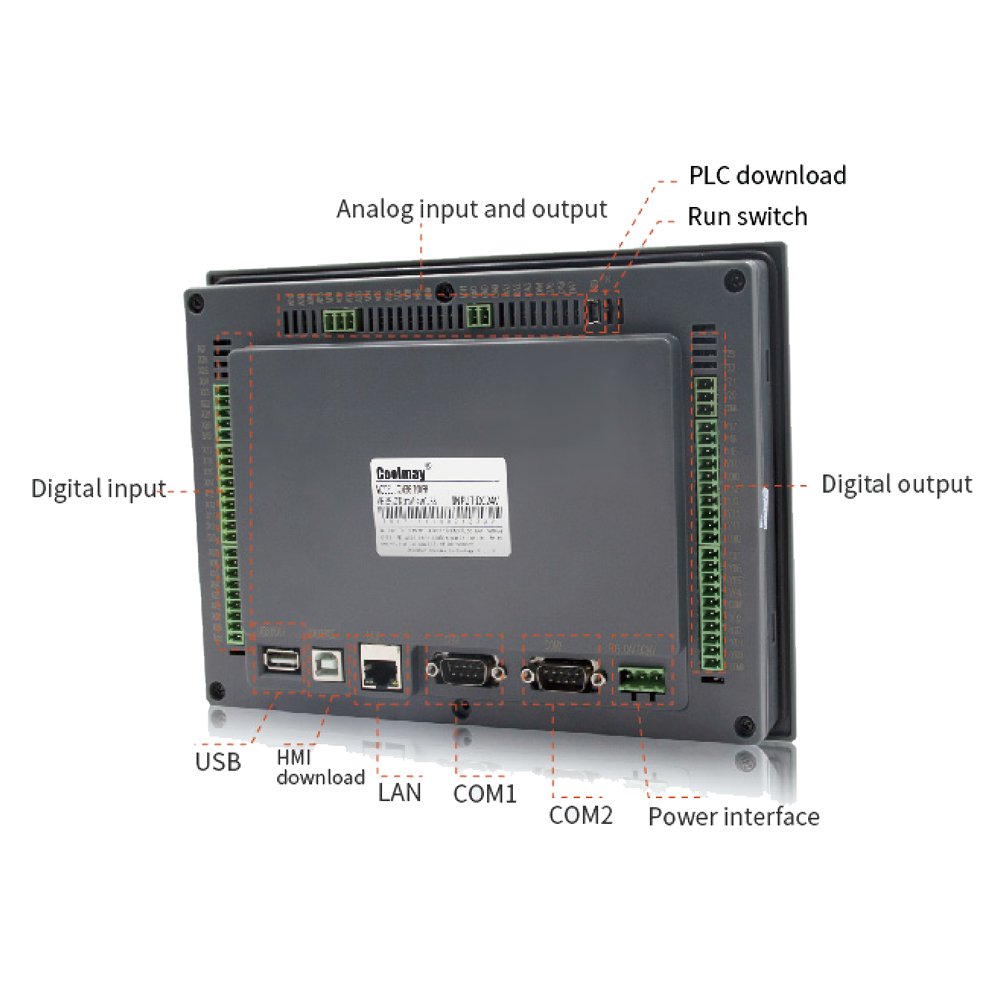

Default | Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 |
| Optional com port | 1 RS485 (changed from default RS232) |
| software | Coolmay mView HMI Programming Software |
| PLC |
I/O | Max 30DI/30DO (max 28MR) |
I/O level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay
output: Normally open dry contact |
DO type | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
Default programming port | 1 Mini USB, 1 RS232 |
Optional COM port | 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232 port) |
CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232
port) |
| Max 16AI/8AO |
AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) |
Software | Compatible with Mitsubishi GX Developer 8.86 and WORKS 2 |
Real Application
