1.8" Serial 128X160 TFT Display Module For Arduino
TFT Display Module Details:
1. Support various MCU in-line without any wiring
2. Integrated voltage regulator IC, support 5V or 3.3V power supply
3. On-board level conversion scheme, truly compatible with 5V/3.3V
IO level, supporting various microcontroller IO connections
4. Integrated SD card expansion circuit,
5. Reserve SPI FLASH font circuit to facilitate extended
application
Product Features:
Display color: 16BIT RGB 65K color
Size: 1.8(inch)
Type: TFT
Driver chip: ST7735S
Resolution: 128*160 (Pixel)
Module interface: 4-wire SPI interface
Backlight: 2 White Led
Effective display area: 28.03x35.04 (mm)
Module PCB size: 38.30x62.48 (mm)
Working temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working voltage: 5V/3.3V
Power consumption: about 90mw

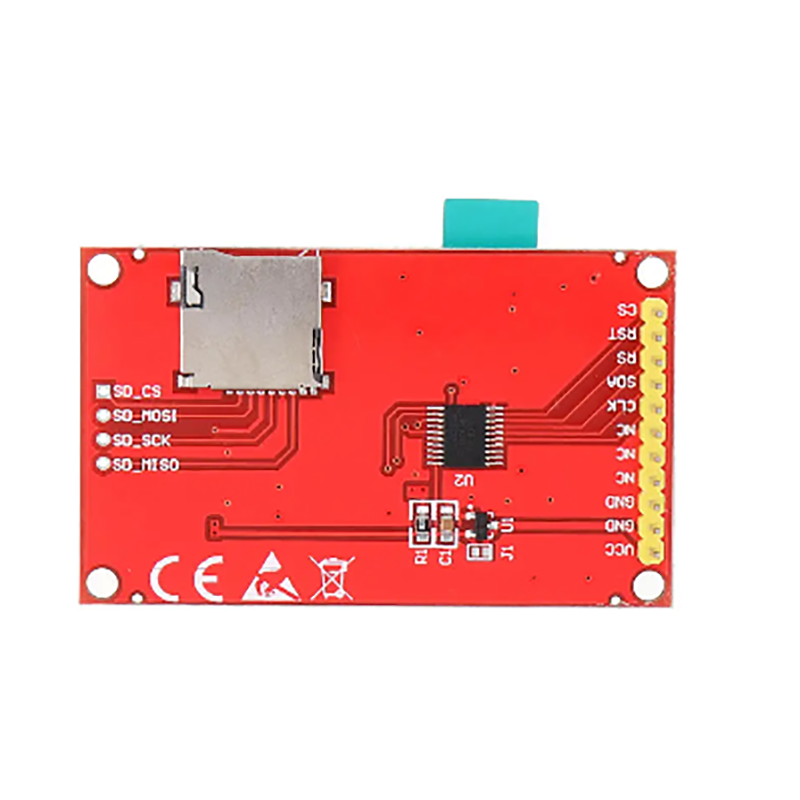

Product Pictures:
About our company:
2005, Established in Shenzhen, Guangdong, China, engaged in
providing all kinds of diode, audino, integrated circuits, and
electronic components.
2006-2008, Invested in Single Chip Microcomputer plant, specialized
in manufacturing all kinds of sensor modules and power supply
modules.
2009-2010, Started to manufacture Arduno-related modules, sensor
modules, single development boards, etc.
2011-2012, Mainly provided various kinds of Arduno-related boards
and shields, such as UNO R3, Mega, DUE, W5100 etc. At the same
time, invested in the factory of 3D printer spare parts.
2013-2014, Took Arduno supplies as leading business,Cooperating
with DIY factory, providing Ardu-related Robot products such as
servo, control board cables and so on.
2015, Striving to develop overseas business, lower, accepting small
batch orders. Investing in 3D printer factory and expanding product
offerings.
