    HC-SR04 Module for Arduino , Ultrasonic Sensor Distance Measuring Transducer Sensor

    HC-SR04 Ultrasonic Sensor Distance Measuring Transducer Sensor


    Description
    porduct name

    HC-SR04 Ultrasonic Sensor Distance Measuring Transducer Sensor

    Main Features
    This module performance is stable, measure the distance accurately. performance nearly the same as SRF05, SRF02 SRF05, SRF02 ultrasonic distance measuring module and other comparable. Module High precision, blind spots (2cm) super close
    specifications
    Voltage: DC 5V
    Static current: less than 2mA
    Electrical level output: 5V high
    Electrical level output: at the end of 0V
    Induction angle: not more than 15 degrees
    Detection distance: 2cm-450cm
    High precision: 2mm
    Wiring: VCC, trig (control side), echo (receiving end), GND
    Module worksusing IO trigger distance, the high signal to at least 10us
    module automatically sends eight 40khz square wave, automatically detects whether a signal return;
    a signal back, through the IO output a high electrical level, high electrical level duration is: the ultrasound time from launch to return. Test distance = (time of the high electrical level * speed of sound (340M / S)) / 2;
    Product weight10g

    Package

    Contents

    1 x HC-SR04 Ultrasonic Sensor

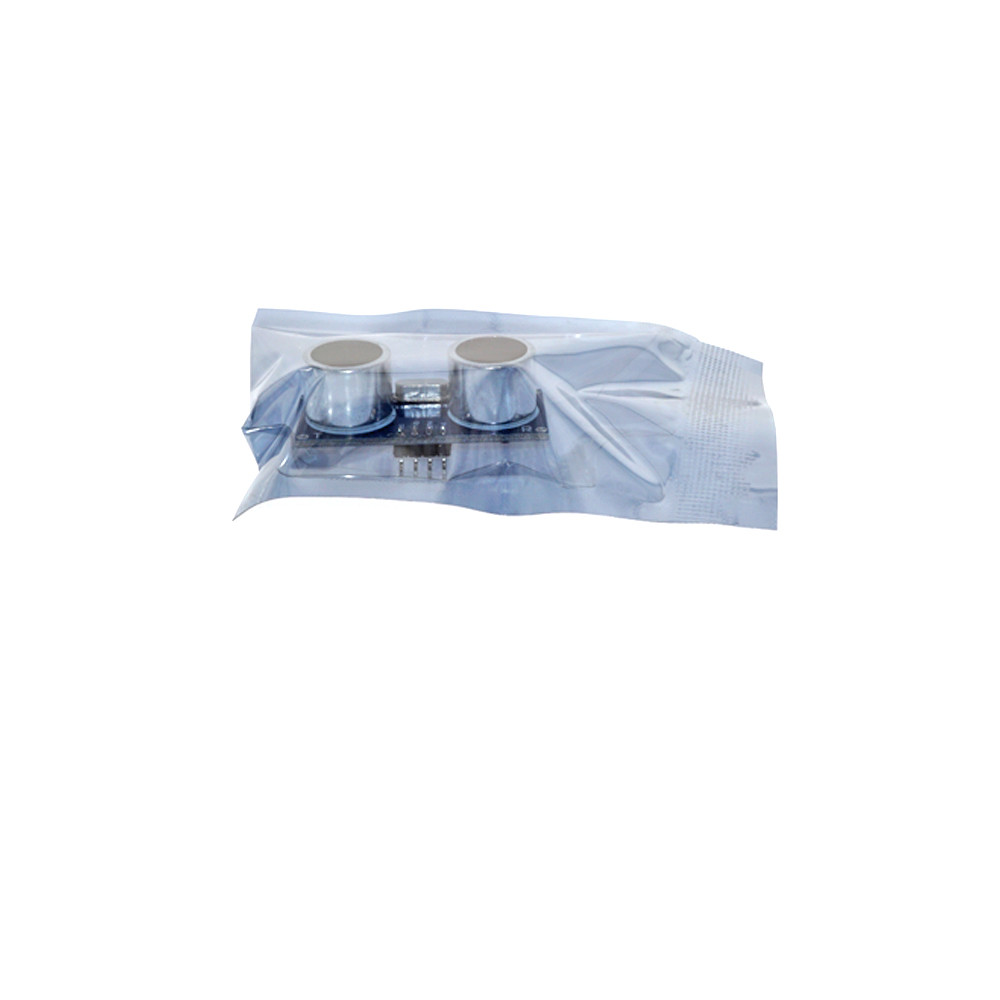

    packageDifferent package at optional:
    1. Retailing Package:Anti-static bag
    2. Bulking Packing:Plastic Bag Package
    3. Retailing Box package design according to your requirement( Order > 3000PCS)

    Competitive

    Advantages

    1. Convenient & Friendly Customer Service.
    2. Low Prices Direct From Factory Suppliers.
    3. Fast Delivery Around the World.
    4. High Quality With Global Standards.
    5. 1 Year Factory Warranty.
    6. Safe Shipping Way and Payment
    Warm Note

    Welcome ODM/OEM orders we are professional

    to improve,design,process,manufacture products

    according to your requirement .


    Photos:
