Advantage:
◆ Upper computer programming software compatible with Works 2/GX
Developer8.86 (supports Ladder diagram and SFC language, does not
support structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing
speed.
◆ Military level 32 bit CPU adopted, which is faster and more
adapted to industrial environment of high electromagnetic
interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit
encryption, 12345678 as password can thoroughly prevent reading of
ladder logic program.
◆ Clock supported, rechargeable battery adopted.
◆ Default with 1 HMI download port, 2 PLC programming ports (RS232
/ Type-C), and one USB port.
◆ Convenient wiring. All wiring terminals adopt 3.81 pitch
pluggable terminals, which is convenient for customers to use.
◆ Flexible use. More specifications and batches can be customized
according to customer requirements.
◆ 32K program capacity, 32K retentive register, support interrupt,
linear arc interpolation ,PID auto-tuning, high powerful.
◆ The PLC is compatible with Mitsubishi programming software, and
the HMI uses TK series human-machine interface programming software
mView.

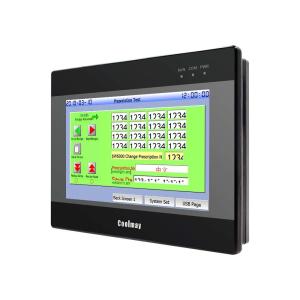

The analog input precision of Coolmay QM3G series HMI/PLC
all-in-one machine is 12 digits. When using it, you can directly
read the register value corresponding to each analog quantity.
Ambient temperature, only for thermocouple type.
Sampling of analog input:
Number of filter cycles=(R23600~R23615)*PLC scan time, if R23600=1,
one PLC scan cycle will sample once, and the value in the first
channel analog input will be changed once. The larger the value of
R23600~R23615 is set, the more stable the result is.
R23600~R23615 are the number of filtering cycles, the default is
100 (range 2~20000), the data cannot be less than or equal to 0;
D8073 is the smoothing filter coefficient of all analog inputs, the
setting range is 0~999.
